6.6 Extras
Intelligent Operator Panel (IOP)
76 Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
4.

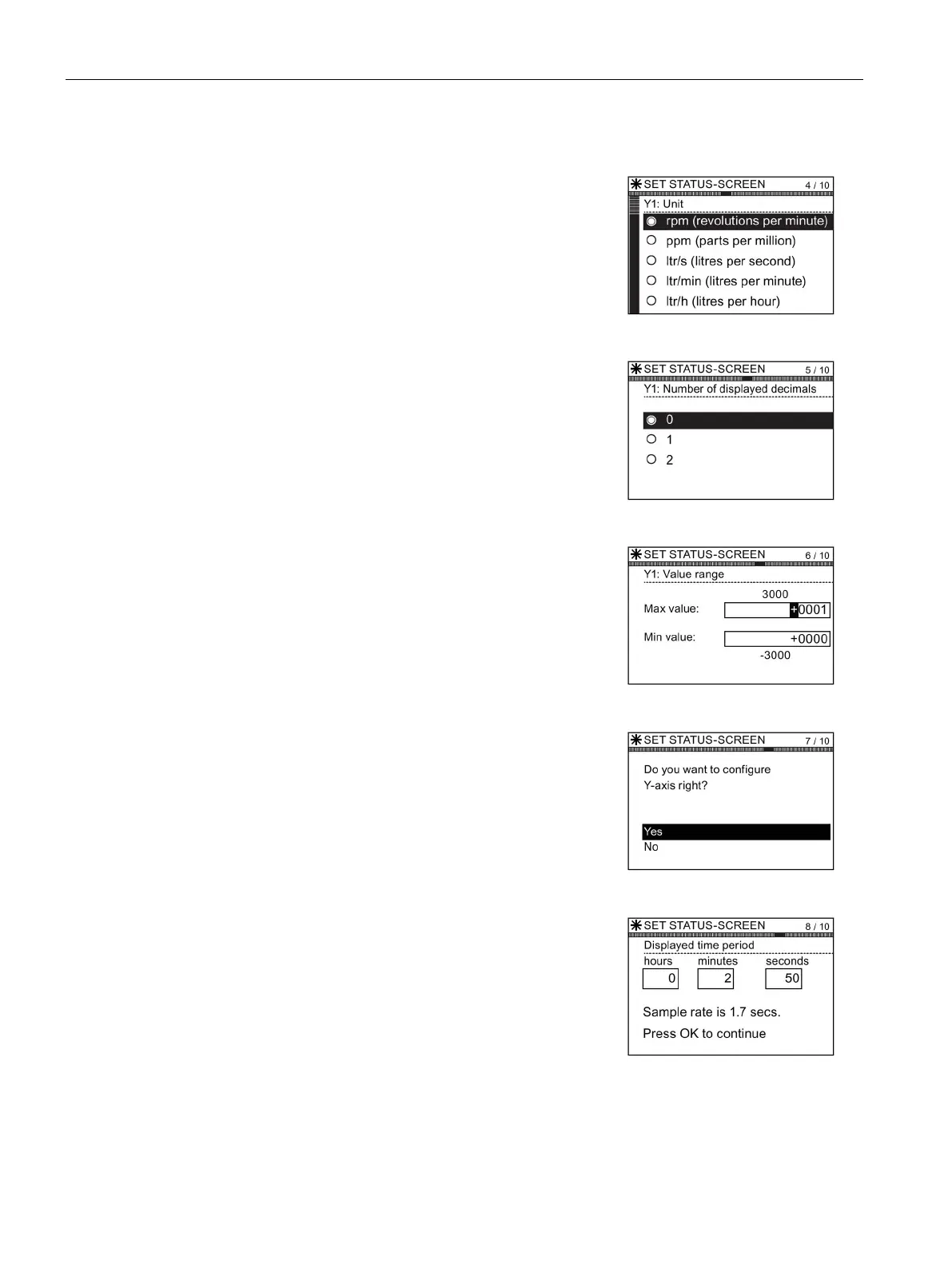

Select the required units of measure to be displayed
on the status screen.
5.
select the required number of decimal places to be
displayed for the choosen units of measure.
6.
Set the range value of the Y1 axis.
7.
If required, the other axis (Y
-axis right) can be config-
ured.
8.
Set the required time period for the displayed Trend
View.
