Siemens SINUMERIK 810M - Page 139

3 Operating Sequences 11.90

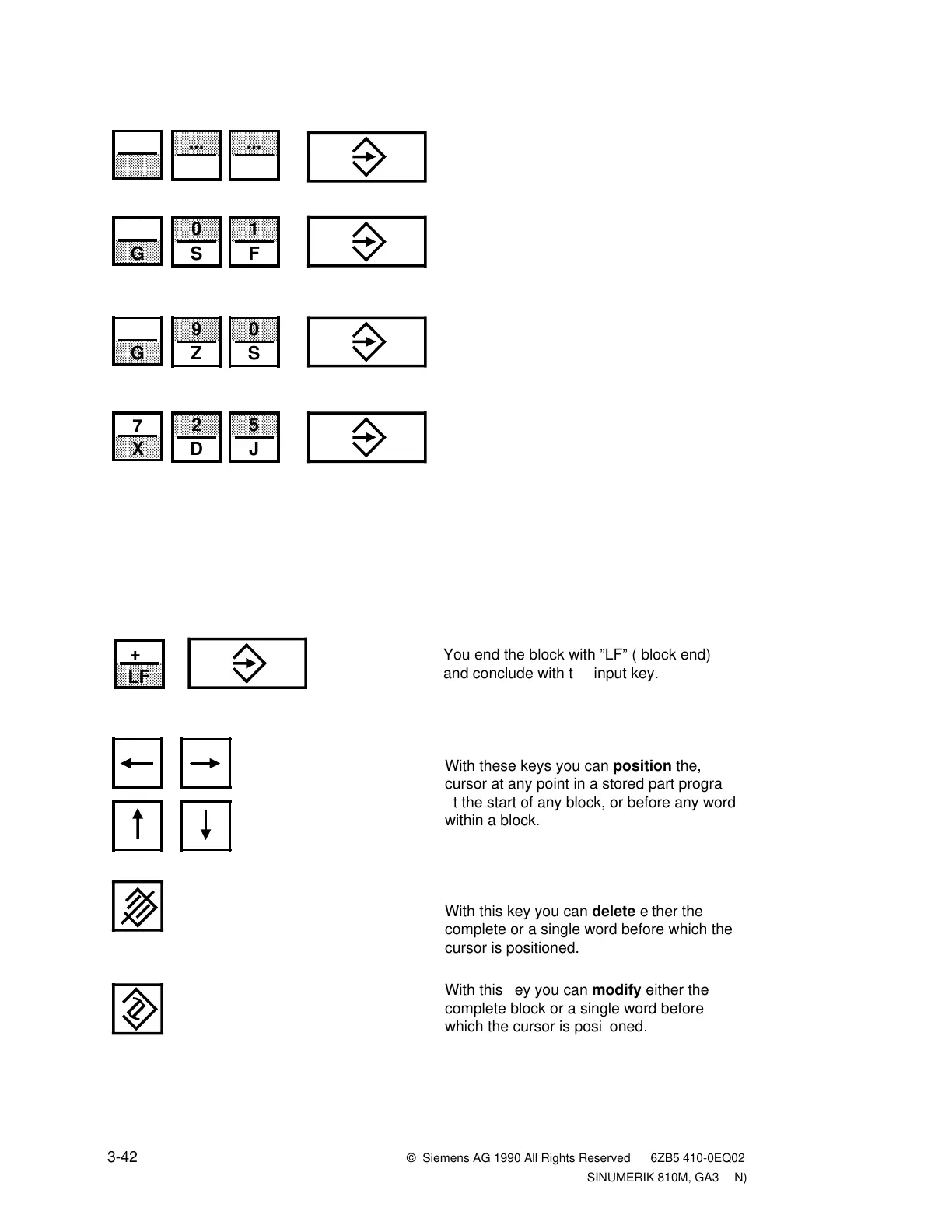

3.1.10 Program input
Example: Entering an individual block.
Enter the block number ”N ... ” using the
numerical keys, and conclude with the input
key.
Enter the first word - in the example
”G 01”- and conclude with the input key.
Enter the second word
- in the example ”G 90” for ”Absolute” -
and conclude with the input key.
Enter a target coordinate - in the example
”X 25” - and conclude with the input key.
.
.
.
etc.
.
.
.
etc.
• • •
