11.90 2 Operation
2.3.5 Branching to operating functions within an operating mode
2.3.5 Branching to operating functions within an operating mode
Depending on the mode you have selected, you will be offered a ”Basic softkey menu” of
operating functions in the menu display (See Section 2.1.1.1) on the CRT.
After you select a function using the softkeys, the control will display other/new menus, and
Menu Trees with several branchings.
Menu Trees for each operating mode are stored in the control:

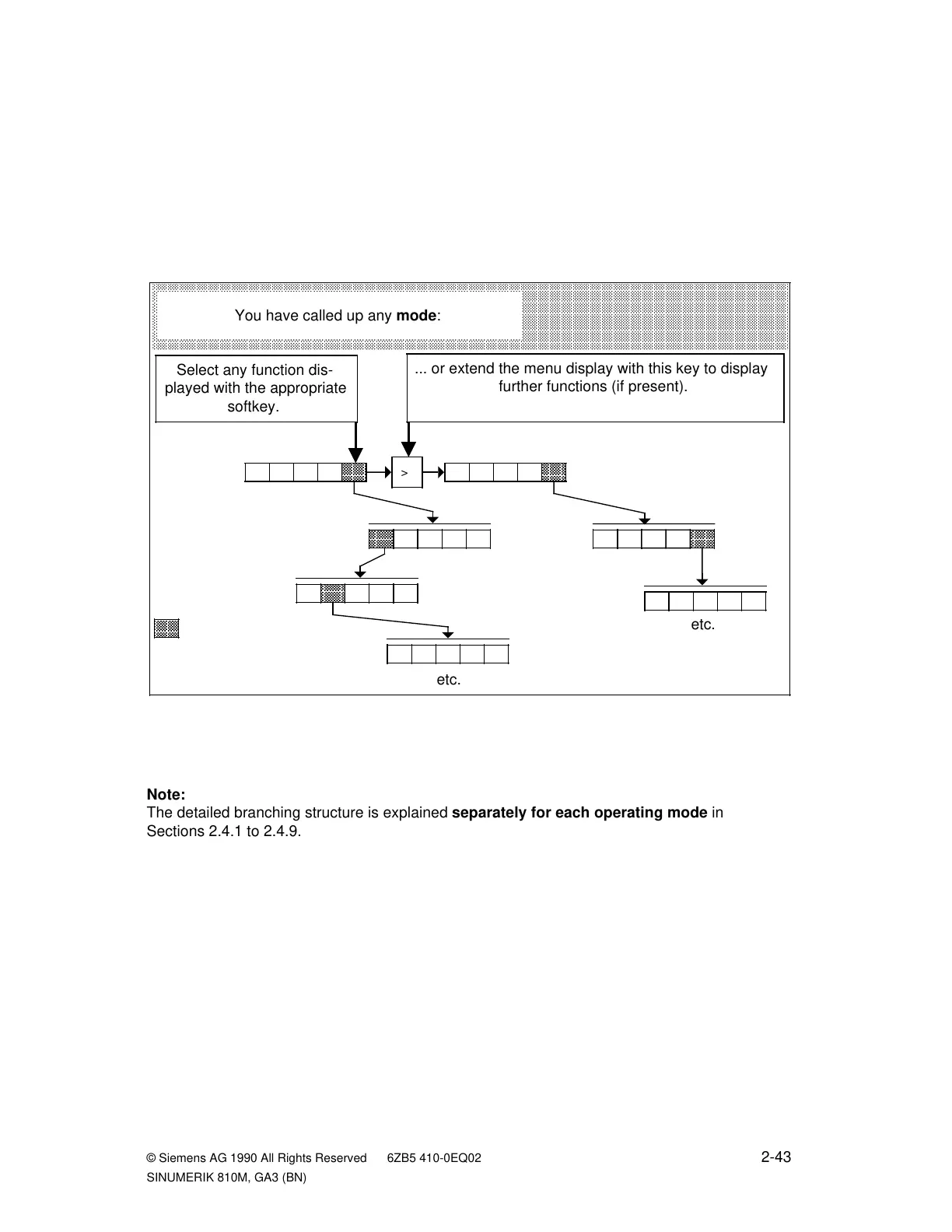

Branching of the operating functions (”Menu tree”) with stylized representation of the menus.
Hatched areas in the
menus:
the appropriate softkey
has been operated.
