01.93 2 Operation
2.1.1 SINUMERIK 810M operator interface with integrated machine control panel
Channel changeover
The control has
3 channels
:
• By pressing this key once, you switch to the next higher channel
no. than the one displayed
• Pressing the key again switches to the next higher channel.

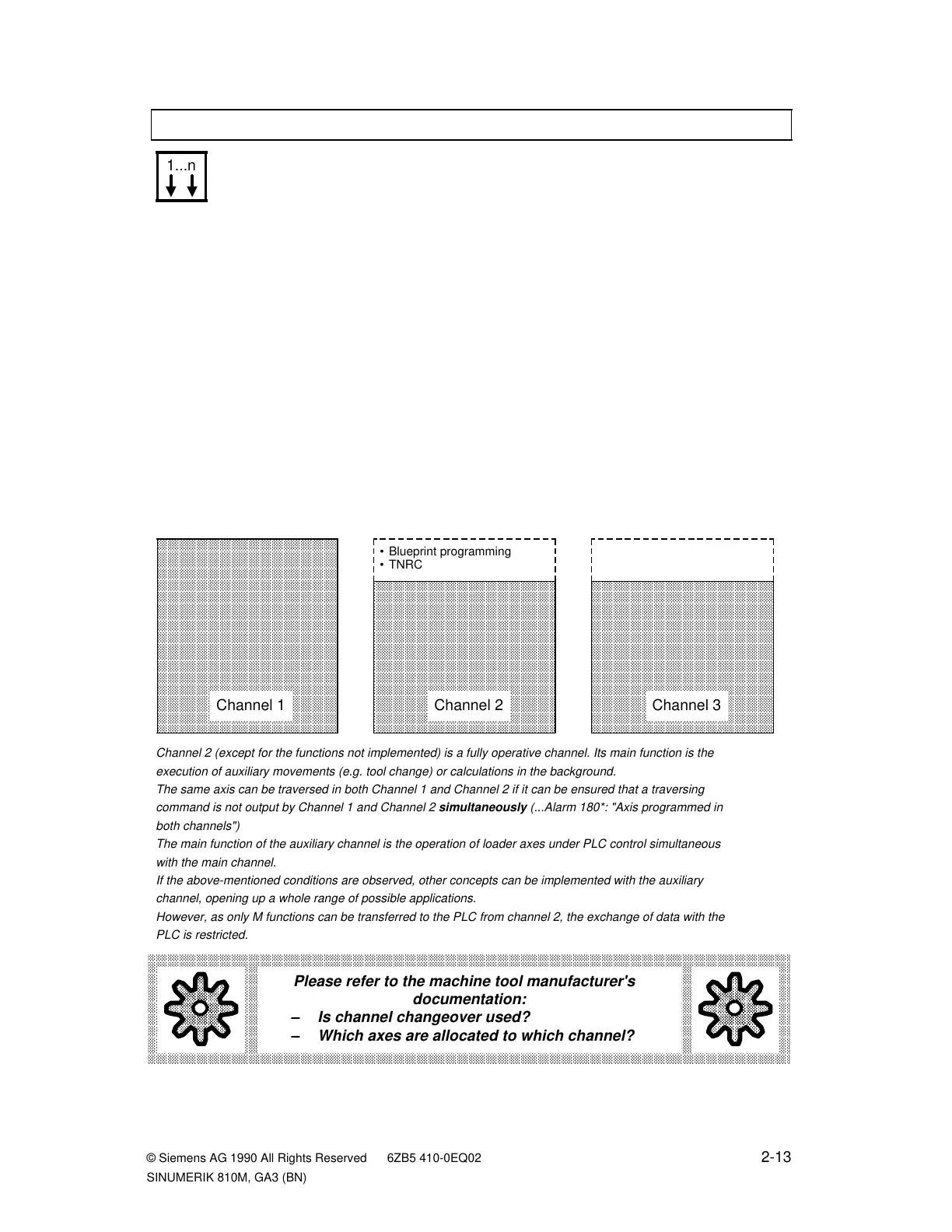

Explanation of channel structure:
The three channels have the following significance:
Channel 1:
Main channel
for processing part programs and
spindle programming.
Channel 2 :
Auxiliary channel
for processing programs for auxiliary axes or calculation functions in the
background.
Channel 3 :
Graphic simulation
for program display on the CRT.
(Note : Graphic simulation is an Option).
In addition to structural operations such as program editing and interface operation parallel to program
processing, the channels also permit the simultaneous processing of two different programs.
All three channels can be operated simultaneously. However with a few functions, collision problems can
occur.
Function set of the channels ( • ... function not implemented):
• Display of auxiliary functions
• NC-PLC data transfer
