2.3 Tool cutting edge
Basic logic functions: Tool Offset (W1)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
39
Special points to be noted
• The tool type must be specified for each tool cutting edge.
• Only the values specified can be used for the tool type.
• Tool type "0" (zero) means that no valid tool has been defined.
Tool compensation data for slotting saw type
The following compensation data (TOA data) can be specified for the slotting saw tool type
(type 700):
Geometry Wear Base Einheit
Length compensation
Length 1 $TC_DP3 $TC_DP12 $TC_DP21 mm
Length 2 $TC_DP4 $TC_DP13 $TC_DP22 mm
Length 3 $TC_DP5 $TC_DP14 $TC_DP23 mm
Saw blade compensation
Diameter d $TC_DP6 $TC_DP15 mm
Slot width b $TC_DP7 $TC_DP16 mm
Projection k $TC_DP8 $TC_DP17 mm
7RRODGDSWHUUHIHUHQFH
SRLQW
EN /
G /
/
E
N
/
G

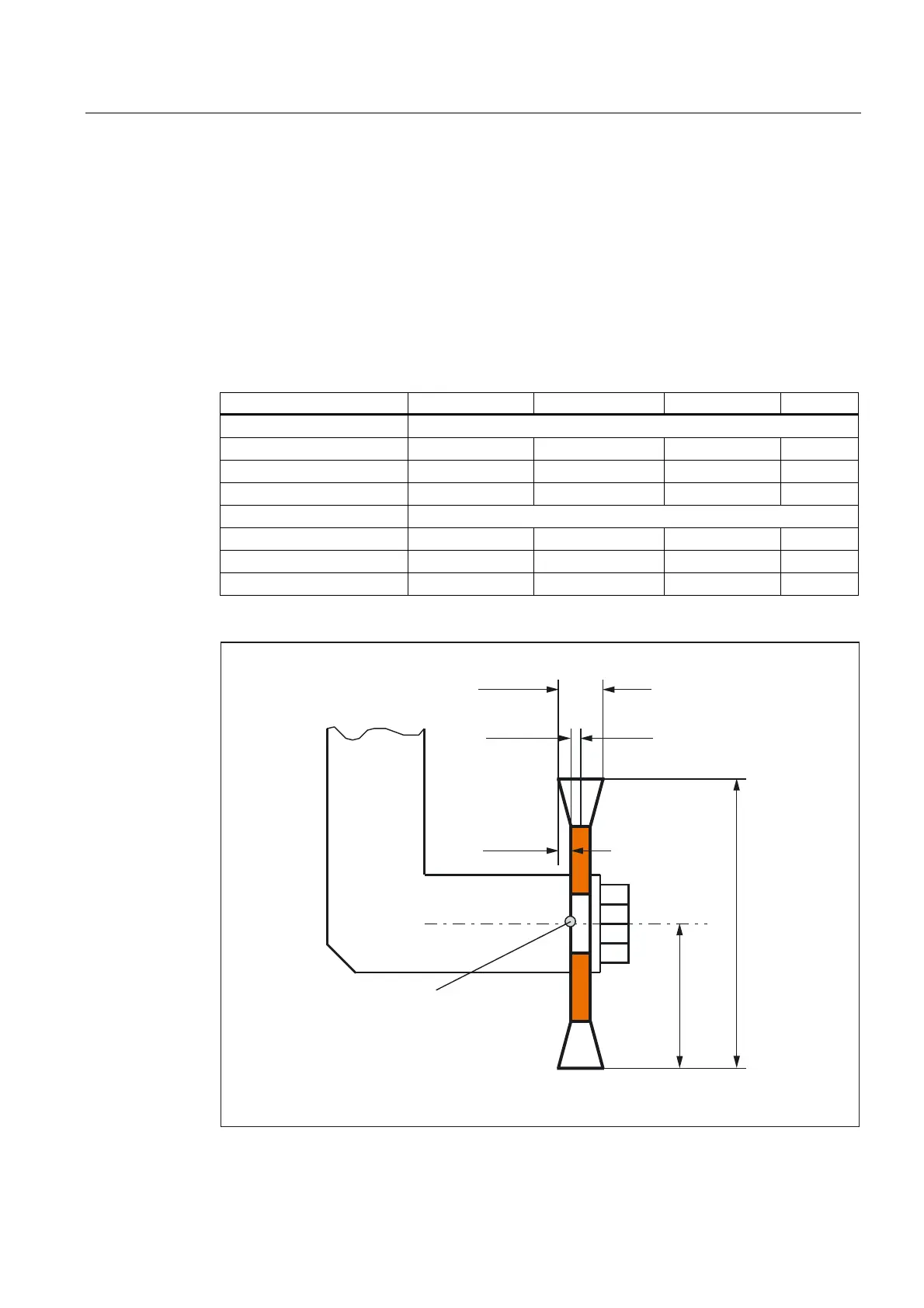

Figure 2-4 Geometry of slotting saw (analogous to angle head cutter)
