2.4 Closed-loop control
Basic logic functions: Velocities, Setpoint/Actual Value Systems, Closed-Loop Control (G2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
59
2.4 Closed-loop control
2.4.1 General
Position control of an axis/spindle
The closed-loop control of an axis consists of the current and speed control loop of the drive
plus a higher-level position control loop in the NC.
The speed and current control systems for SIMODRIVE 611 are described in:
References:
/IAD/"Installation & Startup Guide" SINUMERIK 840D/611D digital
/IAC/"Installation & Startup Guide" SINUMERIK 810D
/PJU/"Planning Guide" Converters.

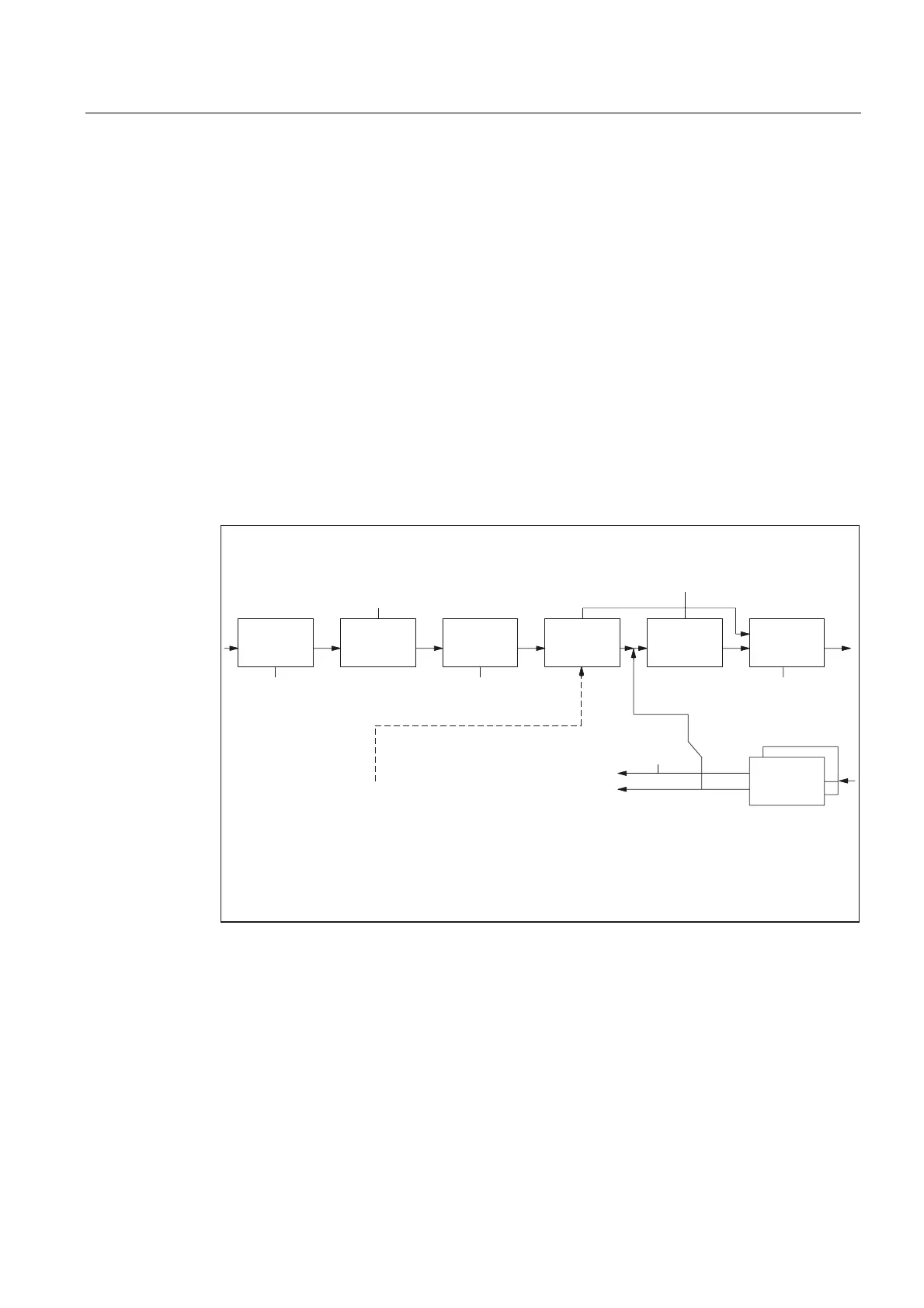

The basic structure of an axis/spindle position control is illustrated below:
0'$;B-(5.B(1$%/(
0'$;B-(5.B02'(
0'$;B-(5.B7,0(
0'326&75/B*$,1>Q@
0'),32B7<3(
0''<1B0$7&+B(1$%/(
0''<1B0$7&+B7,0(>Q@
0')5,&7B&203B(1$%/(
0'$;B027,21B',5
0'(1&B)(('%$&.B32/>Q@
0'(1&B&203B(1$%/(>Q@
0'%$&./$6+>Q@
0'%$&./$6+B)$&725>Q@
0')):B02'(
0')):B$&7,9$7,21B02'(
0'9(/2B)):B:(,*+7>Q@
0'$;B,1(57,$
0'(48,9B63(('&75/B7,0(>Q@
0'(48,9B&855&75/B7,0(>Q@
)LQH
LQWHUSRODWLRQ
-HUN
OLPLWDWLRQ
'\QDPLF
UHVSRQVH
DGDSWDWLRQ
)HHG
IRUZDUG
FRQWURO
&ORVHG
ORRSFRQWURO
6SHHG
VHWSRLQW
SURFHVVLQJ
$FWXDOYDOXH
SURFHVVLQJ
,)&
SRVLWLRQPHDVXULQJ
V\VWHP
3DUDPHWHUVHWV
Figure 2-12 Additional servo parameter sets for position control
For a description of the feedforward control, backlash, friction compensation with further
machine data, and leadscrew error compensation, see:
References:
/FB2/ Function Manual, Extended Functions; Compensations (K3).
For a description of jerk limitation, see:
References:
/FB1/ Function Manual, Basic Functions; Acceleration (B2).
