Detailed Description

2.4 Tool radius compensation 2D (TRC)

Basic logic functions: Tool Offset (W1)

Function Manual, 11/2006, 6FC5397-0BP10-2BA0

Example:

N10

; Definition of tool d1

N20 $TC_DP1[1,1] = 110

; Type

N30 $TC_DP6[1,1]=

; Radius

N40

N50 X0 Y0 Z0 G1 G17 T1 D1 F10000

N60

N70 X20 G42 NORM

N80 X30

N90 Y20

N100 X10 CUTCONON

; Activate compensation suppression

N110 Y30 KONT

; On deactivation of contour suppression,

insert bypass circle, if necessary

N120 X-10 CUTCONOF

N130 Y20 NORM

; No bypass circle on deactivation of TRC

N140 X0 Y0 G40

N150 M30

&RQWRXUZLWKRXW75&

&RQWRXUZLWK75&





;

1

1

1

1

1

1

11

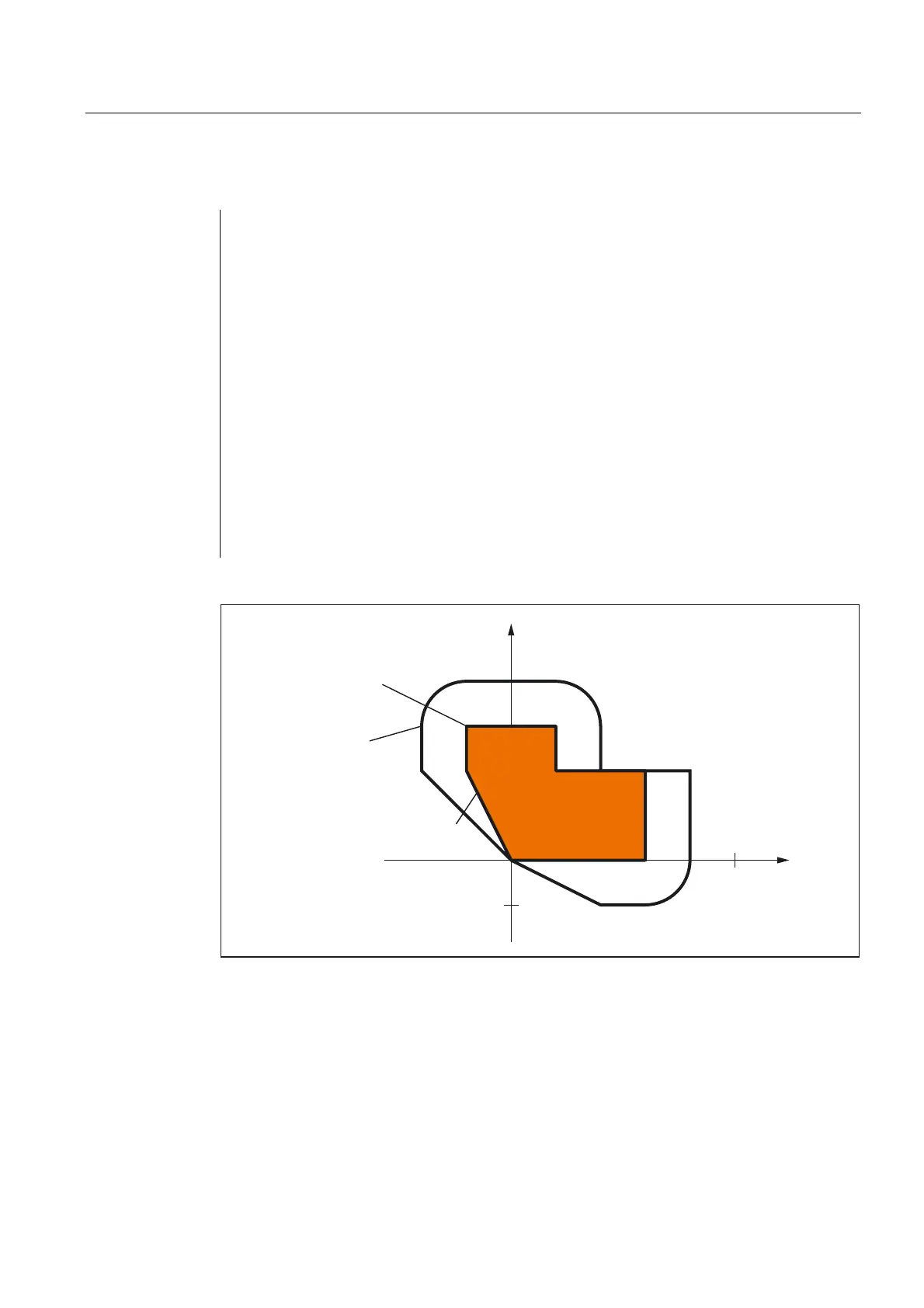

Figure 2-38 Sample program for contour suppression
