Detailed description
2.1 NC/PLC interface signals
Basic logic functions: Various NC/PLC interface signals and functions (A2)
Function Manual, 11/2006, 6FC5397-0BP10-2BA0
21
)S
W
W
W
W
$[LVLVPRYLQJ
3RVLWLRQFRQWUROOHU
RSHQHGLPPHGLDWHO\
5DSLGVWRS
SRVLWLRQFRQWUROORRS
,66HUYRHQDEOH
,63RVLWLRQFRQWUROOHUDFWLYH
6HUYRHQDEOHWRGULYH
,66SHHGFRQWUROOHUDFWLYH
VHW
)S
0'$;B(0(5*(1&<B6723B7,0(
0'6(592B',6$%/(B'(/$<B7,0(
0'67$1'67,//B9(/2B72/
DFW
)S

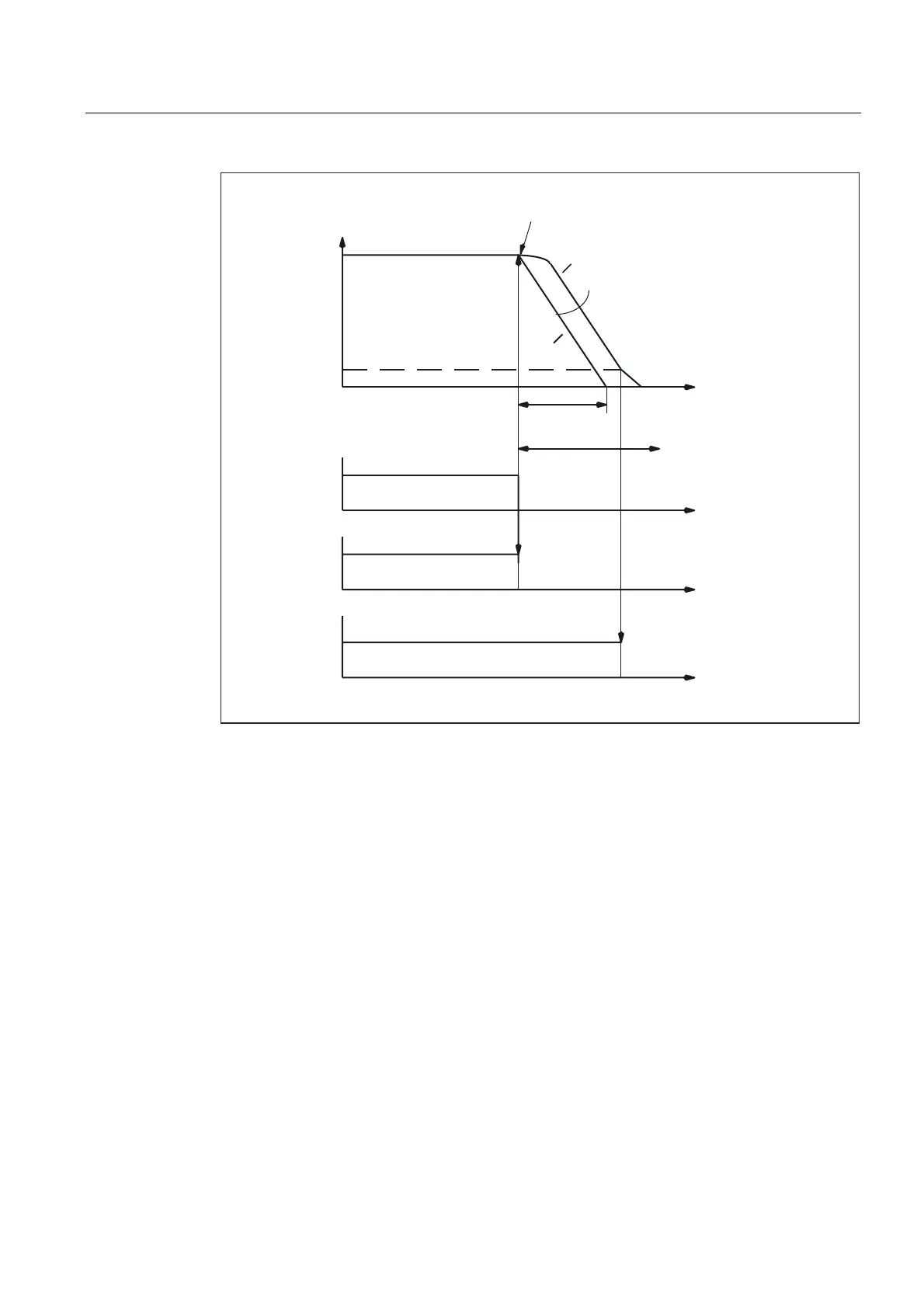

Figure 2-5 Canceling the servo enable when the machine axis is in motion
DB31, ... DBX2.2 (Delete distance-to-go/Spindle reset (axis-/spindle-specific))
"Delete distance-to-go" is effective in AUTOMATIC and MDA modes only in conjunction with
positioning axes. The positioning axis is decelerated to standstill following the current brake
characteristic. The distance-to-go of the axis is deleted.
Spindle reset
A detailed description of the spindle reset can be found in:
References:
/FB1/ Function Manual Basic Functions; Spindles (S1)
