Detailed description
2.5 Workpiecerelated actualvalue system
Basic logic functions: Axes, coordinate systems, frames (K2)
136 Function Manual, 11/2006, 6FC5397-0BP10-2BA0
Interrelationships between coordinate systems

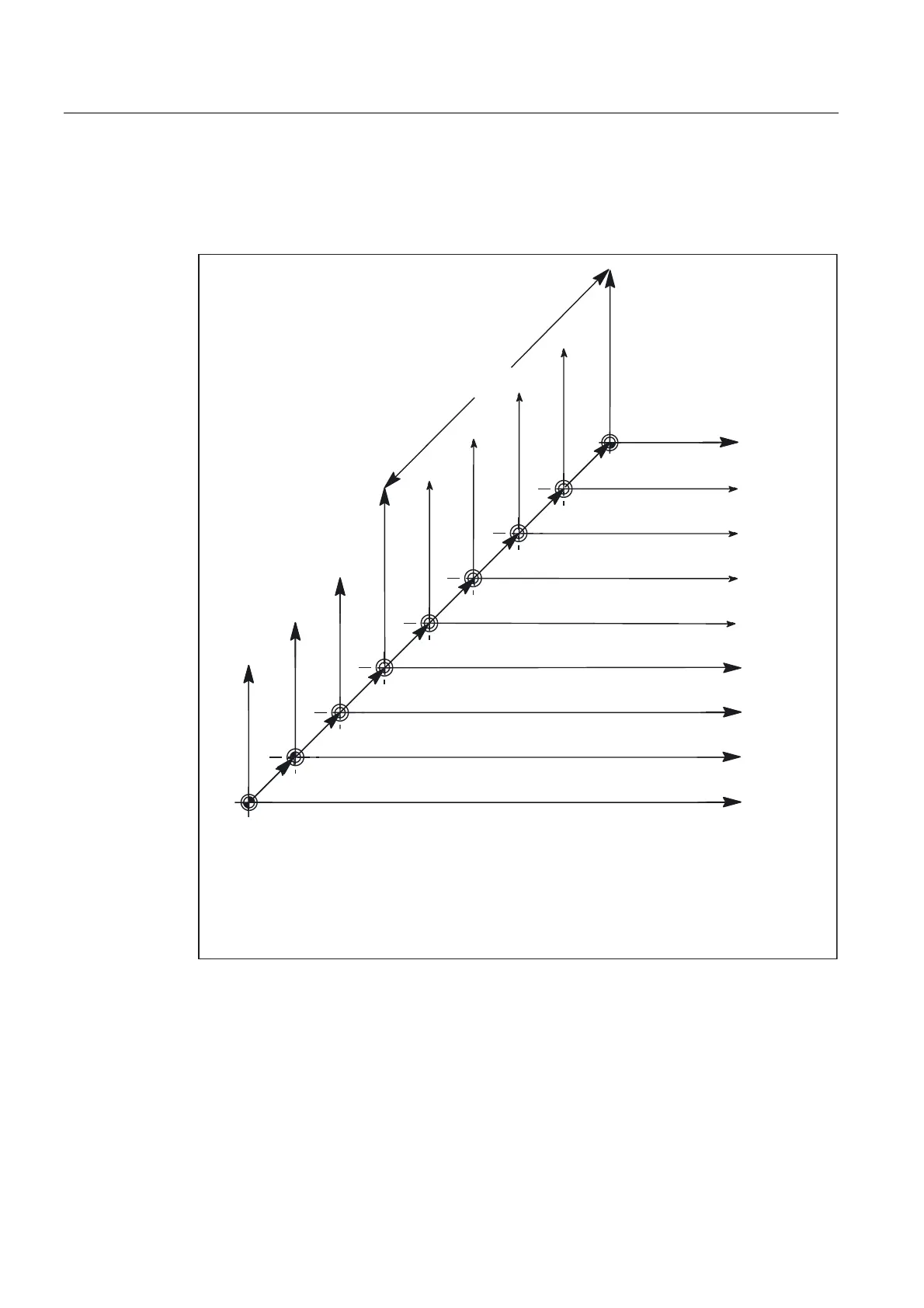

The figure below shows the interrelationships between the machine coordinate system
(MCS) and the workpiece coordinate system (WCS).
)UDPHIRUF\FOHVSURJUDPPDEOH
IUDPHWUDQVIRUPDWLRQV
+RPHSRVLWLRQRIIVHW
)UDPHFKDLQ
6=6 6HWWDEOH=HUR6\VWHP
%=6 %DVLF=HUR6\VWHP
:&6 :RUNSLHFH&RRUGLQDWH6\VWHP
%&6 %DVLF&RRUGLQDWH6\VWHP
0&6 0DFKLQH&RRUGLQDWH6\VWHP
&KDLQHGV\VWHPIUDPHVIRU3$52735(6(7
VFUDWFKLQJ]HURRIIVHWH[WHUQDO
&KDLQHGILHOGRIEDVLFIUDPHV
FKDQQHOVSHFDQGRU1&8JOREDO
*WR*VHWWDEOHIUDPH
FKDQQHOVSHFRU1&8JOREDO
6\VWHPIUDPHIRU72527
72)5$0(ZRUNSLHFHV
%&6
%=6
6=6
:&6
0&6
+DQGZKHHO'5)RIIVHWVXSHULPSRVHGPRYHPHQW]HUR
RIIVHWH[WHUQDO
.LQHPDWLFWUDQVIRUPDWLRQ
Figure 2-23 Interrelationship between coordinate systems
References:
/PG/Programming Guide, Fundamentals
/FB1/ Function Manual, Basic Functions; Tool Offset (W1)
/FB1/ Function Manual, Basic Functions; Auxiliary Function Outputs to PLC (H2)
/FB2/ Function Manual, Expansion Functions; Kinematic Transformation (M1)
/FB3/ Function Manual, Special Functions; Axis Couplings and ESR (M3);
Section: Coupled Motion, Chapter: Master Value Coupling
/FB3/ Function Manual, Special Functions; Tangential Control (T3)
