General information on workpiece production
2.6
© Siemens AG All rights reserved. SINUMERIK, Manual, 5-axis machining
28
2.6.2 Example: Measure tool in JOG
Function
The "Measure tool" function permits the following functions:
Calibrating a dynamometer (calibrate)
Determining the tool length or the radius of milling tools or the tool length of drills and entering
this data into the tool offset memory
Requirements for using cycles
The measuring cycles must have been installed
The tool must have been loaded
The dynamometer must have been calibrated and must be active

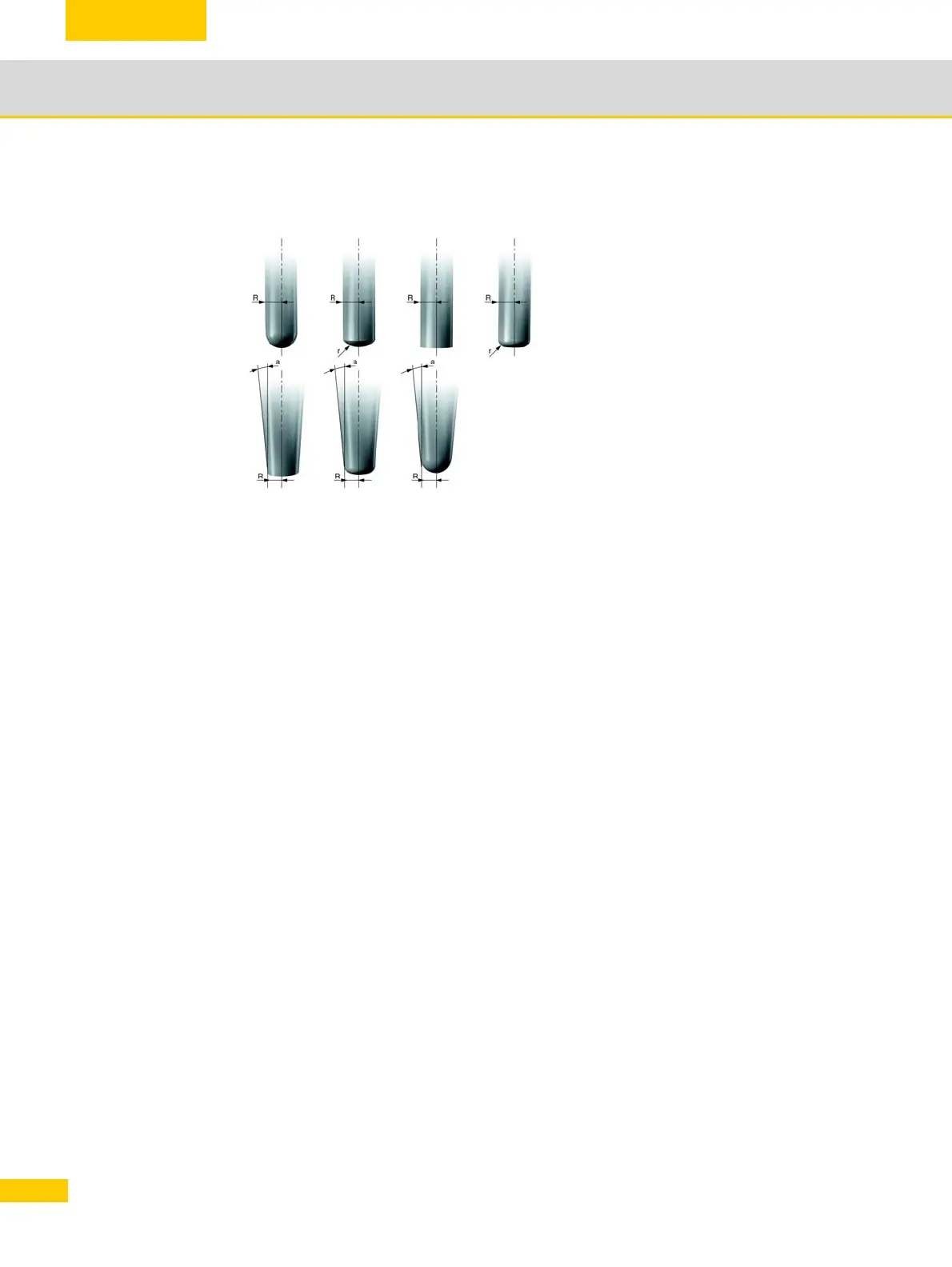

You can specify additional tool data for face
milling depending on the tool type.
In an NC program, the control system uses
this data and path corrections G41, G42 -
defined in the program - to execute the neces-
sary path and length corrections.
Radius end mill
type 110
Ball end
mill
type 111
End mill
types 120, 130
End mill with
corner rounding
types 121, 131
Bevel cutter
type 165
Bevel cutter with
corner rounding
type 156
Tap ere d
die mill
type 1657
