2.10 Quick View / Fast display
Function

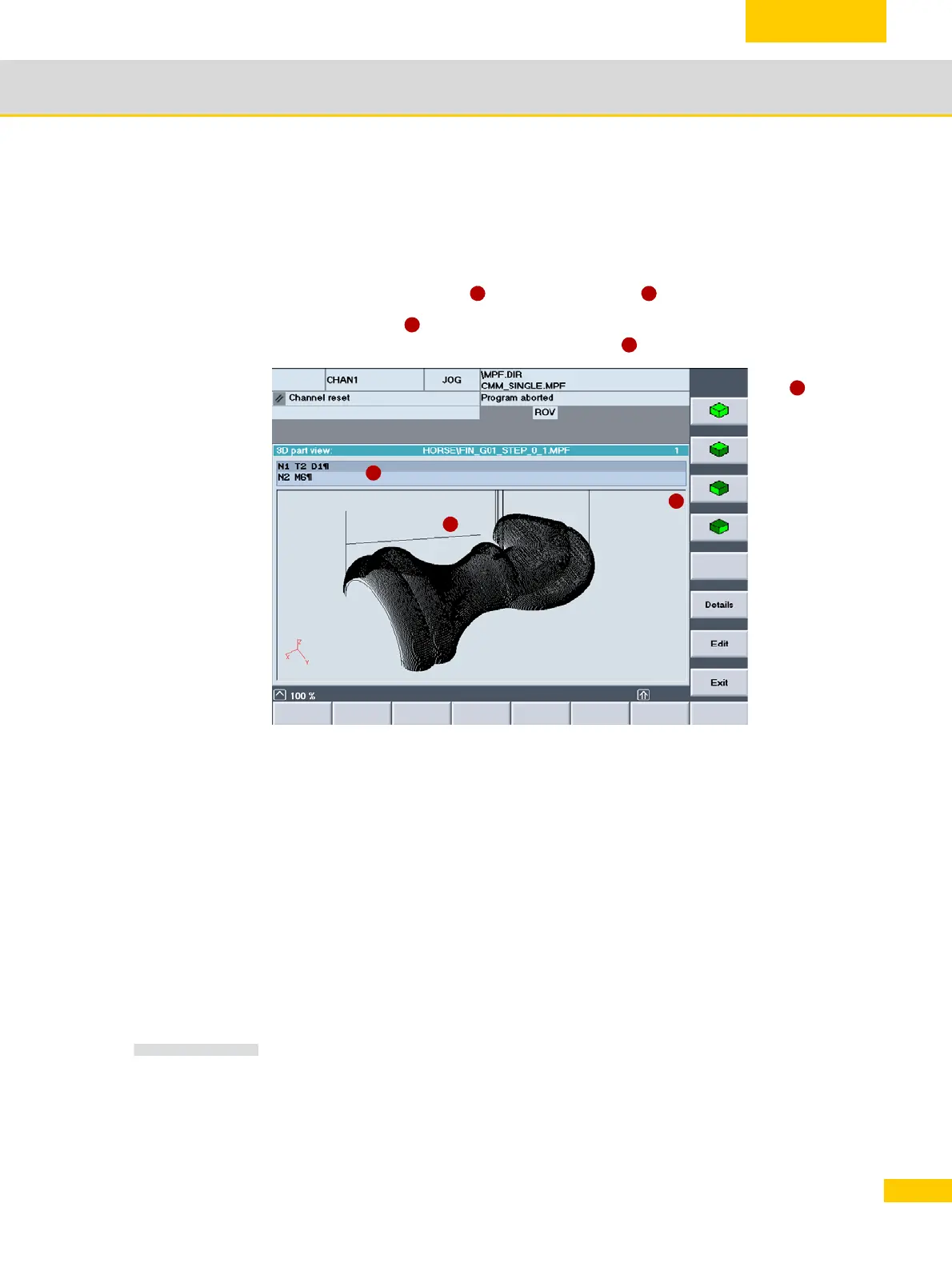

The Quick View function on the SINUMERIK with PCU50 makes it possible to visualize part pro-
grams that contain G01 blocks. Program loops, polynomials, transformations and G02/03 blocks
are not supported. Four views are available: 3D view , X/Y plane, X/Z plane, Y/Z plane.
The two editor lines display the block currently highlighted in the graphic. Scrolling through
the editor window automatically highlights the position in the graphic.
The following functions are also available
Search for a specific block
"Enlarge/Reduce" the picture detail
Shift, rotate
Measure the distance between two points
Edit the NC part program displayed
Notes You can use Quick View (fast display) for the SINUMERIK with standard interface and for Shop-
Mill. With the standard version, Quick View can be accessed via the program manager; with
ShopMill, you can open Quick View in the program editor.
Further information regarding Quick View can be found in the Tool and Mold Making man-
ual (3 axes).
1 2
3
4
→ 3D view
→ X/Y plane
→ X/Z plane
→ Y/Z plane
3
1
2
4
