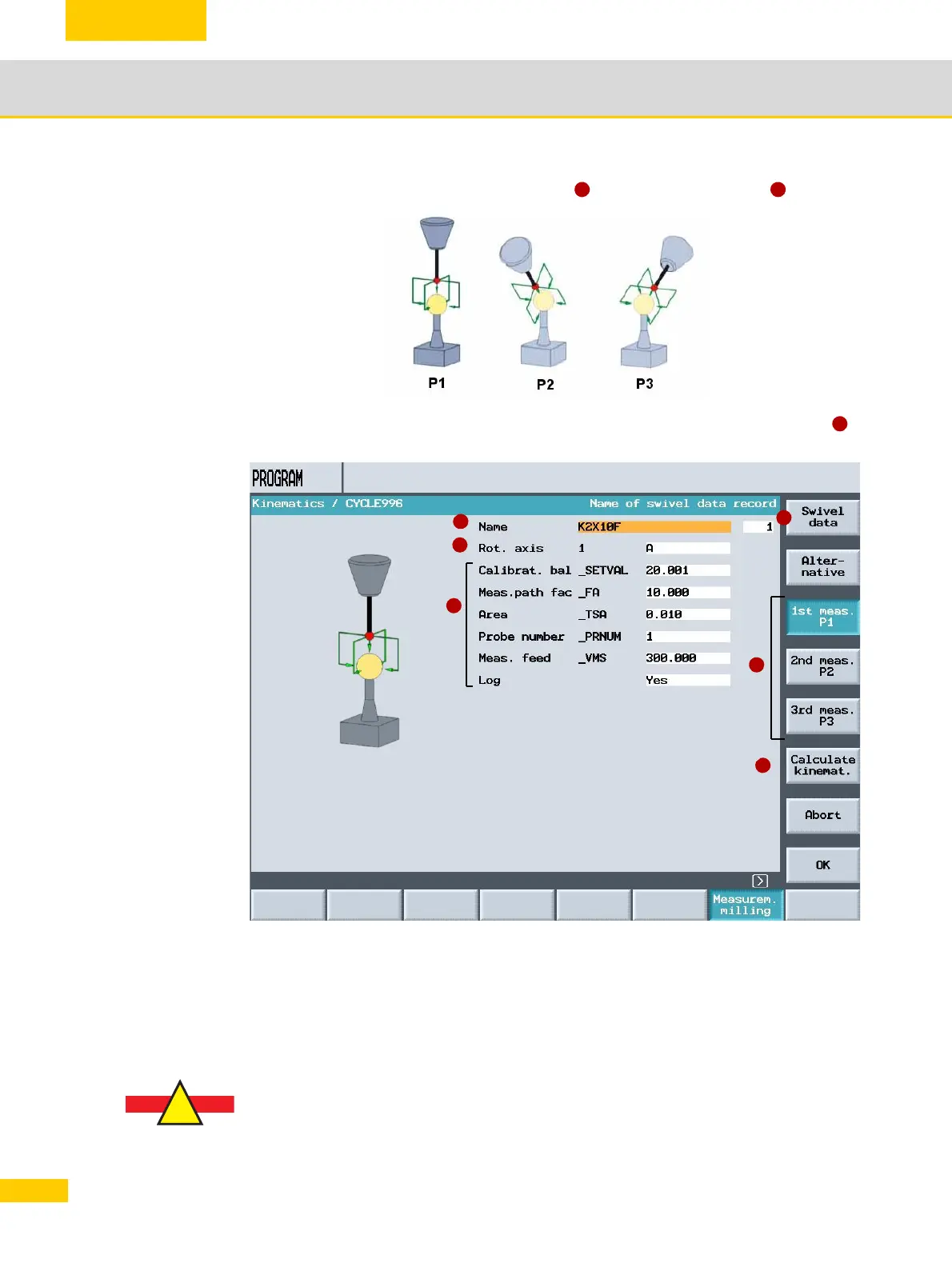

X Assign parameters for the measuring process ( ) for measurements 1 to 3 ( ).

X Press the "Calculate kinematics" softkey once all the rotary axes have been measured ( ).

As soon as you press the softkey, the Calculate kinematics dialog will open. The following

options are available in terms of how you then utilize the measurement results:

 Measurement only (measure and calculate vectors)

 Entry of the results (measure, calculate vectors, and enter vectors in swivel data record for

correction purposes)

Please take care when modifying the swivel data. This affects the kinematics directly and

if an error is made with regard to the correction value, this can result in damage to the

machine during operation.
