Siemens SINUMERIK 840D Manual

General information on workpiece production
2.8
© Siemens AG All rights reserved. SINUMERIK, Manual, 5-axis machining
34

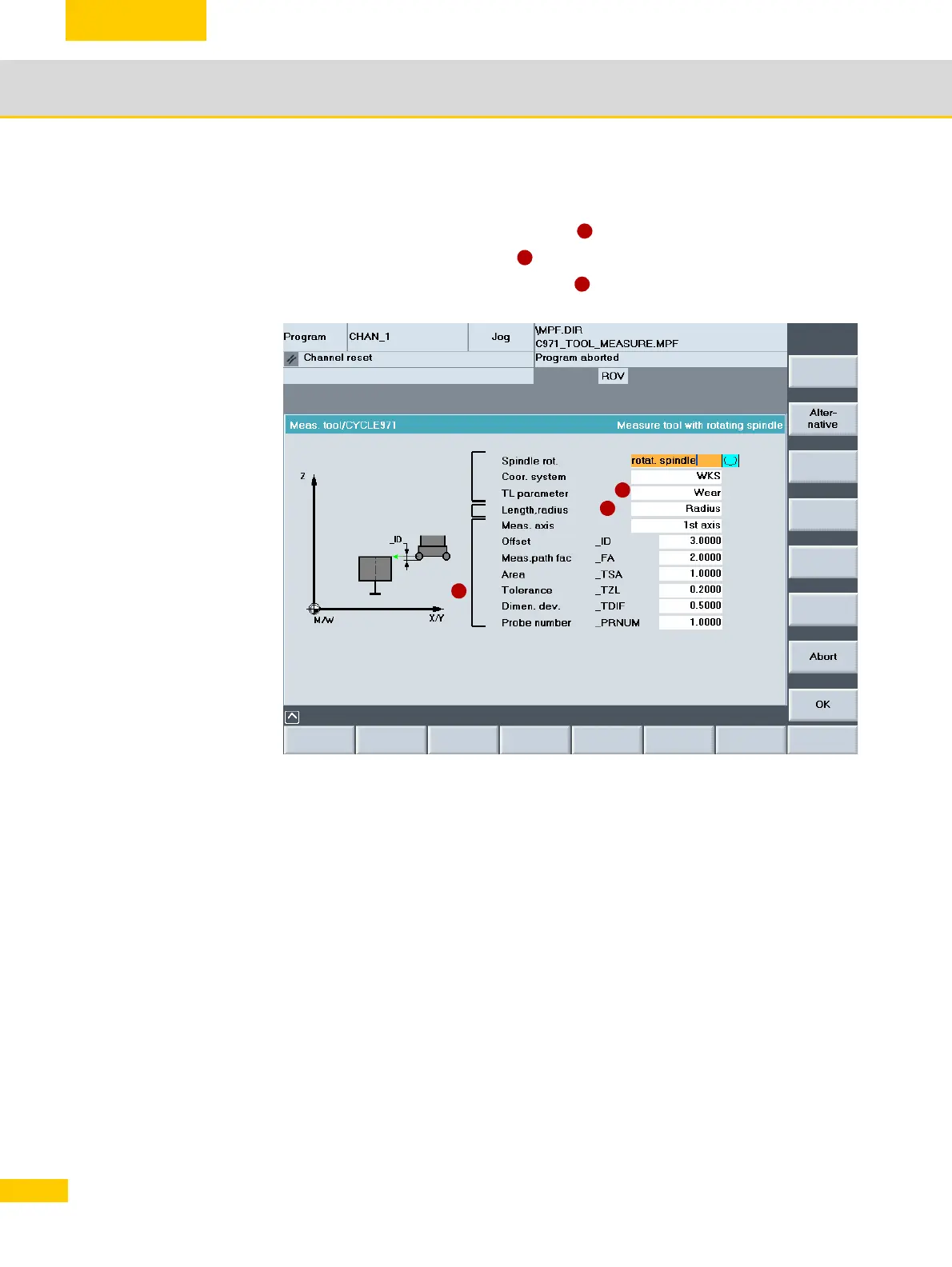

Determining the tool radius:
X The measurement is performed with the spindle rotating and the setpoint/actual value differ-
ence is entered optionally into the radius wear ( ).
X Select the radius as measured value ( ).
X Assign parameters for the measuring process ( ).
1
2
3
1
2
3

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
