Siemens SINUMERIK 840D Manual

© Siemens AG All rights reserved. SINUMERIK, Manual, 5-axis machining
Key functions for 5-axis machining
3.3
43

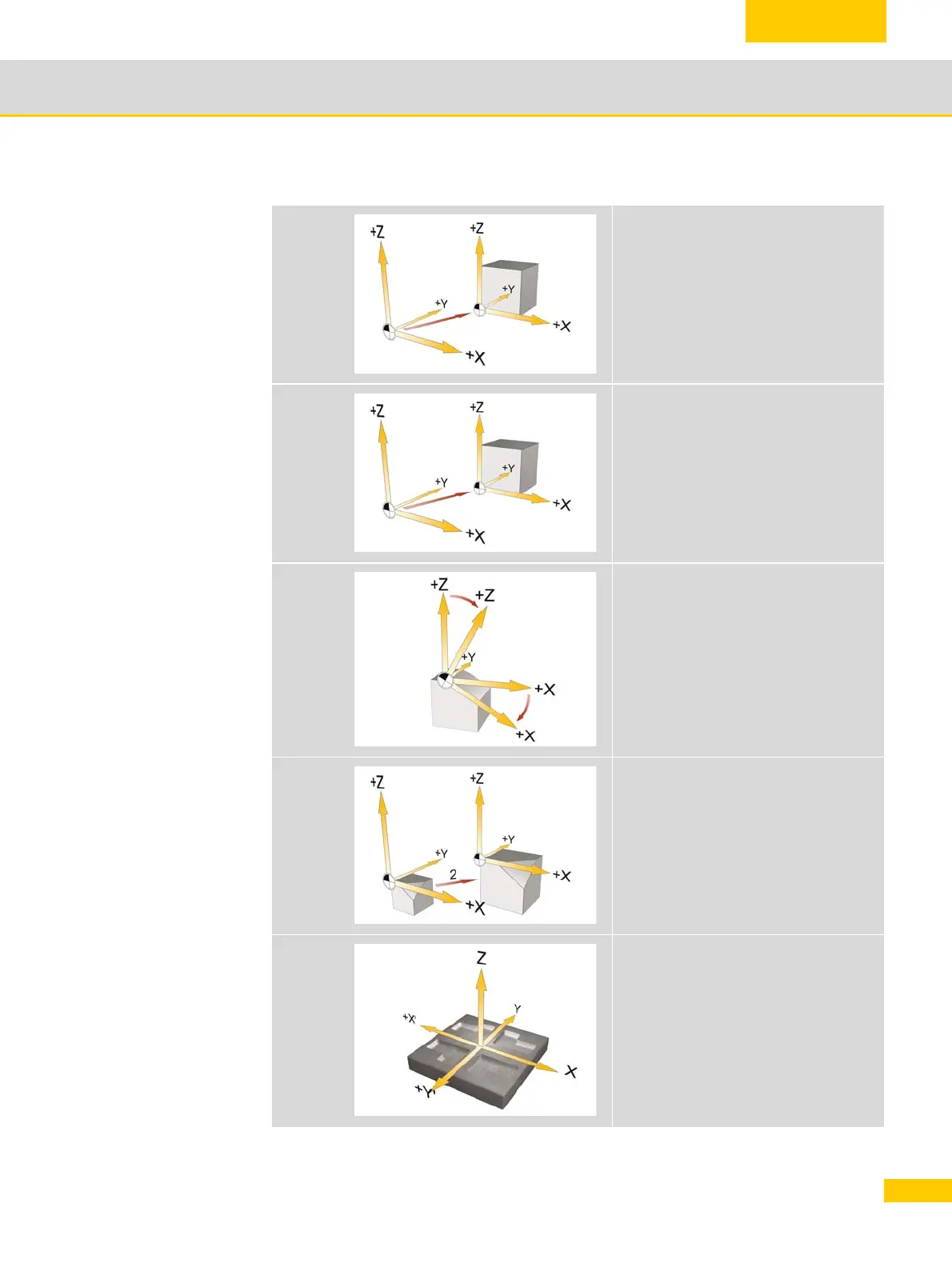

Frames - Programming components
Offset (coarse)
Programmable with
 TRANS (absolute offset)
 ATRANS (incremental offset)
 CTRANS (absolute offset via frame
operators)
Can be set with:
 Frames (G54 to G599)
Offset (fine)
Programmable with
 C-FINE
Can be set with:
 Frames (G54 to G599)
Rotation
Programmable with
 ROT/ROTS
 AROT/AROTS
and
 CROTS
Scaling
Programmable with
 SCALE
 ASCALE
 CSCALE
Mirroring
Programmable with
 MIRROR
 AMIRROR
 CMIRROR

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
