Key functions for 5-axis machining
3.6
© Siemens AG All rights reserved. SINUMERIK, Manual, 5-axis machining
64
Depending on parameter selection the yellow arrows will point towards "Speed", "Sur-
face quality" or in the direction "Accuracy".
TRAORI can be activated with simultaneous machining , unless the CAM program has been
calculated with resolved rotary axis positions.
The other options are activated by the machine manufacturer and are password-protected.

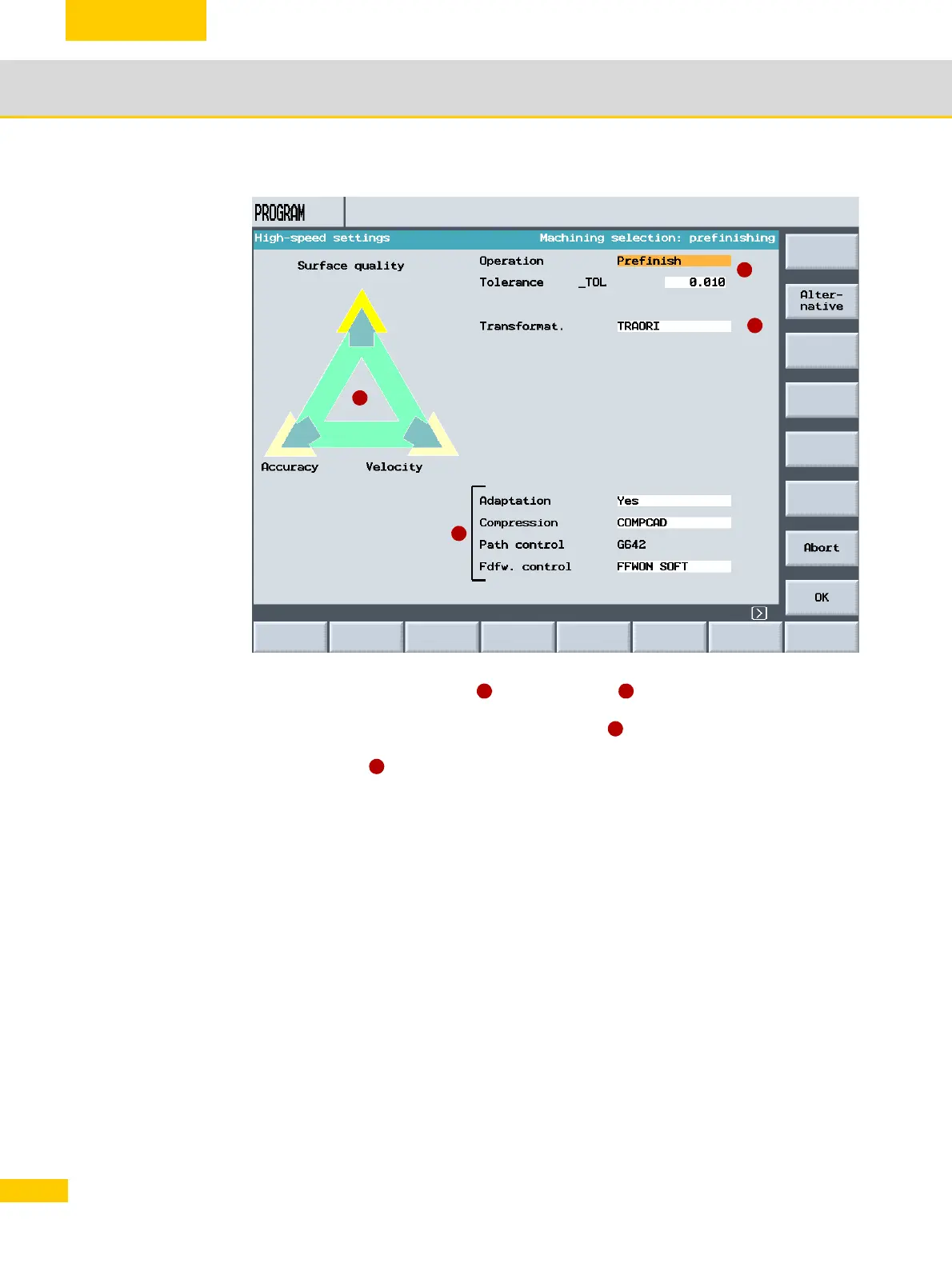

Parameters for the high speed setting cycle
In the Machining field, all the user has to do is choose between finishing, pre-finishing and
roughing and enter a value in the Tolerance field. The values in all the other fields will have
already been entered by the machine manufacturer. The machine manufacturer can enable the
other fields using the Adaptation field (password-protected).
2
4
1
3
1 2
3
4
