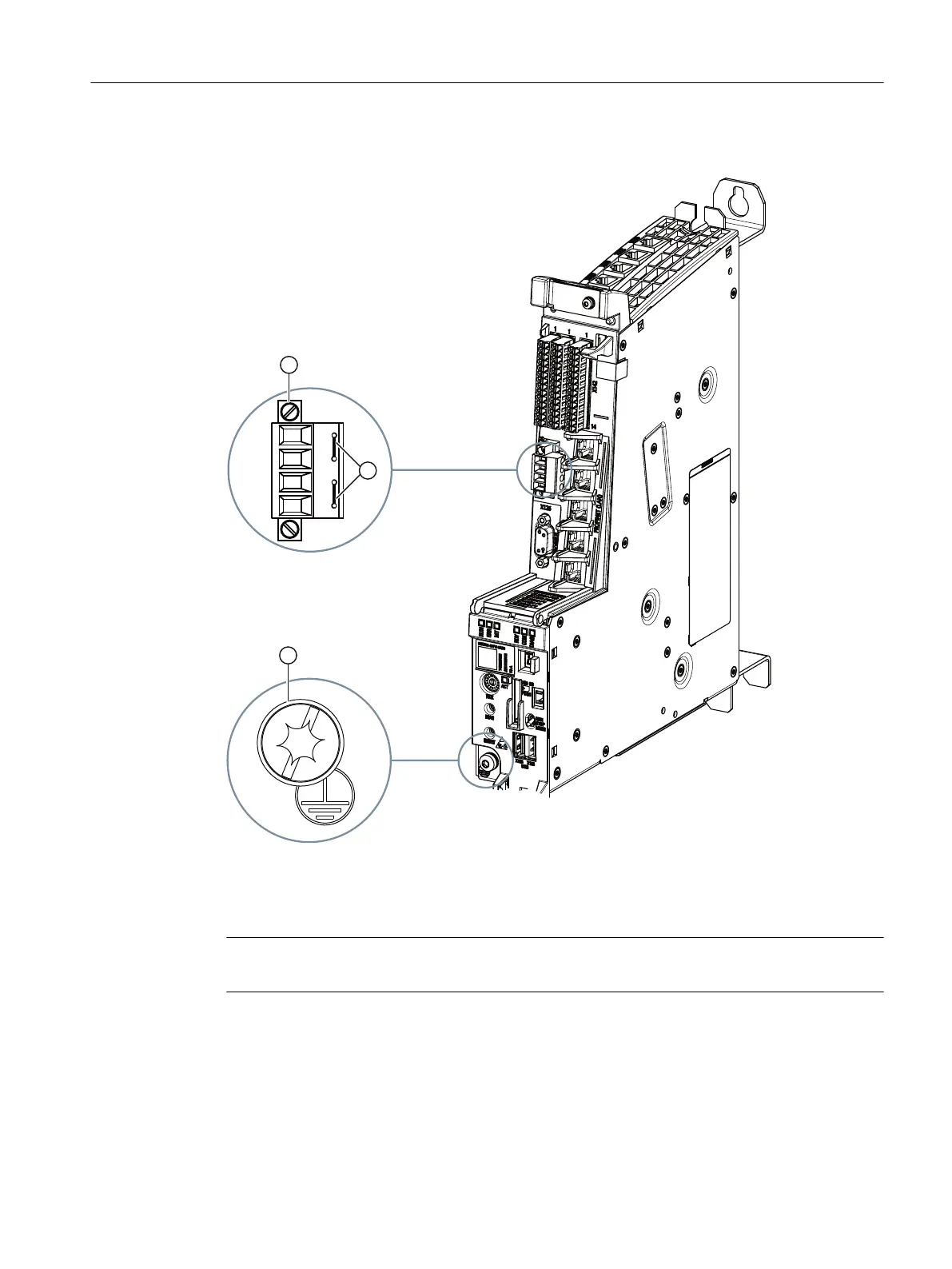

Position of the power supply interface
① Power supply connectors
② Jumper
③ Functional ground, at the housing with M5 screw Torx / 3 Nm
Note
Tighten the power supply terminal strip using a at-bladed screwdriver.
Connecting
8.5 Power supply
NCU 1740
Equipment Manual, 10/2021, A5E51087503B AA 63
