PIN Signal name Signal type Meaning
8 - - Reserved, do not use
A + (24 V) VO Voltage supply for DRIVE-CLiQ, 450 mA maximum
B M (0 V) VO Ground to 24 V
Signal type: I = Input; O = Output; VO = Voltage Output
Position of the DRIVE-CLiQ interfaces
B
A
8
1

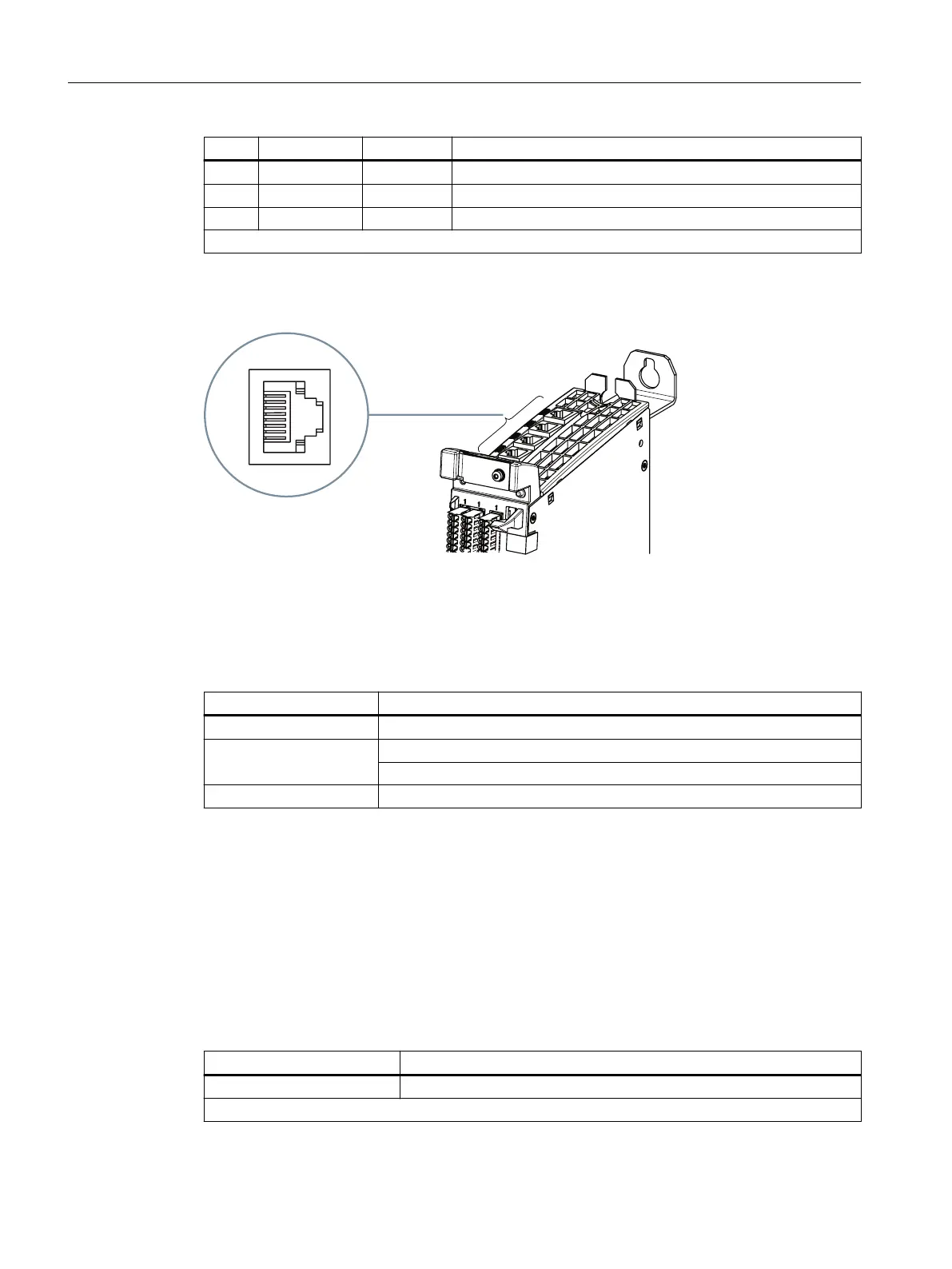

Figure 8-3 DRIVE-CLiQ interfaces
Cable speci󹪝cation
Table 8-6 Cable speci󹪝cation for X100 - X103
Characteristic Version
Connector type RJ45 socket
Cable type DRIVE-CLiQ standard (inside the control cabinet)
MOTION-CONNECT (outside the control cabinet)
Max. cable length 70 m
8.6.2 Connectable DRIVE-CLiQ components
Components
As a rule, all SINAMICS/SIMOTION components approved for SINUMERIK can be connected to an
NCU using DRIVE-CLiQ.
Table 8-7 Components with DRIVE-CLiQ
Component Description
NX10.3 / 15.3 Drive expansion module for up to 6 axes
SINAMICS S120, system components, booksize format
Connecting
8.6 DRIVE-CLiQ components
NCU 1740
66 Equipment Manual, 10/2021, A5E51087503B AA
