Control During Operation
228
7SS52 V4 Manual
C53000-G1176-C182-3
The following figure gives an overview of these function:

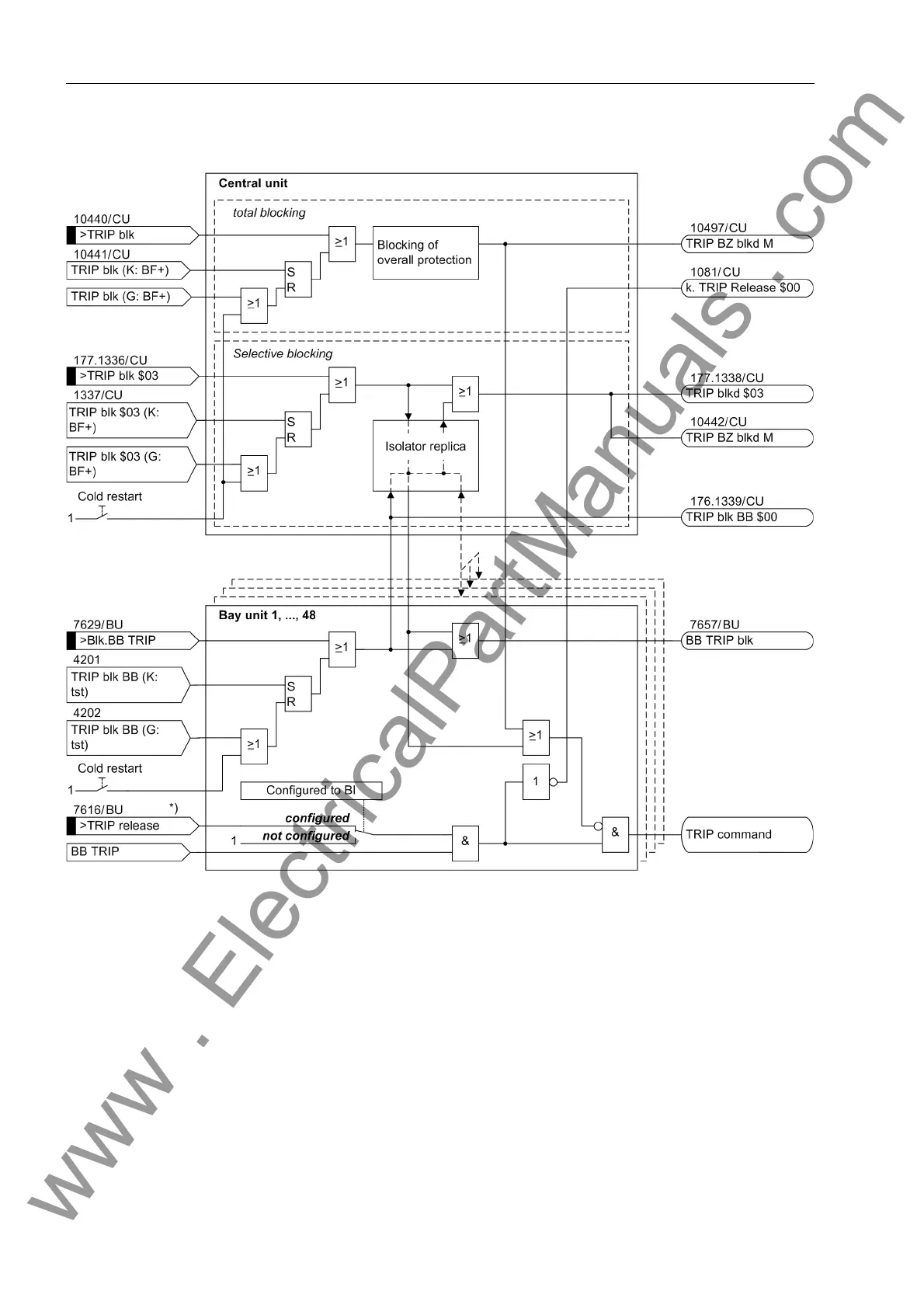

Figure 6-16 Logic for the blocking of the TRIP command
BF+: CU command (system port, DIGSI, locally)
Pr.: BU test function (DIGSI, locally)
K: ON
G: OFF
*) the BI ">TRIP release" of the BU is only observed if it has been configured.
