Appendix
354
7SS52 V4 Manual
C53000-G1176-C182-3
A.4.3 Jumper Settings of the D-CPU Module

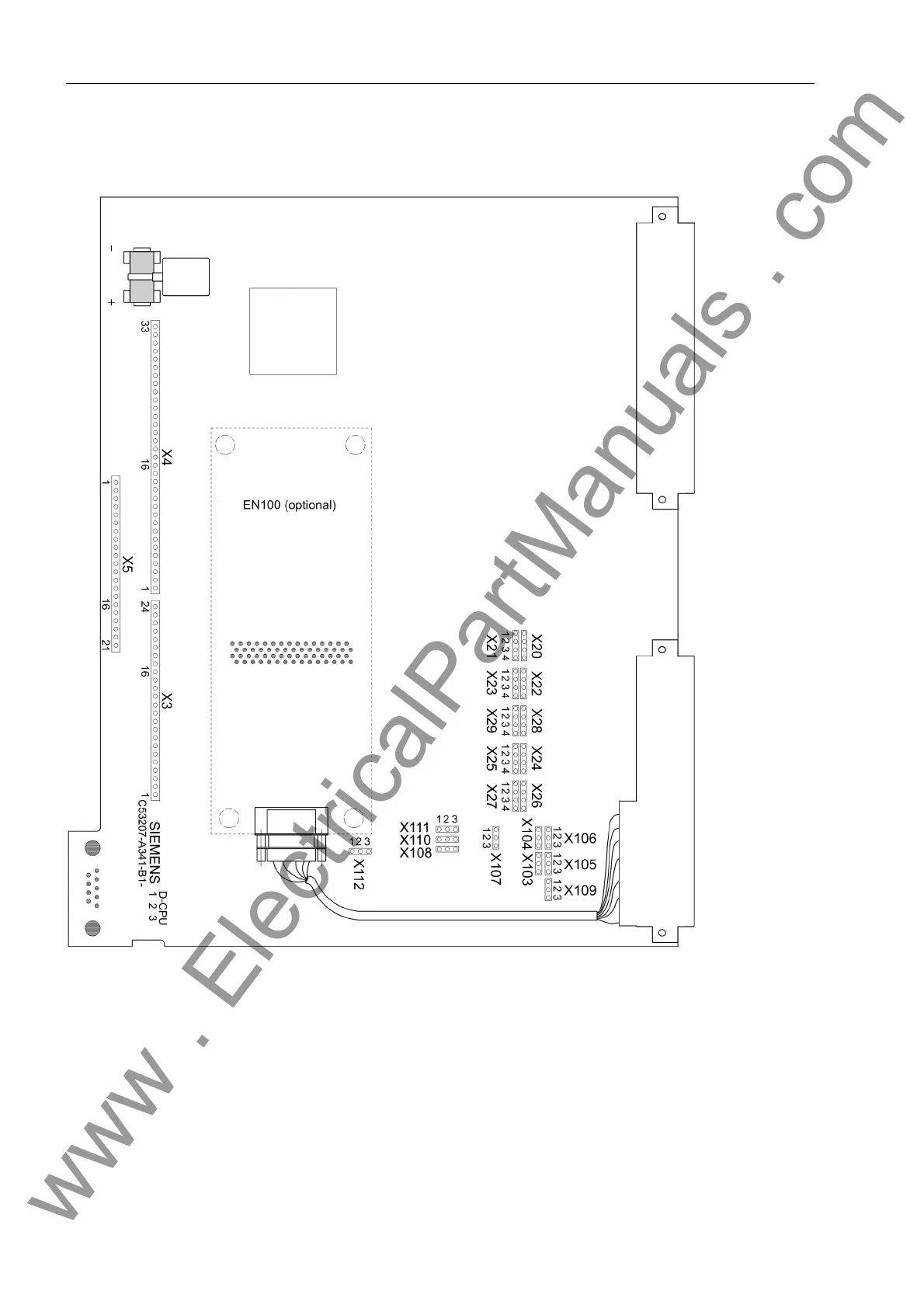

Figure A-10Location of the jumpers on the D-CPU module
The service port can be configured as RS232, RS485 or as optical interface. Insert the
jumpers according to Table A-14, page 355.
The Ethernet interface module EN100 has no plug-in jumpers.
