Appendix
362
7SS52 V4 Manual
C53000-G1176-C182-3
A.5.6 Settings of the EFE_10 Module

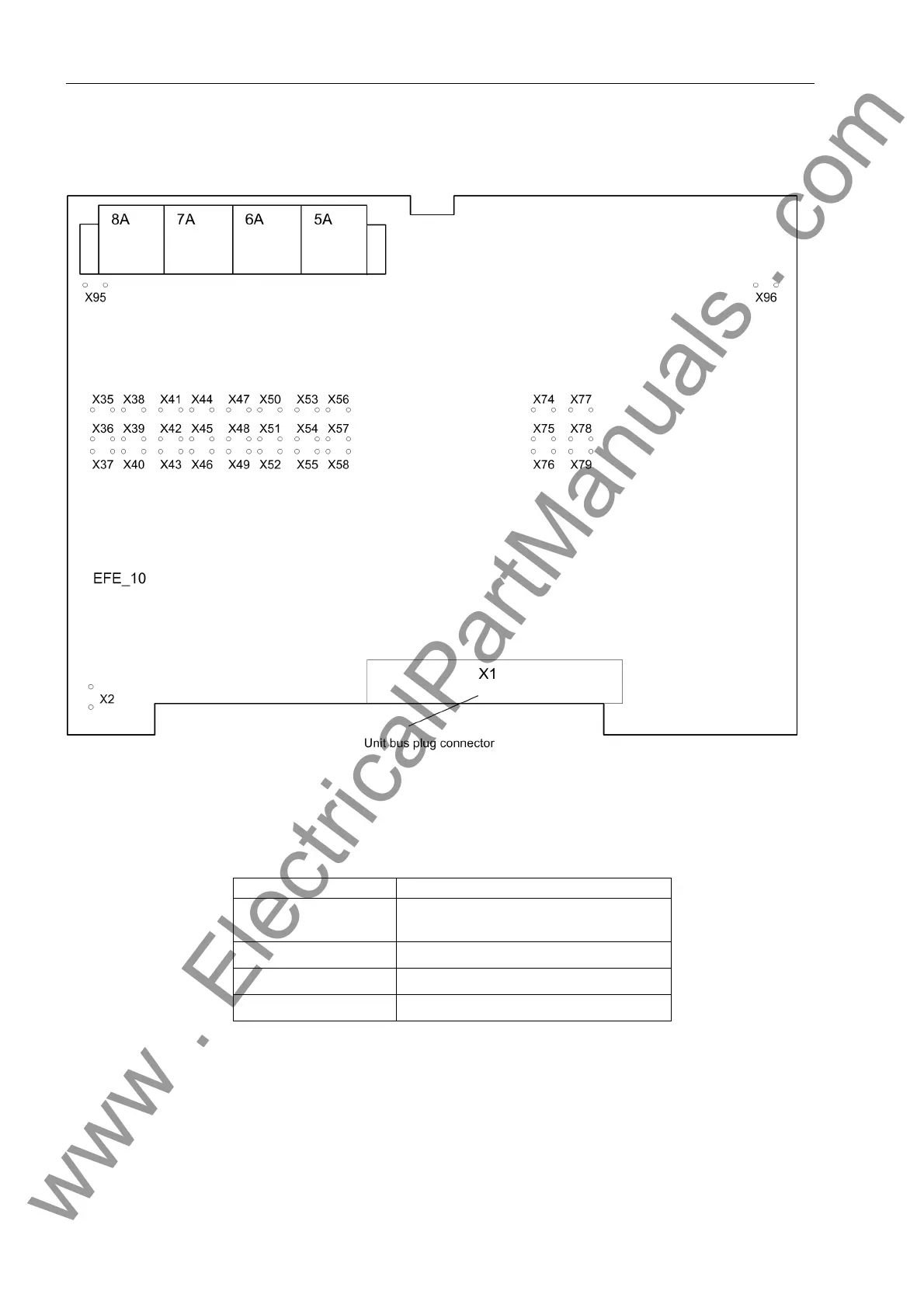

Figure A-16Location of the jumpers on the EFE_10 module
Table A-19 Jumper settings for the EFE_10 module
Connector Jumper
X35 to X58 and
X74 to X79
Jumpers for the voltage setting, see Table
A-20, page 363
X2 (wire jumper) Not installed
X95 (wire jumper) Not installed
X96 (wire jumper) Not installed
