Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7SD5, Manual
C53000-G1176-C169-5, Release da
te 02.2011
509
Input/output
module C-I/
O-10 up to rele
ase /EE

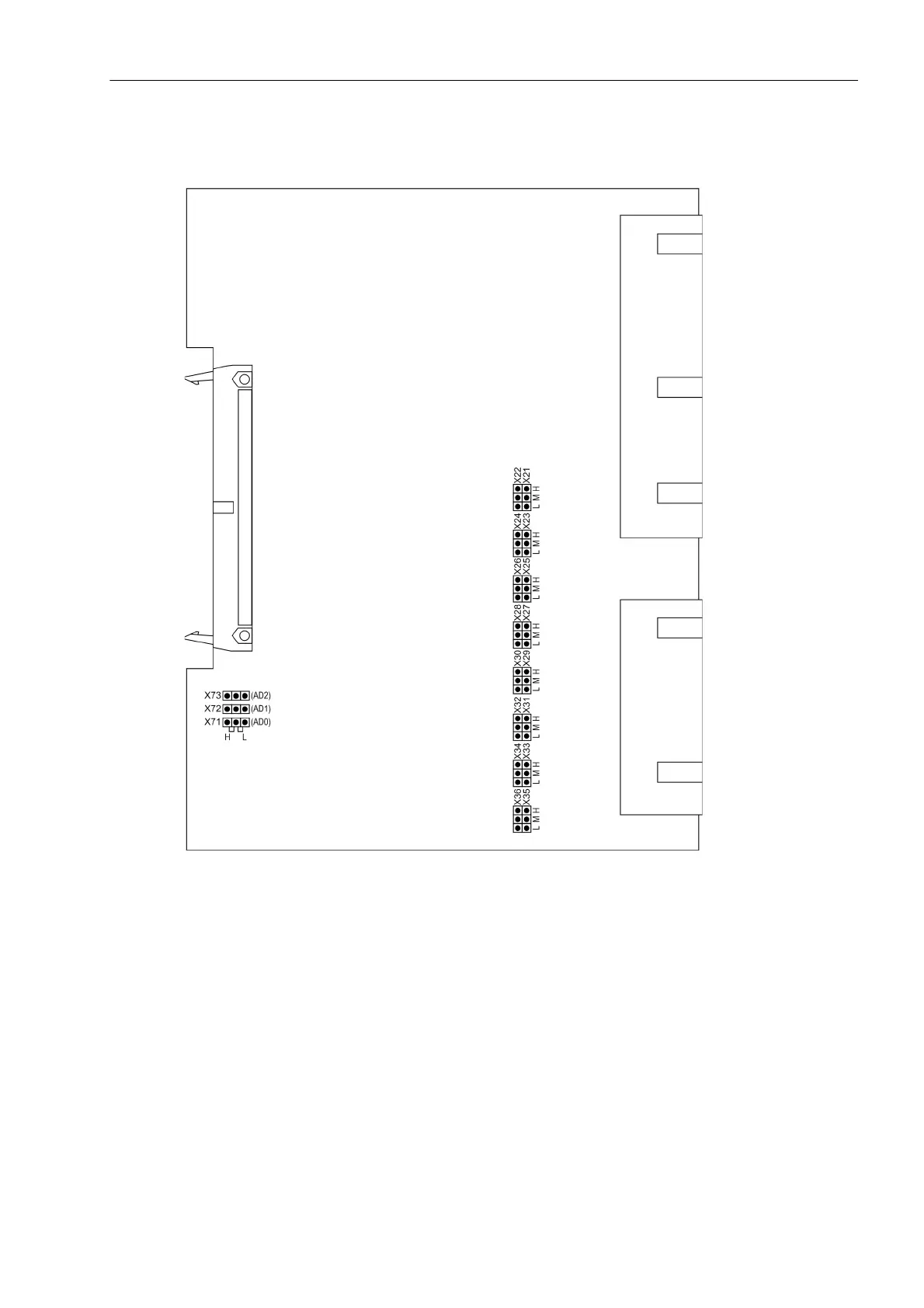

Figure
3-6
Input/output board C-I/O-10 up to releas
e 7SD5 .../EE with representation of the jumper
settings required for checking configuration settings
