Typical circuit diagrams
16.2 Control by pushbutton
SIRIUS 3RW30 / 3RW40
Manual, 10/2018, NEB535199502000/RS-AB/005
163
16.2.2
Control of the 3RW40 by pushbutton

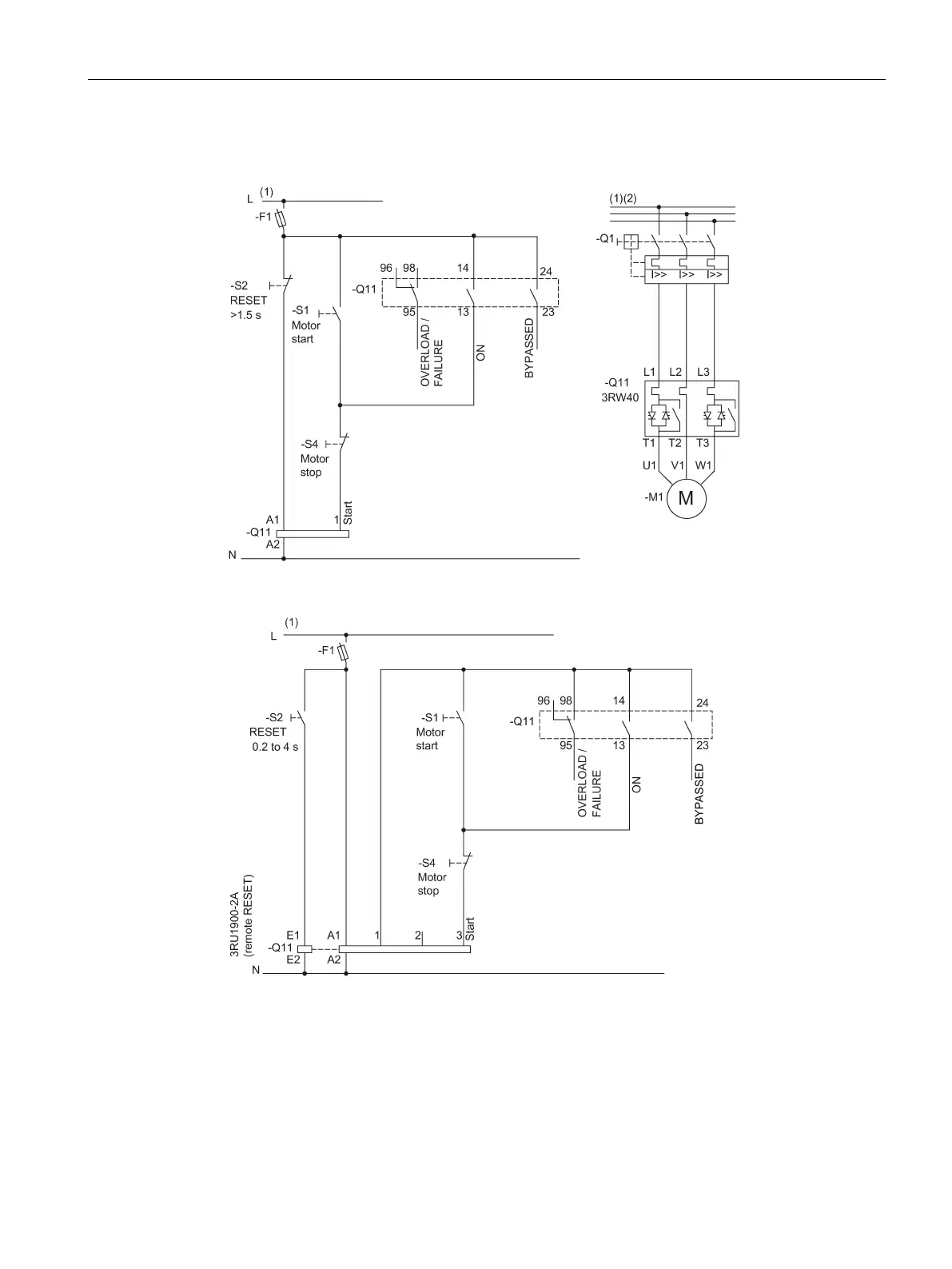

Figure 16-3 Wiring of the 3RW402 - 3RW404 control circuit and 3RW402 - 3RW407 main circuit
Figure 16-4 Wiring of the control circuit 3RW405 - 3RW407
(1) For permissible main and control voltage values (dependent on article number), refer to
chapter Technical data (Page 127).
(2) Alternatively, the motor feeder can be assembled as a fuseless or fused version with type
of coordination 1 or 2. For the assignment of fuses and switching devices, refer to chapter
Technical data (Page 127)
