Siemens SIRIUS 3RW40 - Control of the 3 RW40 with a Main Contactor

Typical circuit diagrams
16.6 Control with an optional main / line contactor
SIRIUS 3RW30 / 3RW40
Manual, 10/2018, NEB535199502000/RS-AB/005
175
16.6.2
Control of the 3RW40 with a main contactor

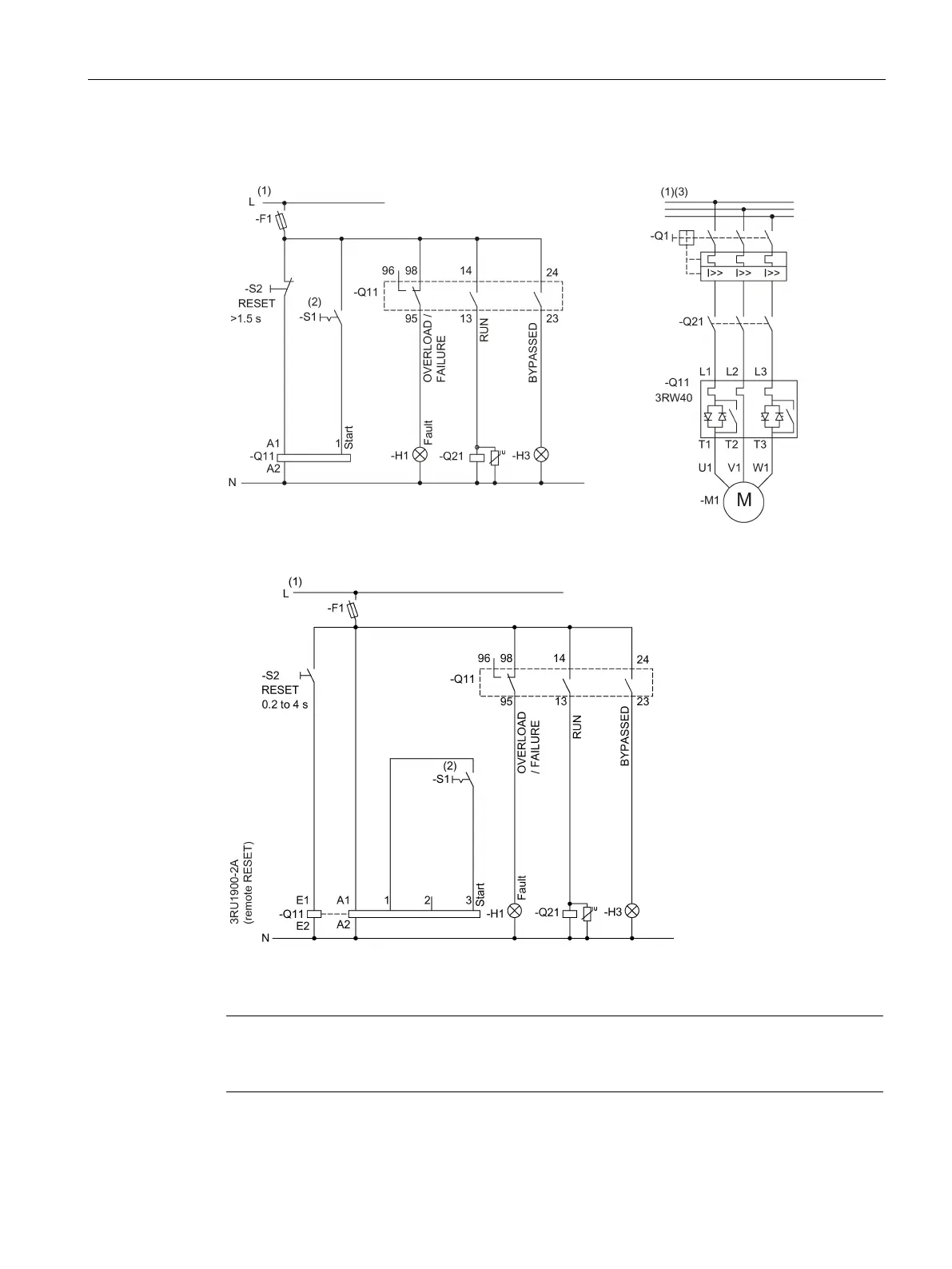

Figure 16-15 Wiring of the 3RW402 - 3RW404 control circuit and 3RW402 - 3RW407 main circuit
Figure 16-16 Wiring of the control circuit 3RW405 - 3RW407
Note
If a soft stop is required, the function of output 13/14 must be reparameterized to
"RUN"
(refer to
Commissioning the 3RW40 (Page 109)).
