Siemens SIRIUS 3RW40 - 3 RW405 - 3 RW407 EMERGENCY STOP and 3 TK2823 Safety Relay

Typical circuit diagrams
16.9 EMERGENCY STOP
SIRIUS 3RW30 / 3RW40
Manual, 10/2018, NEB535199502000/RS-AB/005
187
16.9.3
3RW405 - 3RW407 EMERGENCY STOP and 3TK2823 safety relay

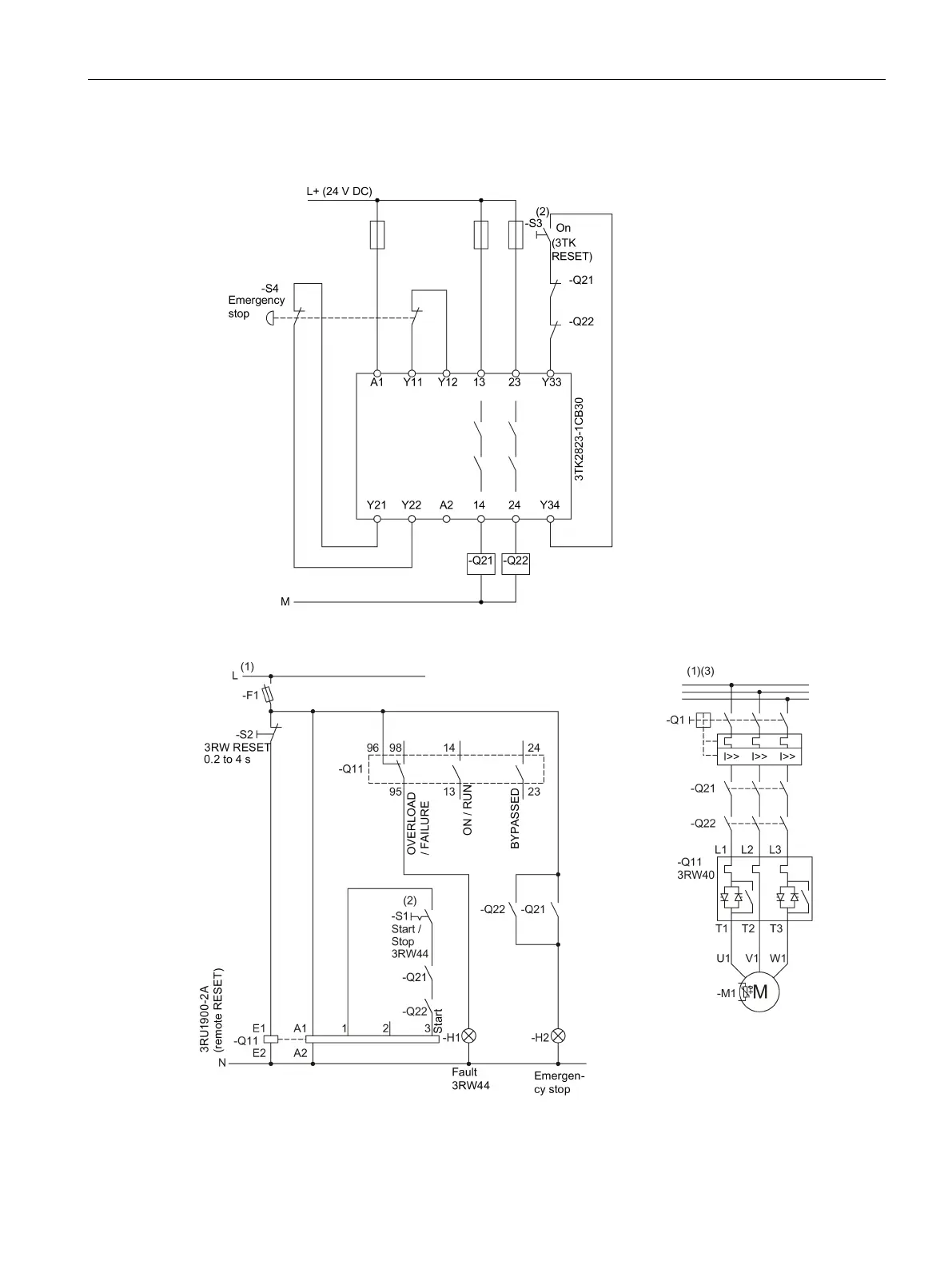

Figure 16-27 Wiring of the EMERGENCY STOP control circuit and the 3TK28 safety relay
Figure 16-28 Wiring of the 3RW405 - 3RW407 control circuit and 3RW402 - 3RW407 main circuit
