Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
112 Manual, 09/2016, A5E03656507520A/RS-AB/003
/

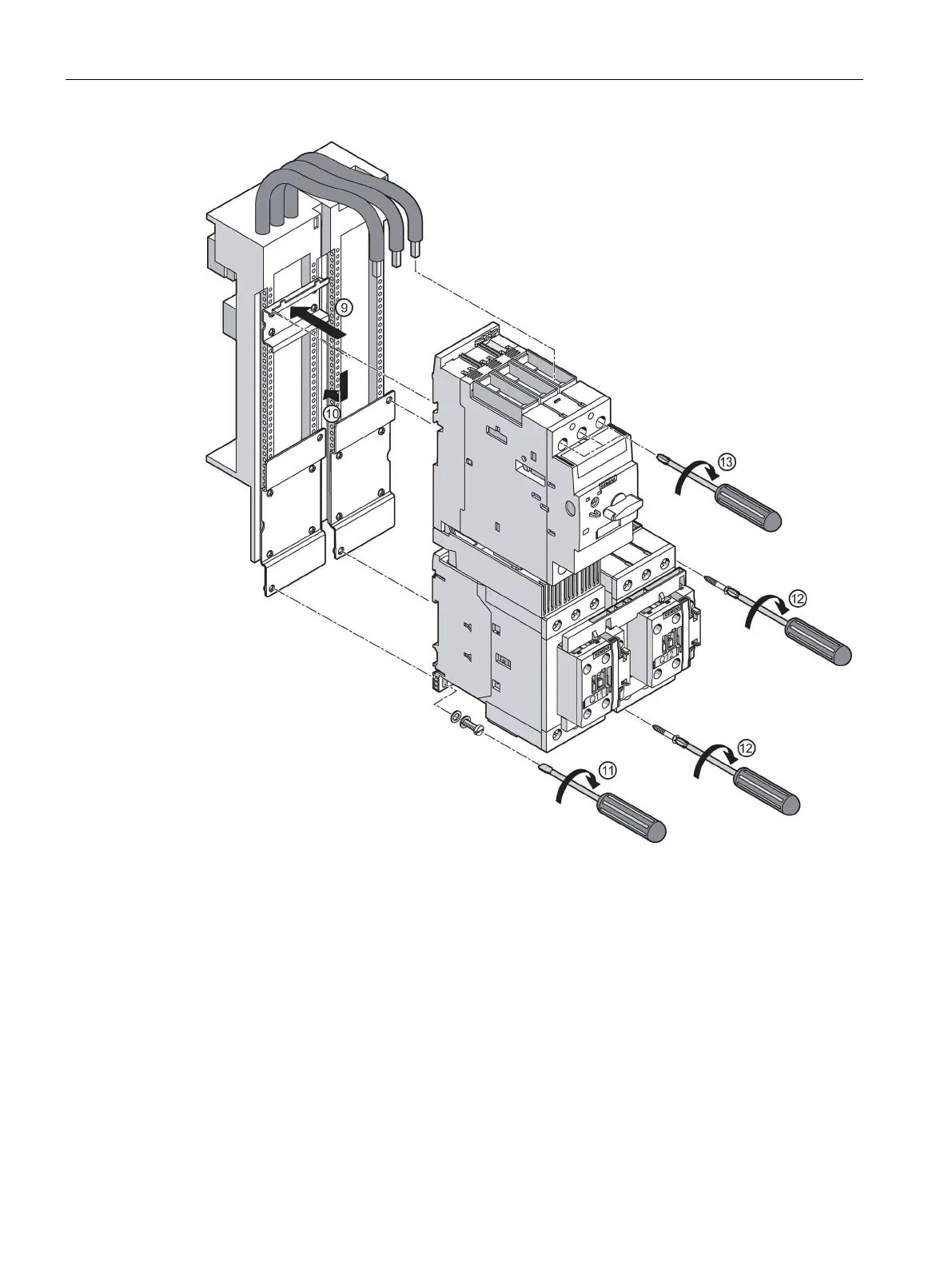

Hook the feeder into the upper hooking position of the motor starter protector, and swivel the
feeder to the busbar adapter.
Screw the left-hand contactor tight diagonally into the openings provided using two M4
screws, plain washers and spring washers.
Tightening torque: 1.5 ... 1.6 Nm
Screw the right-hand contactor tight diagonally into the openings provided using two M4
screws, plain washers and spring washers.
Tightening torque: 1.5 ... 1.6 Nm
Insert the connecting cables into the corresponding main conductor terminals. Screw the
main conductor terminals tight.
