Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
86 Manual, 09/2016, A5E03656507520A/RS-AB/003

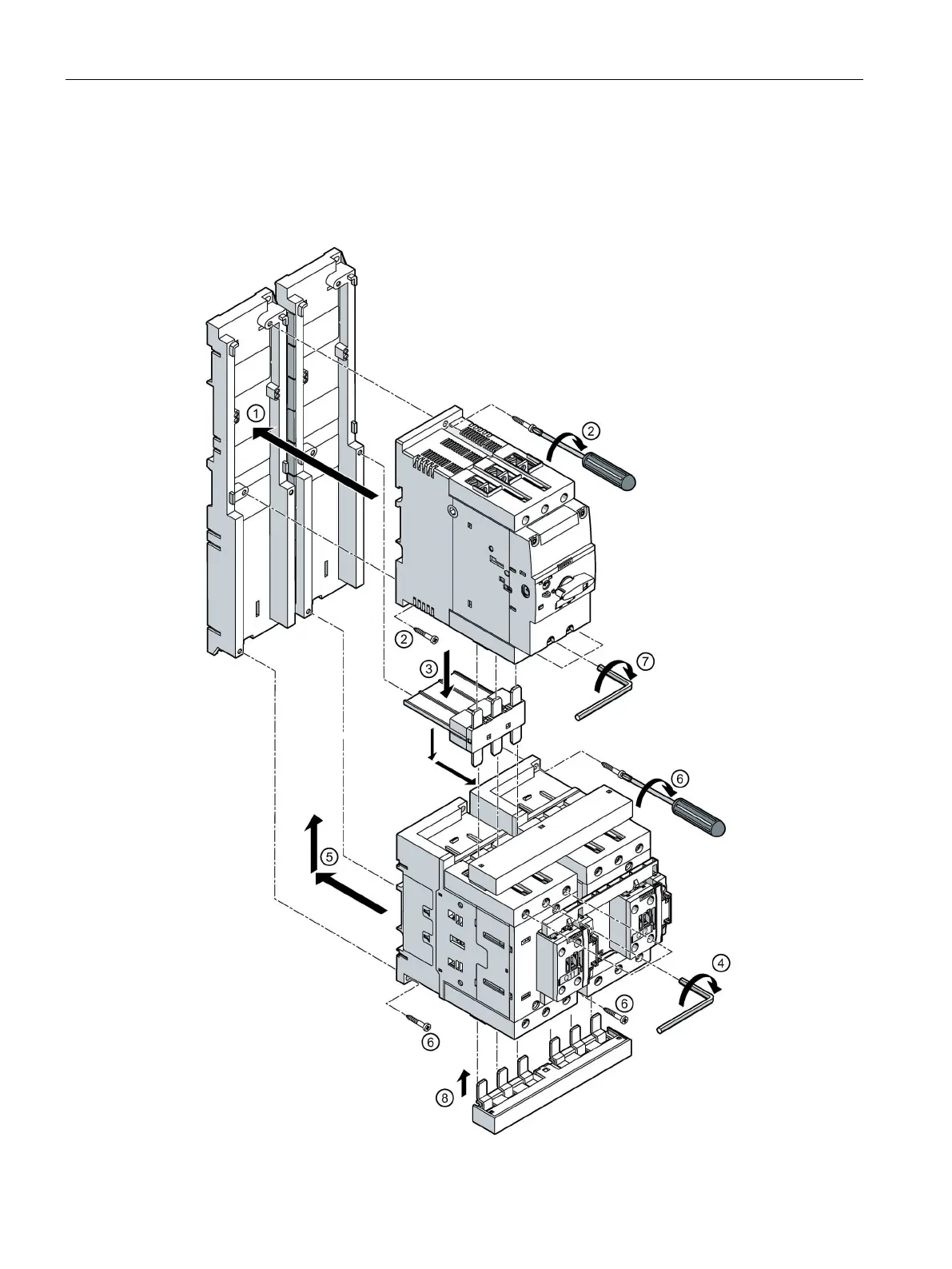

Mounting the reversing starter on the DIN rail adapter: Size S3
The figure below illustrates how the size S3 reversing starter with screw-type connection
system is mounted on a DIN rail adapter. The devices are snapped onto the DIN rail adapter
and screwed onto the adapter.
