Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
48 Manual, 09/2016, A5E03656507520A/RS-AB/003
7.2.2
Load feeder with screw-type connection system
Mounting an S00 load feeder with screw-type connection system
①
Mount the link module on the contactor.
②
Insert the pins into the corresponding main conductor terminals.
③
Screw the main conductor terminals tight.
④
Attach the contactor and the link module to the bottom of the motor starter protector. Insert the
guide tabs into the slots on the motor starter protector.
⑤
Insert the pins into the corresponding main conductor terminals.
⑥
Screw the main conductor terminals tight.

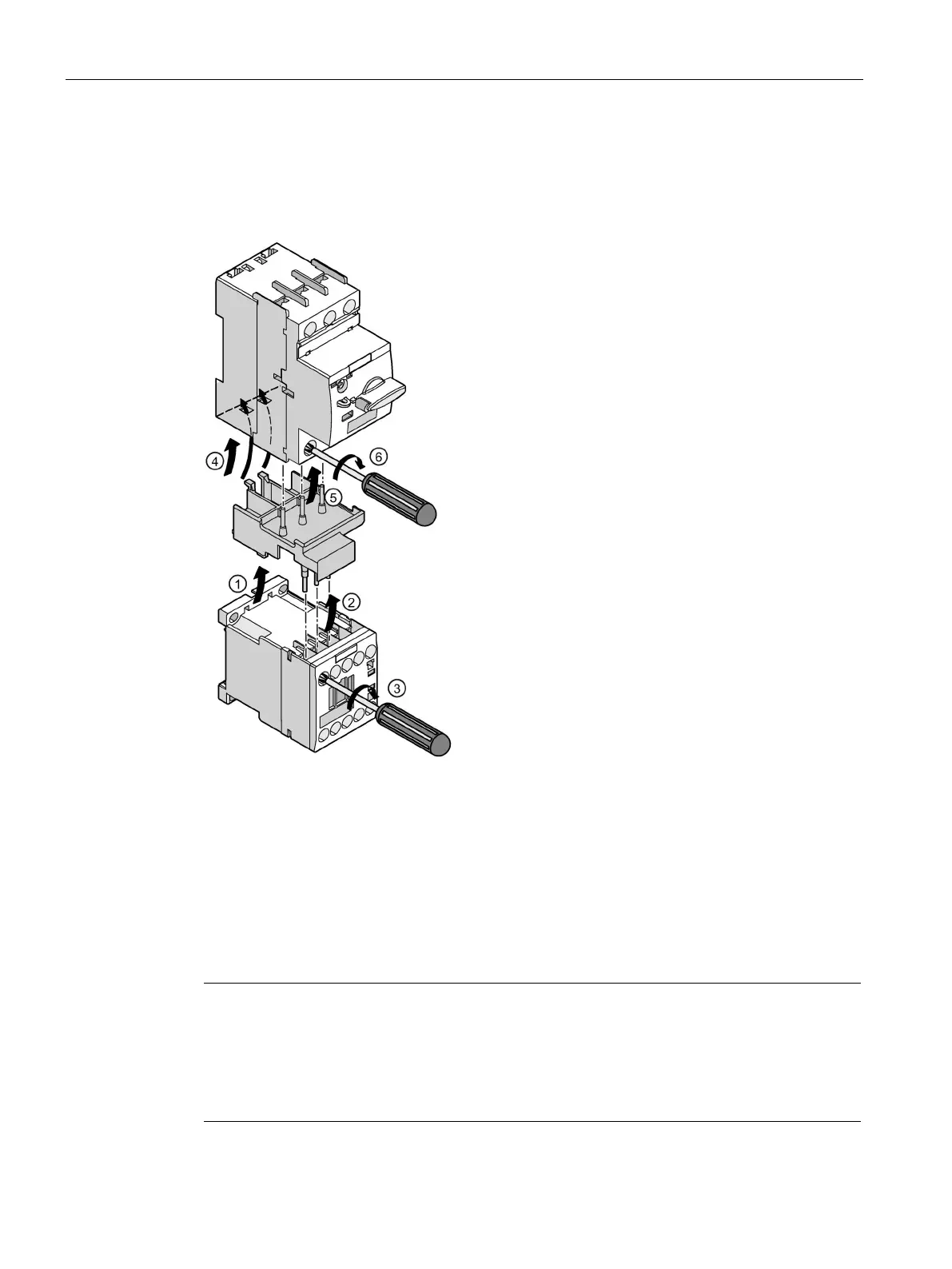

Figure 7-1 Mounting an S00 load feeder with screw-type connection system
Note
Mounting the S0 motor starter protector and S00 contactor with screw-type connection
system
The link module for
the S00 load feeder can also be used to mount an S00 contactor on an
S0
motor starter protector. The link module for the S0
load feeder can also be used to mount
an S0
contactor on an S00 motor starter protector.
