Dimension drawings (dimensions in mm)
C.3 3RA2 fuseless load feeders – Size S00 to S2 for 60 mm busbar systems
SIRIUS - SIRIUS 3RA load feeders
158 Manual, 09/2016, A5E03656507520A/RS-AB/003
C.3
3RA2 fuseless load feeders – Size S00 to S2 for 60 mm busbar
systems
3RA2 fuseless load feeders – Size S00 for 60 mm busbar systems

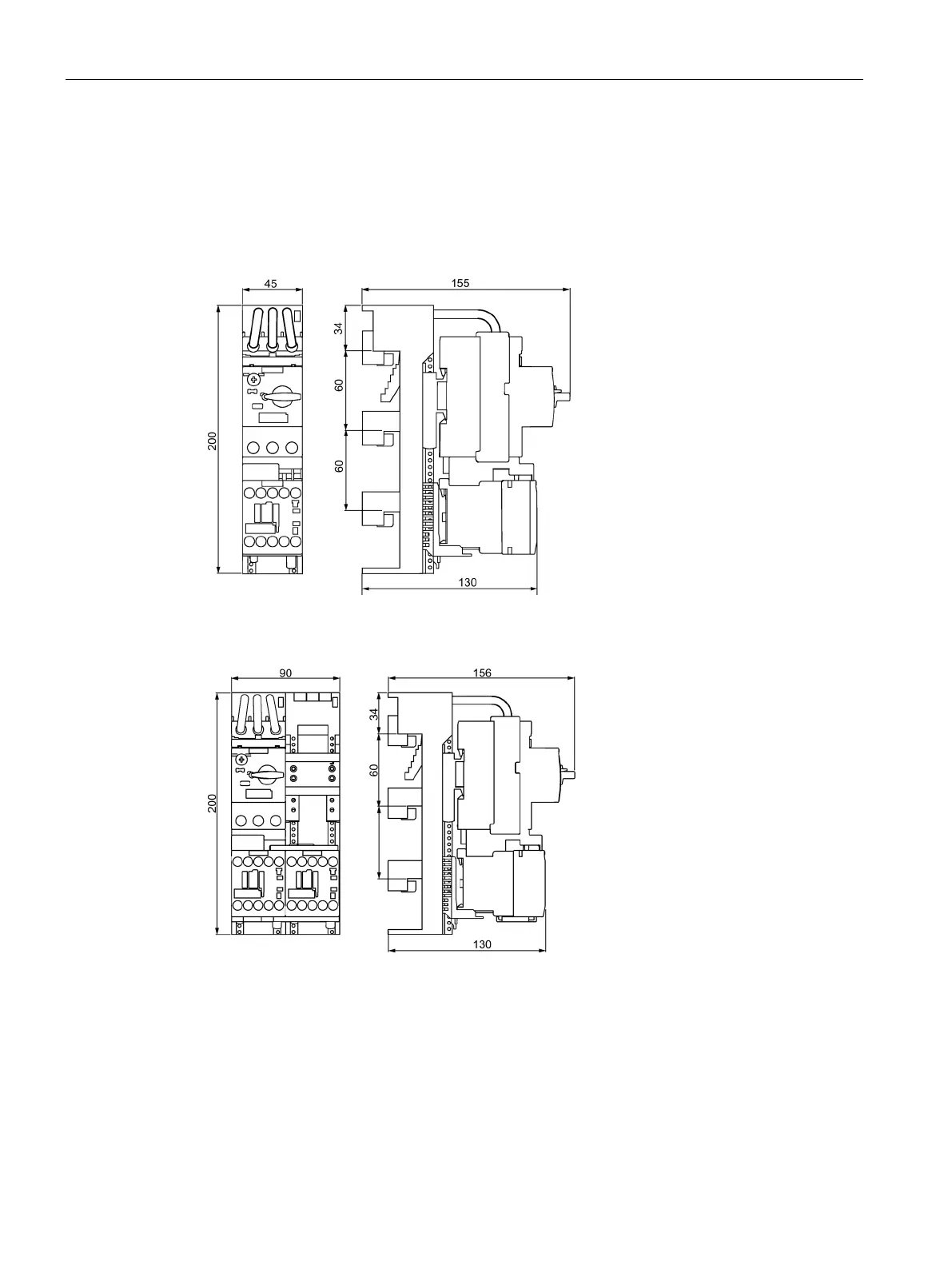

Figure C-22 S00 direct-on-line starter, AC/DC, screw-type connection system
3RA2110-..D
Figure C-23 S00 reversing starter, AC/DC, screw-type connection system
3RA2210-..D
