Disassembling an S00 load feeder with spring-loaded connection system
1a Slide the screwdriver into the opening on the link module as shown in the figure and press it
down.
1b Position the screwdriver on the link module as shown in the figure and press it down to release
the spring-loaded terminals.

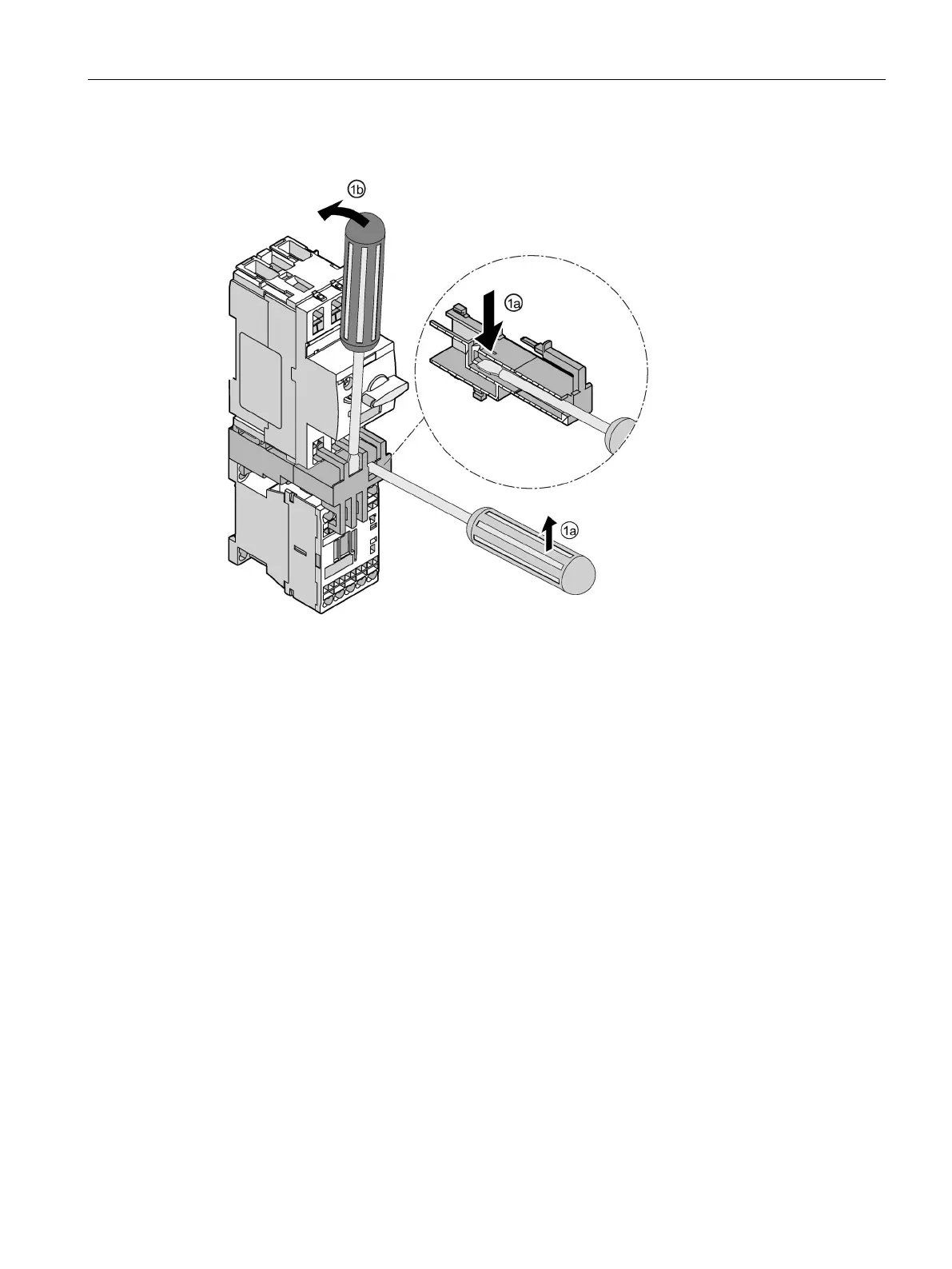

Figure 7-6 Disassembling an S00 load feeder with spring-loaded connection system
