Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
95
Adjusting the busbar adapter to suit the busbar thickness
Push the 3 fastening blocks down.
Adjust the fastening blocks in accordance with the busbar thickness (5 mm/10 mm).
Push the fastening blocks up until they engage.

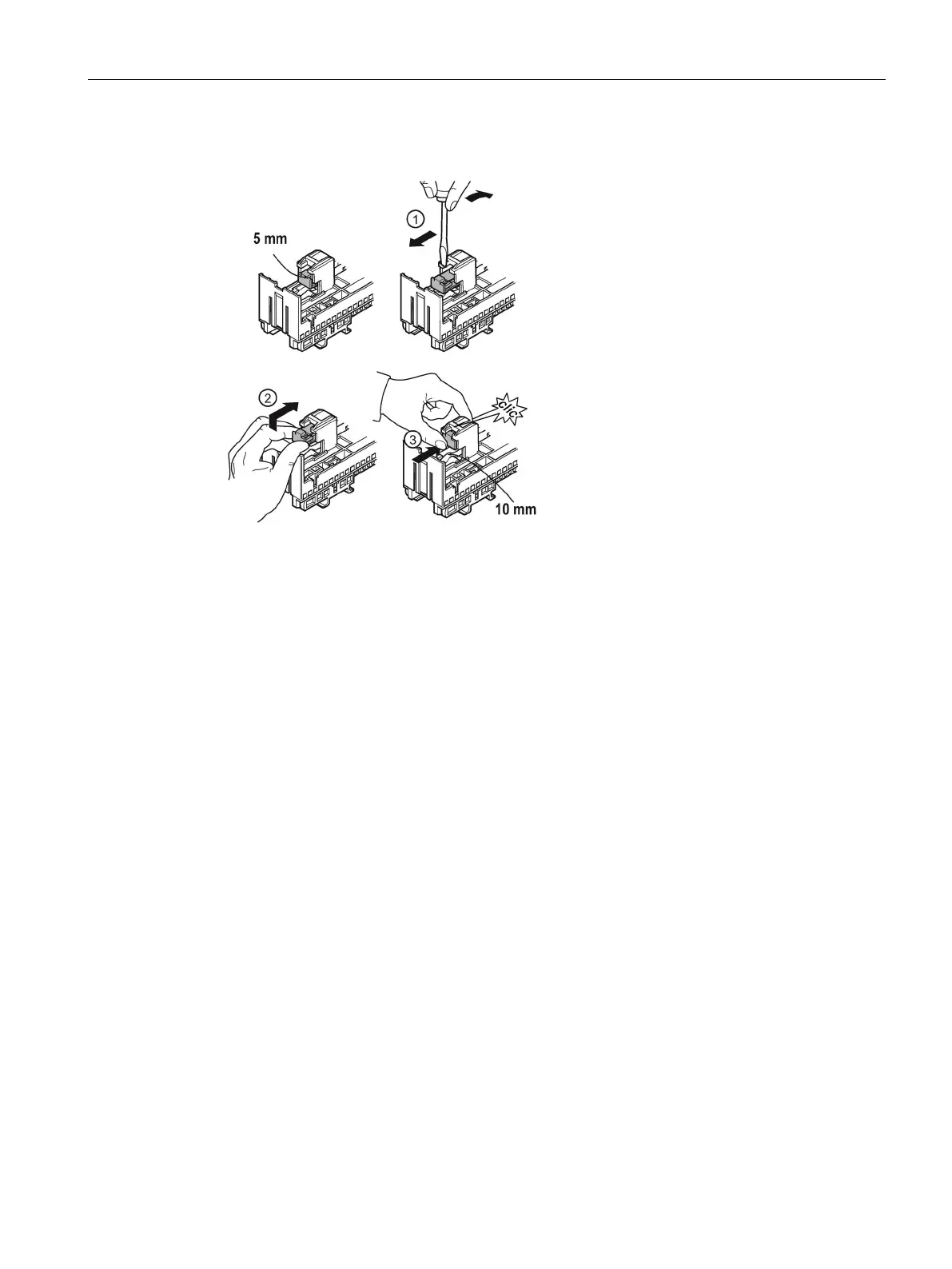

Figure 7-36 Adjusting the busbar adapter to suit the busbar thickness
