Siemens SIRIUS User Manual

Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
90 Manual, 09/2016, A5E03656507520A/RS-AB/003
7.3.3
On busbar system
All device combinations can be mounted on a 60 mm busbar system. Busbar adapters have
to be used for busbar mounting. One adapter is required for direct-on-line starters; a pair of
adapters is required for reversing contactor assemblies.

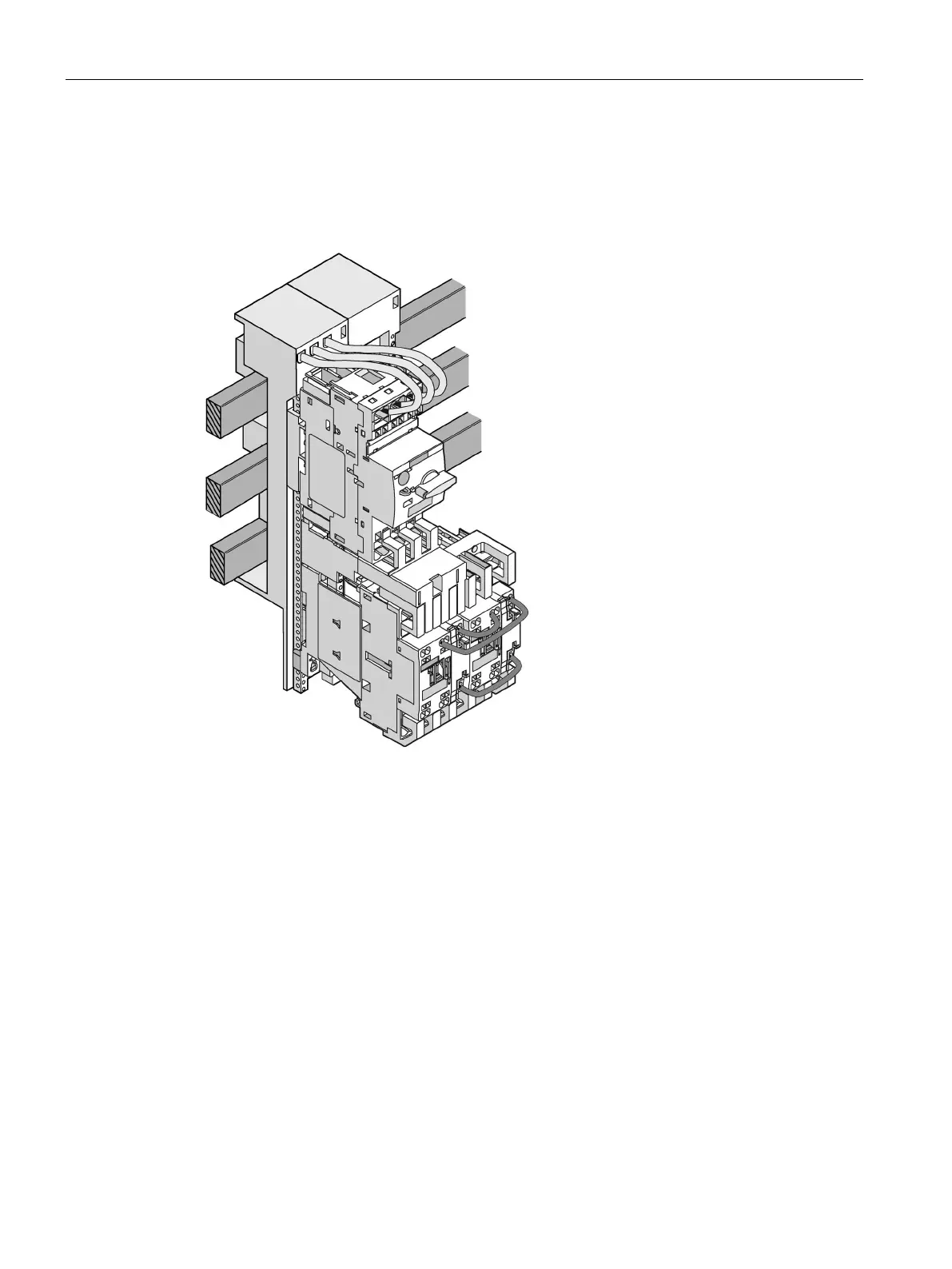

Figure 7-30 Example of size S0 reversing starter with spring-loaded connection system mounted on
busbar
The busbar adapters and the associated mounting parts can be purchased as accessories.
Component parts of the different mounting variants can be determined via our Online
Configurator (Page 27).
Adapter types for busbars
Busbar adapters and device holders: Busbar adapters are available with or without pre-
assembled connecting cables. Busbar adapters without connecting cables are known as
"device holders".
Busbar adapters and device holders
are available in the adapter lengths 200 mm and
260 mm. All device combinations can be mounted on the long adapter.
Size S2 is distinguished by width and by the number of pre-mounted DIN rails.

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
