Siemens SIRIUS - Mounting an S0 Load Feeder with Spring-Loaded Connection System

Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
56 Manual, 09/2016, A5E03656507520A/RS-AB/003
Mounting an S0 load feeder with spring-loaded connection system
①
Insert the connectors (a) on the link module into the corresponding main conductor
terminals (a) on the contactor. Make sure that the guide tabs are inserted into the slots on the
contactor.
Insert the guide tabs (c) on the link module into the slots on the contactor at the same time.
The link module will sit flush with the contactor on the left- and right-hand sides.

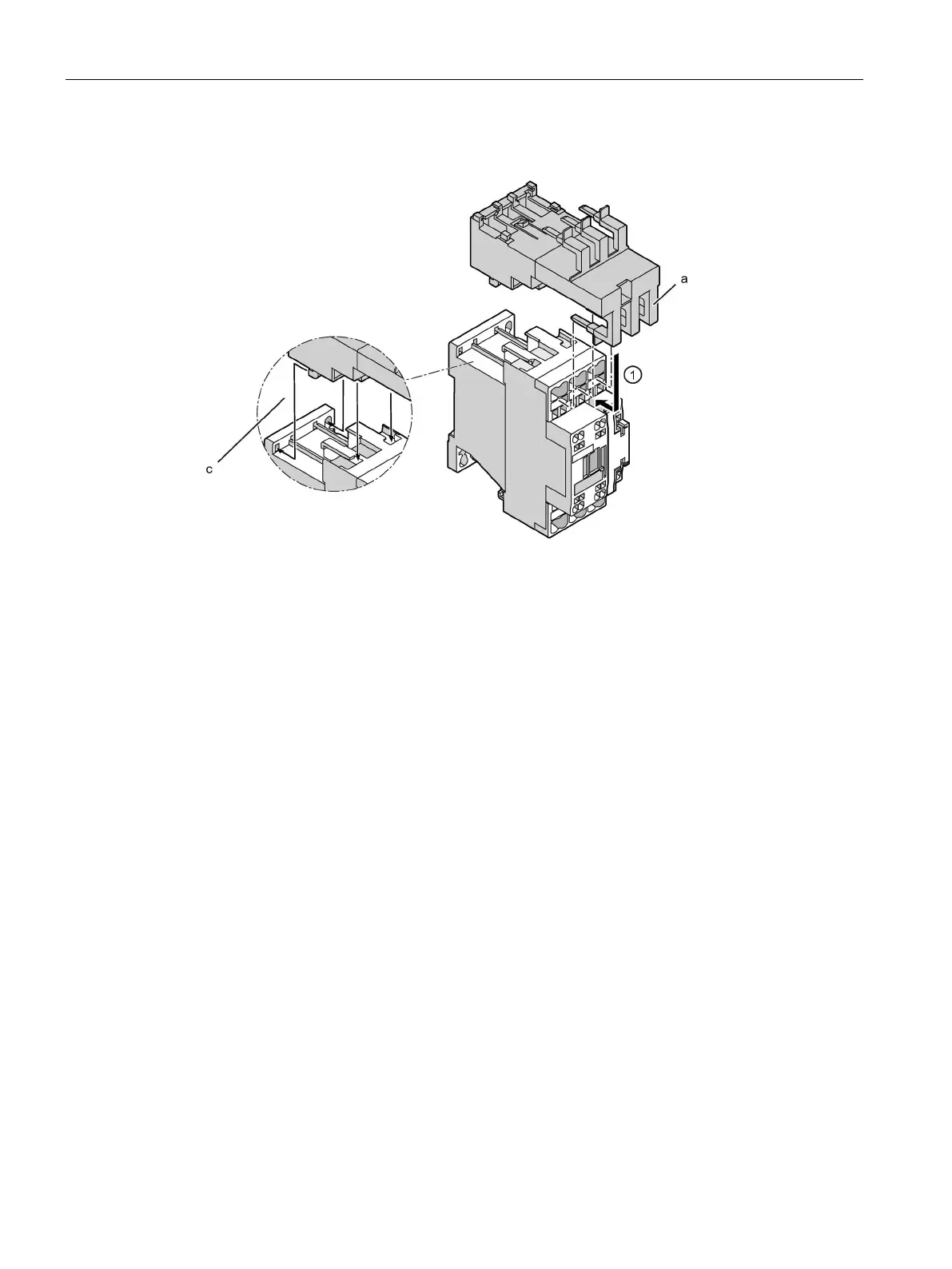

Figure 7-10 Mounting an S0 load feeder with spring-loaded connection system
