Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
55
Take the link module off the contactor.

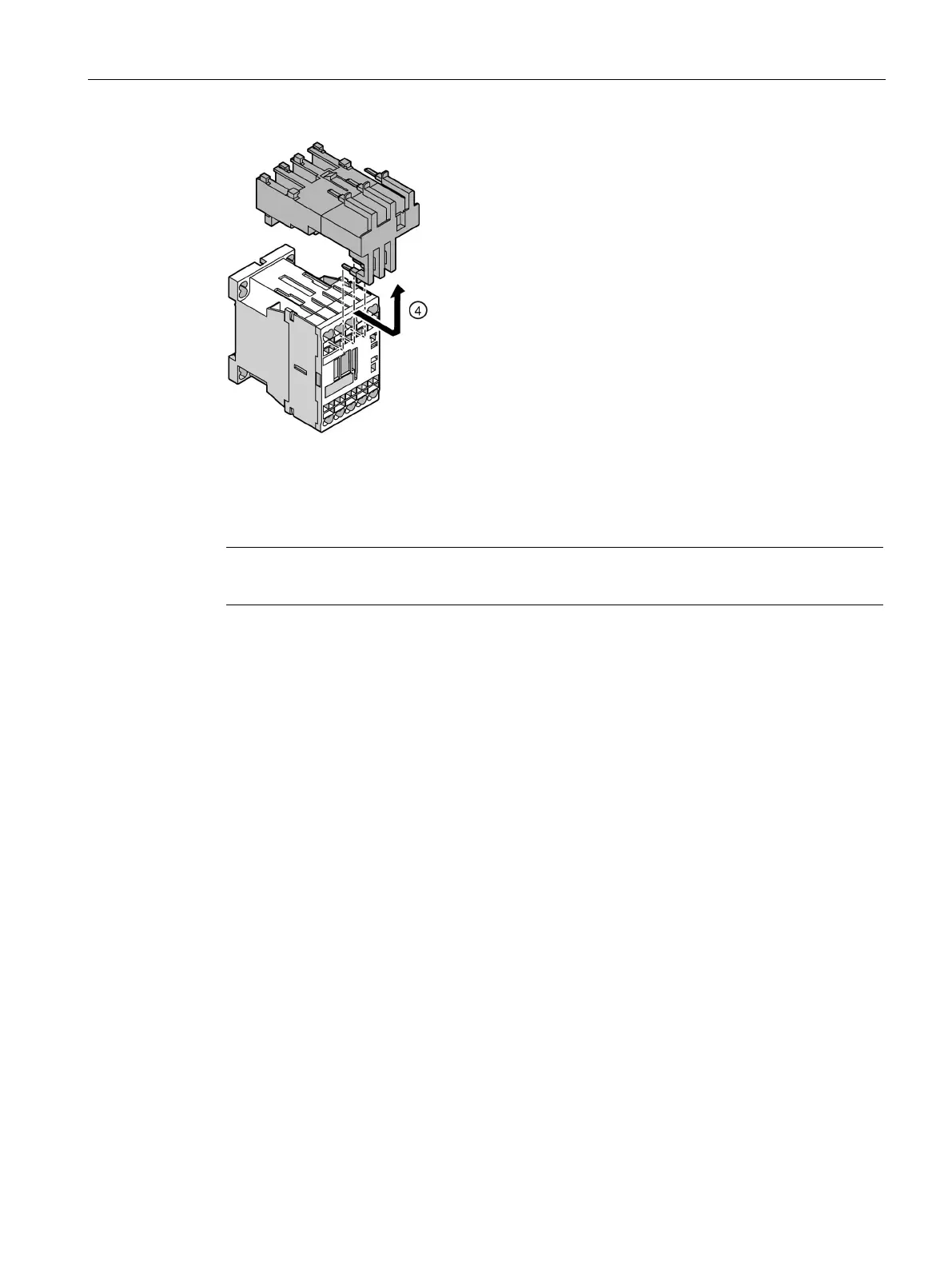

Figure 7-9 Disassembling an S00 load feeder with spring-loaded connection system
Note
Proceed in the same way to disassemble the reversing starter (size
S00).
