Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
115
Size S2

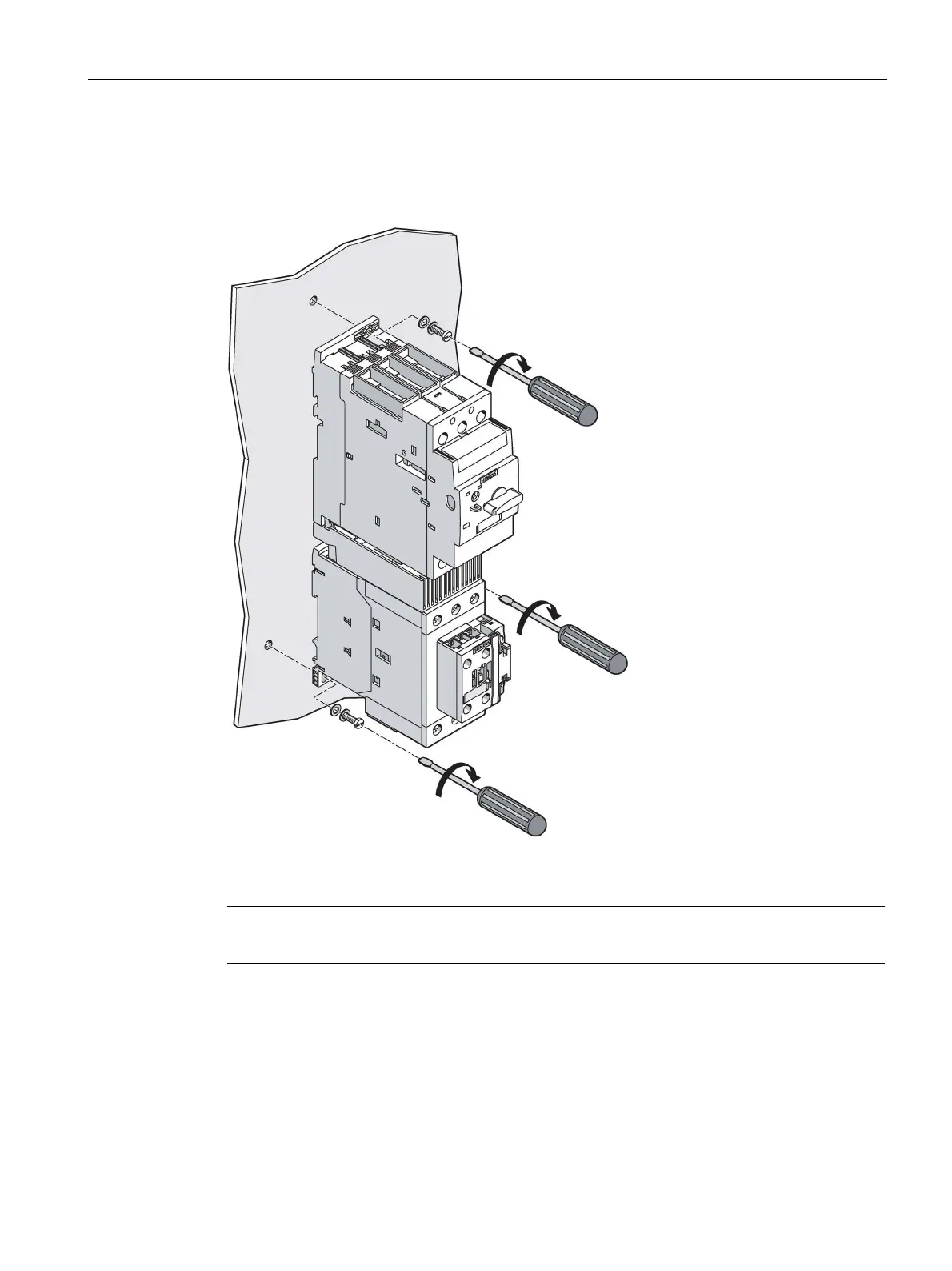

The figure below shows mounting on a base plate without DIN rail adapter for direct-on-line
starters of size S2.
Figure 7-50 Mounting on base plate (direct-on-line starter, screw-type connection system, size S2)
Note
3 x M4 screws (1.2 ... 1.5 Nm) should be used to fasten the contactors.
Disassembling the DIN rail adapter from the base plate
To disassemble the DIN rail, unscrew the screws and remove the adapter.
