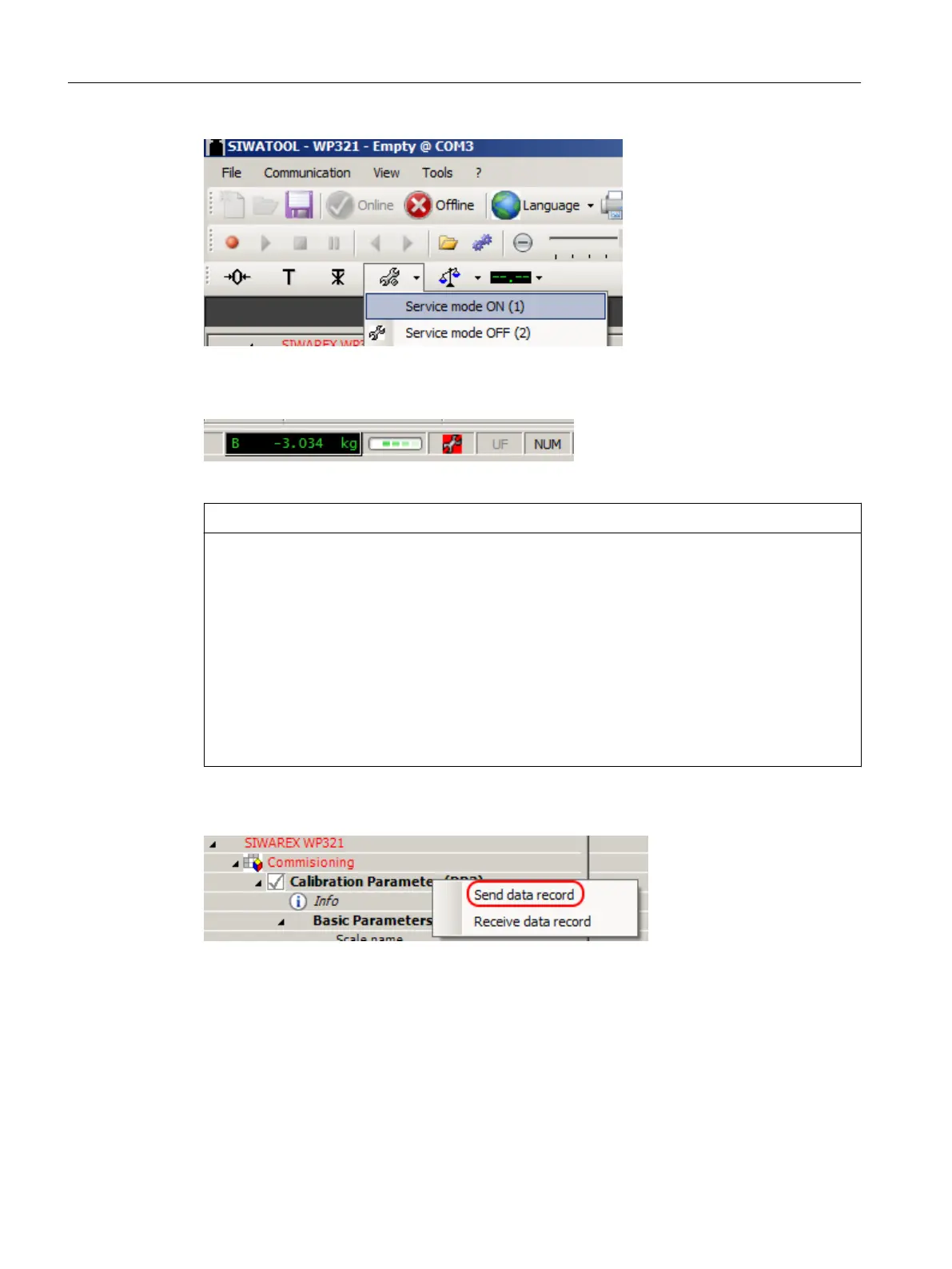

⇒ After switching on service mode, the following red wrench icon is displayed in the SIWATOOL
next to the weight value.
Figure 7-11 SIWATOOL: Symbol for service mode
NOTICE
Parameters overwritten
It is not possible to send or receive individual parameters within a data record. The complete
data record must initially be received for every change to parameters within it. The desired
parameter can then be edited and the data record sent again.
If not all the data can be received from the scale before the parameter change, the active
offline parameters in the scale can be overwritten by the "Send data record" function.
Therefore, proceed as follows:
1. Select the "Receive data record" function.
2. Change the parameters.
3. Select the "Send data record" function.
● Right-click on "Calibration parameter (DR3)" and select "Send data record".
Figure 7-12 SIWATOOL calibration parameters: Send data record
⇒ All parameter settings in DR3 are identical between PC and SIWAREX. All calibration
parameters (DR3) are shown in black.
Assign calibration weight
● After sending the calibration parameters to SIWAREX, select "Set Calibration Point 0" in the
Service menu with an empty scale. Empty scale means only the mechanical dead load (e.g.
empty container) rests on the load cells.
Commissioning
7.4 Fast commissioning (Quick Start) with SIWATOOL
SIWAREX WP321
48 Operating Instructions, 08/2019, A5E33715669A-AD
