Siemens UL 1066 - Trip Unit Circuitry for ETU745-776; With Breaker Status Sensor (BSS)  and Metering Module

To Next Page

To Previous Page

8 – 7

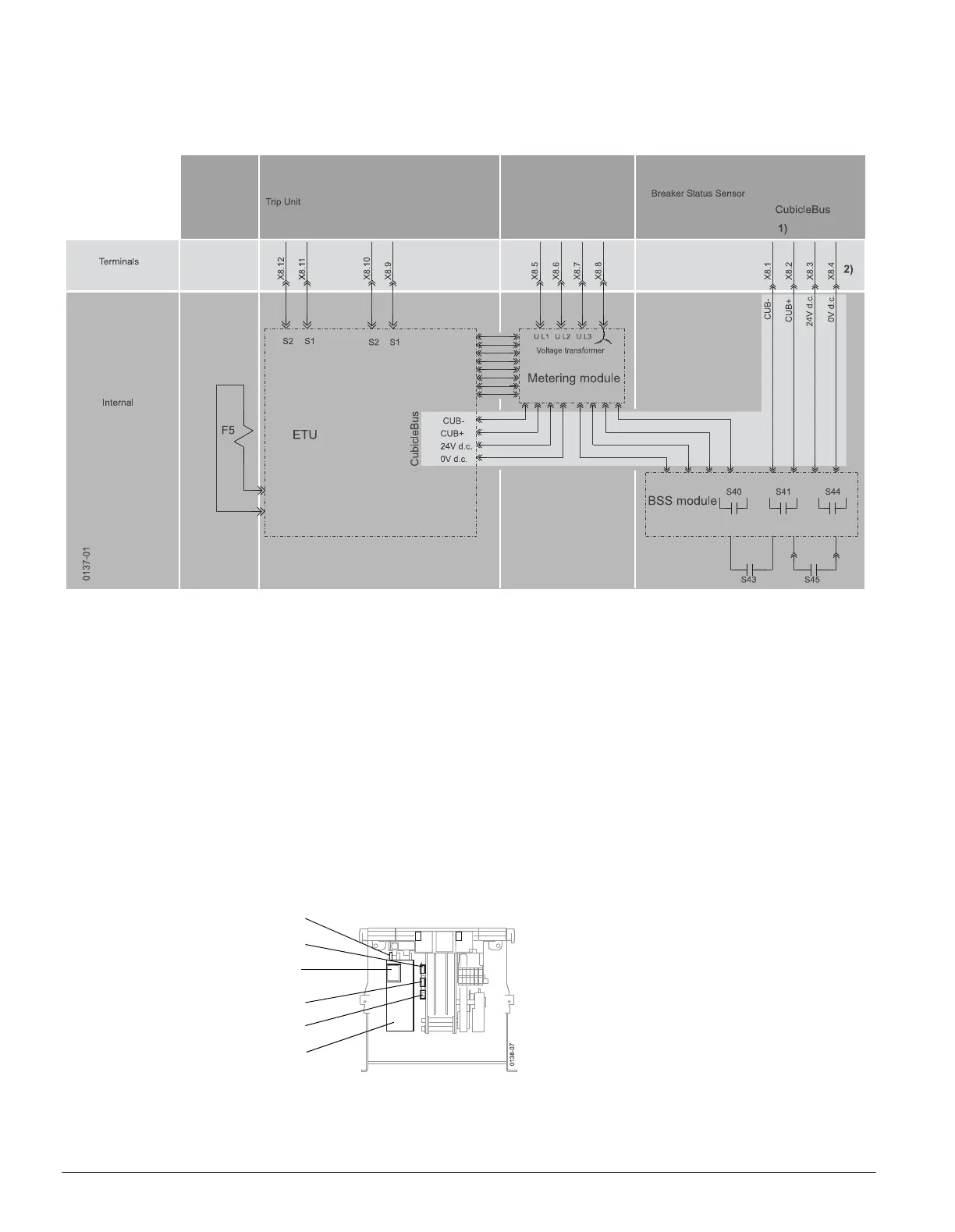

8.8 Trip unit circuitry for ETU745-776

8.8.1 With Breaker Status Sensor (BSS) 

and metering module

Terminating resistor 120  0.5 W on X8-1 / X8-2, if no external c module

If no metering module and no BSS module is used: 

Direct connection X8 to ETU

- BSS module: Breaker Status Sensor

- c: Bus system for interconnection of circuit breaker components and connection to the fieldbus:

PROFIBUS-DP with COM15

MODBUS with COM16

- ETU: Trip Unit

- S40 signaling switch "ready-to-close"

- S41 signaling switch for spring charge level

- S43 signaling switch 2nd shunt trip F3 or F4

- S44 signaling switch for main contacts OPEN / CLOSE position

- S45 Bell Alarm signaling switch

External Air Core

Sensor Input

External Iron Core

Sensor Input

S43 *)

S45

S40

S44

S41

ETU

*) same installation location as S23
