9.1.7 ETU displays

9.1.7.1 Alphanumeric display

Trip units ETU745 and ETU748 can be retrofitted with an alphanumeric display.

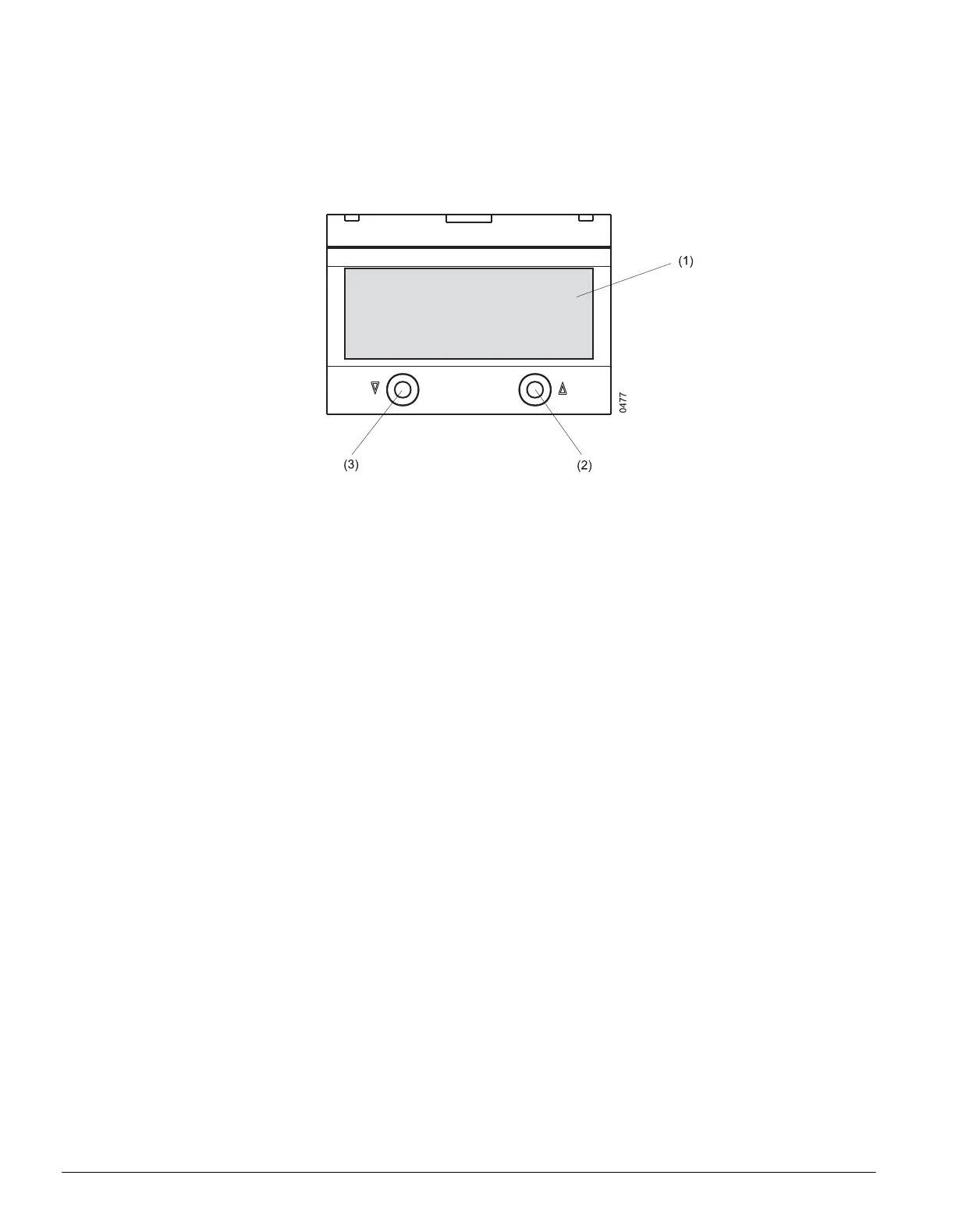

Overview

(1) Screen (4 lines with 20 characters each)

(2) Up key

(3) Down key
