Instructions, use and maintenance manual Pag. 32/49
SAU 160-200
Tension the bowl belts

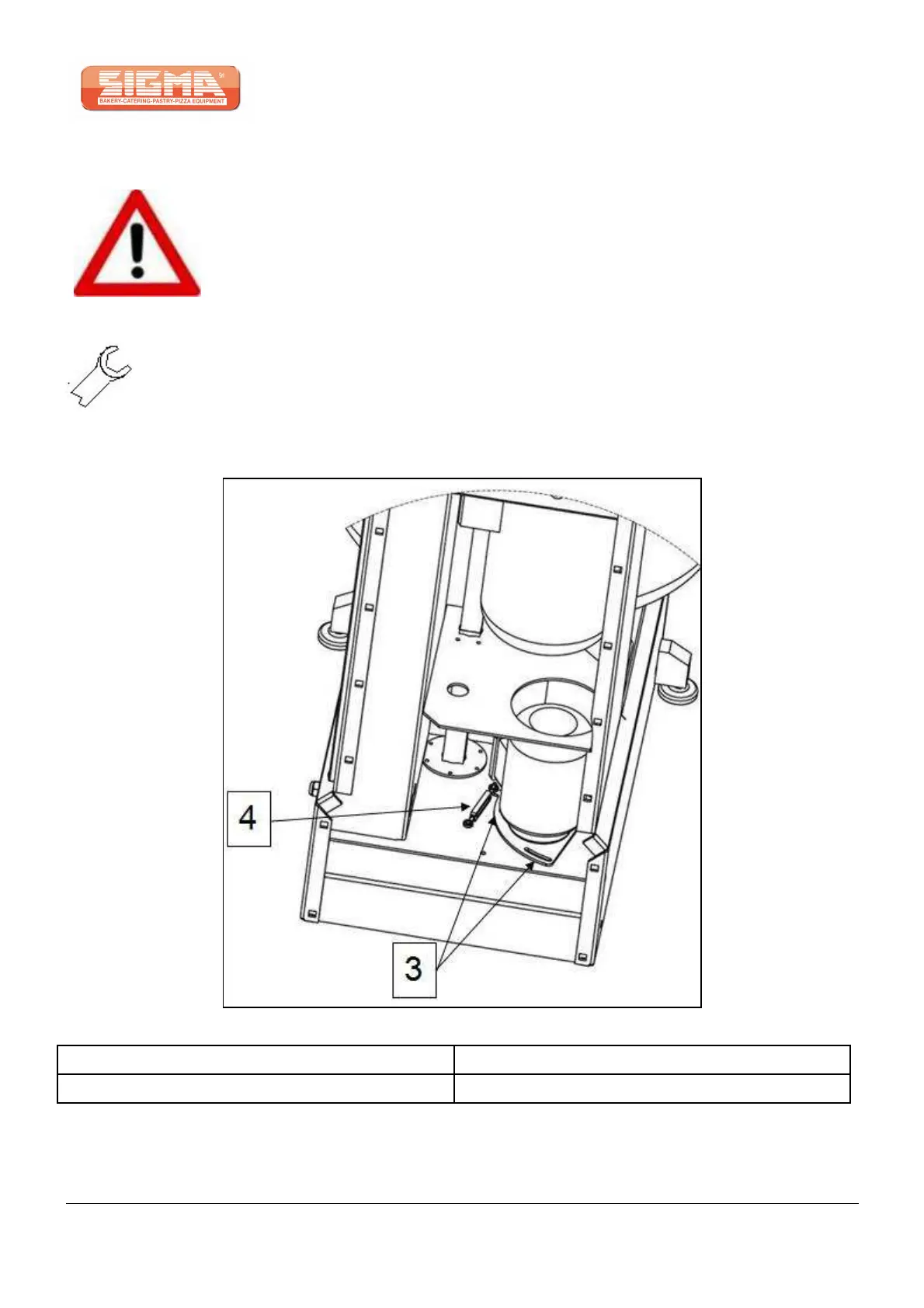

After tensioning the chain, always check the tension of the bowl rotation motor belt. To do this, loosen
the upper casing and remove the rear casing, loosen the motor carrier plate screws (3) and
tighten/loosen the tensioner (4) to tension the belt. Put the rear casing back, tighten the screws and
repeat the procedure for the upper casing and test the machine.
To ensure the correct belt tension, see chap. 14.4.2.
INTERVAL METHOD
s F,M
FOR ANY MAINTENANCE AND CLEANING OPERATIONS, THE MACHINE MUST BE
OFF AND DISCONNECTED FROM THE ELECTRIC LINE.
Before performing any of the following operations, wear PPE such as: shoes with
reinforced tip and non-slip sole, gloves.
The following operations are ONLY necessary to tension the chain, if case of
replacement, contact the seller.
