6.3 Control System "Spincontrol Basic"
6.3.1 User interface
1 Display
2 Set key
3 Program key
4 Arrow keys
5 Lid key
6 Start/Stop key
7 Quick run key

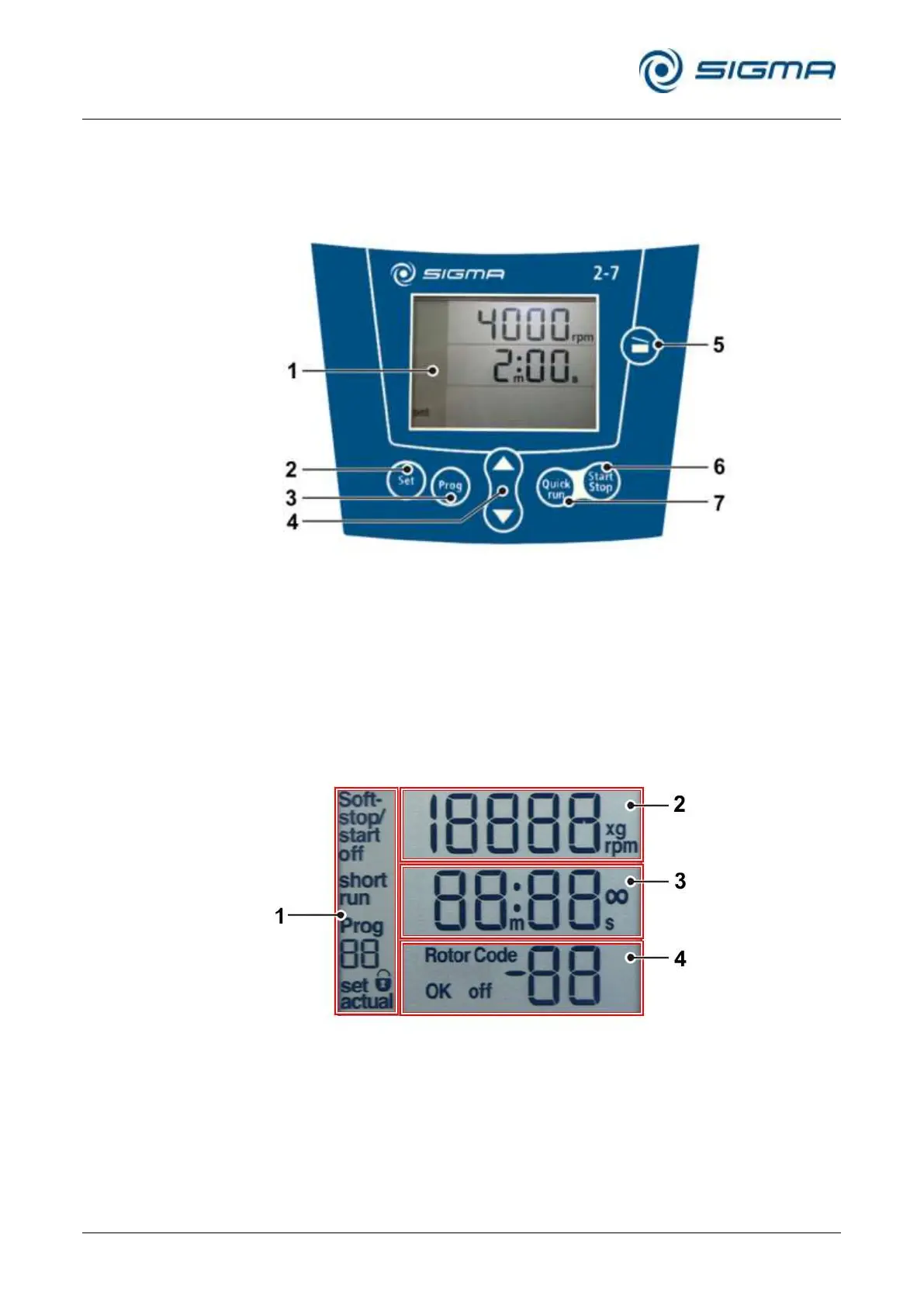

Fig. 8: User interface (example)
The centrifuge is started directly via the user interface. When the centrifuge
is switched on, all segments will be illuminated for a short time. It is now
ready for operation.
6.3.2 Display
The centrifuge display has the following display fields:
1 Field for
deceleration
curves, run mode,
and programs
2 Speed / RCF field
3 Time field
4 Field for rotor
selection
Fig. 9: Display, completely illuminated
