64 Accessories
SIGMA Manual Number 41018
Revision AR

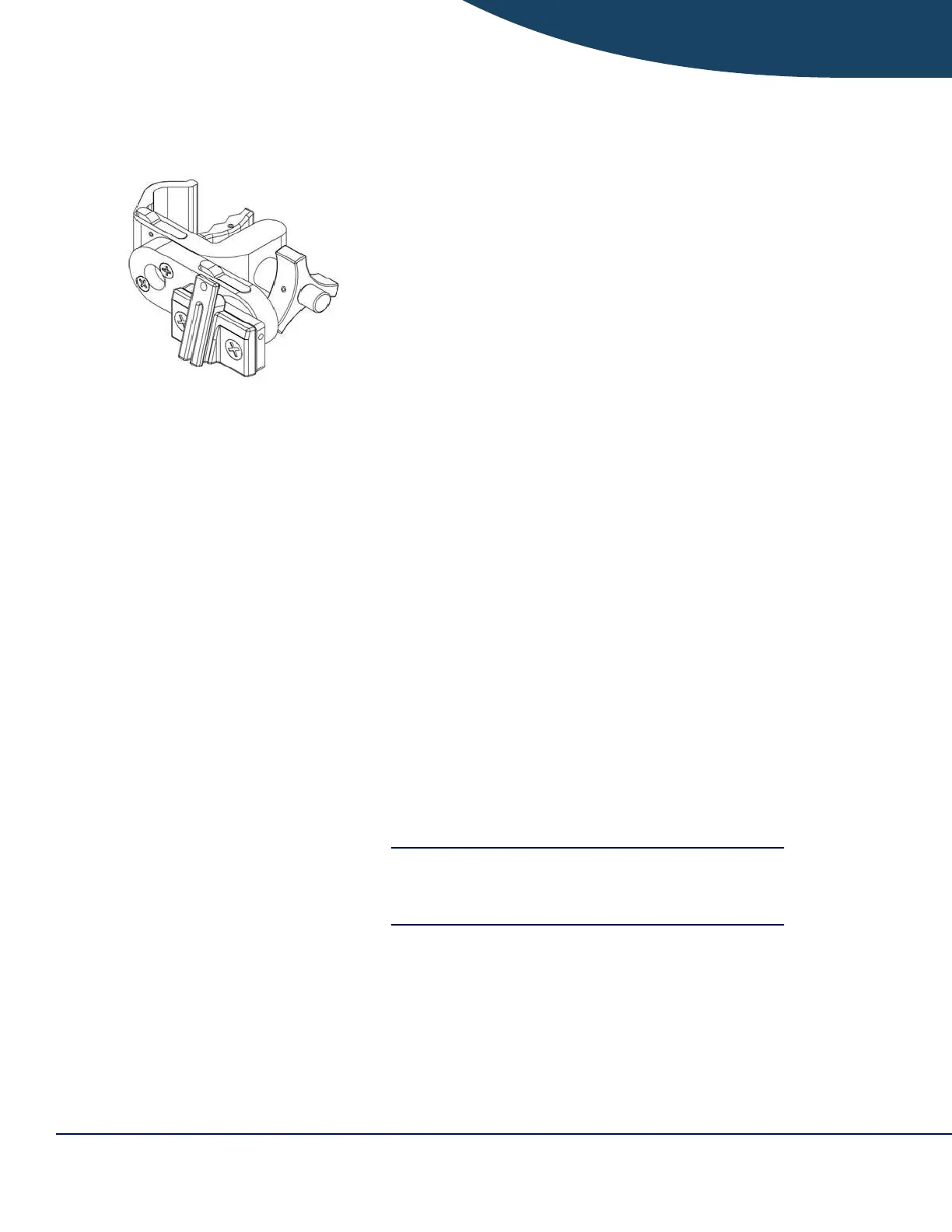

Double Rotating Pole Clamp Assembly
SIGMA Part Number (P/N) 35743
■ The double rotating feature of Double Rotating
Pole Clamp enables the pump to be offset on left
or right side of the single (standard) IV pole diam-
eters ranging from 0.75” to 1.25”.
■ The clamp can also be clamped to hospital bed-
side rail diameters ranging from 0.75” to 1.25”.
■ Mount the clamp on the IV pole by rotating the
triangular knob clockwise. The cylindrical protru-
sion on the triangular knob helps to rotate the
knob faster.
■ The pump mounted on the adaptor can be rotated
clockwise or counterclockwise in 90° increments
by pressing the lever located on the arm.
■ The pump can be offset by the length of the arm
by rotating the arm in clockwise or counterclock-
wise in 90° increments by pressing the lever
located on the body of the clamp.
■ Make sure the pump is in vertical orientation with
the key hole at the top of the pump while in oper-
ation.
■ Refer to the cleaning section of this manual for
compatible cleaners.
■ Refer to the installation manual, P/N 41092 on
how to install the clamp on the pump.
■ The weight of the clamp is less than 1.2 lbs.
■ The dimension of the clamp is less than 7.0” long
X 2.5” high X 4.5” wide.
CAUTION: Always operate the pump in vertical
direction with the key hole at the top of
the pump.
