Signode TABLE-TYER - Main Roller Assembly; Main Roller Shaft and Roller; Gears and Bearings; Fasteners and Keys

12/14/10

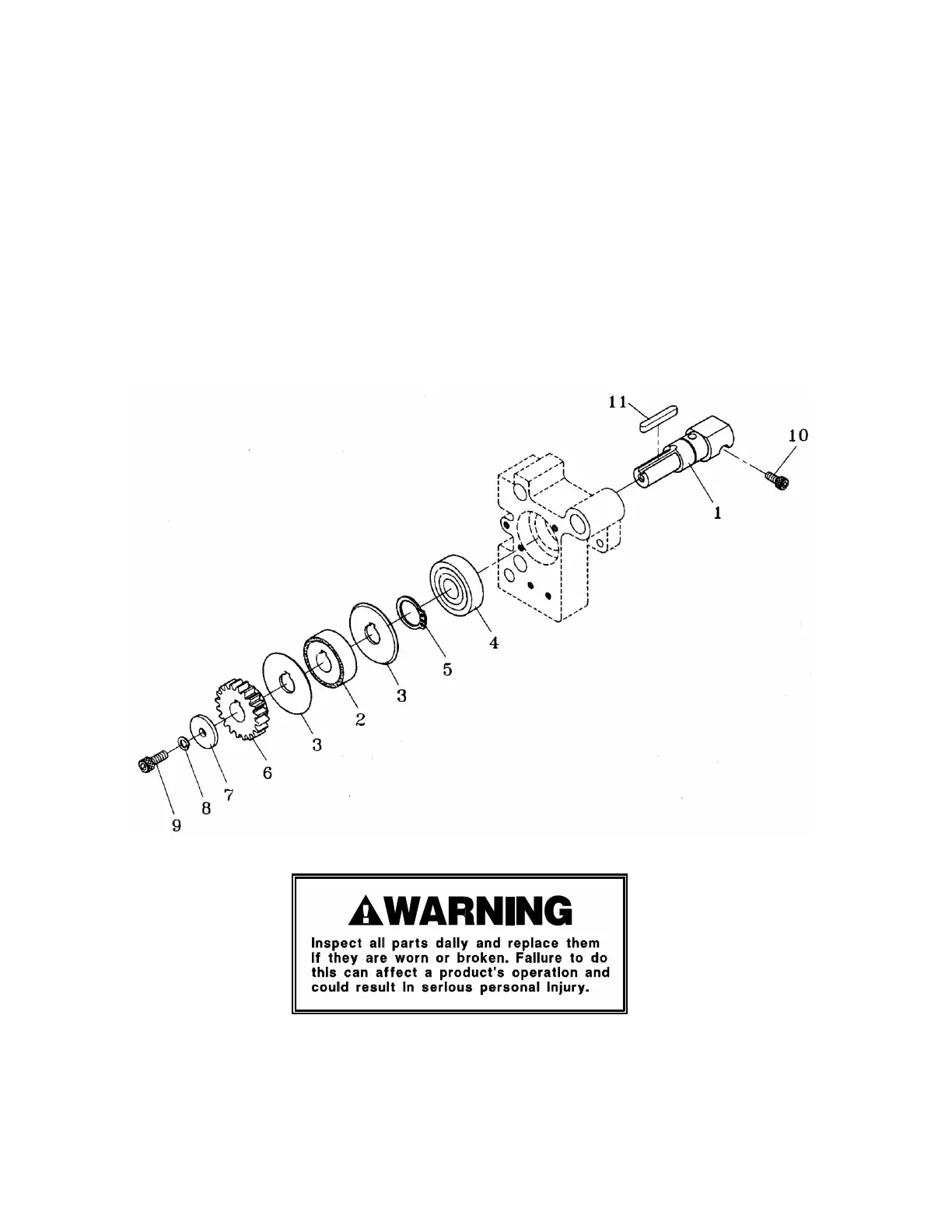

MAIN ROLLER ASSEMBLY
KEY
1
QTY
1
PART NO.
500599
DESCRIPTION
Main Roller Shaft
2
1
500600
Main Roller
3
2
500601
Side Plate
4
1
500602
Bearing, 6004ZZ
5
1
500603
Stop Ring, S-20
6
1
500604
Gear
7
1
500605
Washer
8
1
500508
SW, M6
9
1
500495
HBS, M6x16
10
1
500496
HBS, M5x12
11
1
500606
Key 5x5x35
24
