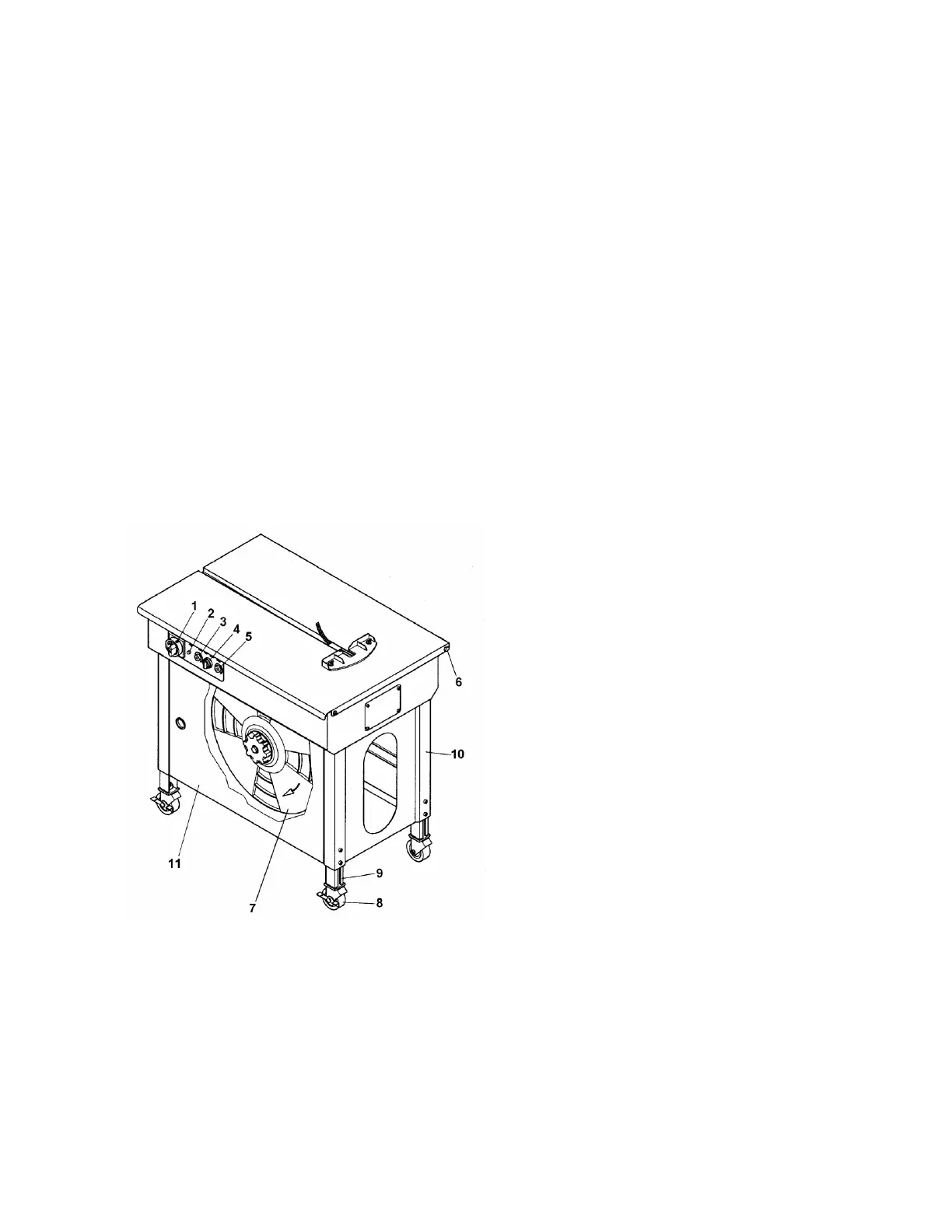

MAJOR COMPONENTS - EXTERNAL
1. Main switch
2. Heater lamp, lamp will light on when proper sealing temperature is reached
3. Potentiometer, strap feed length
4. Button, strap feed and reset
5. Potentiometer, strap tension adjustment
6. Table top, hinge
7. Strap reel
8. Caster (2 locking)
9. Adjustable legs (Table-Tyer)
10. Frame
11. Access Door
6
