Signode TABLE-TYER - Feed Shooter Assembly; Feed Shooter and Components; Fasteners and Rings

12/14/10

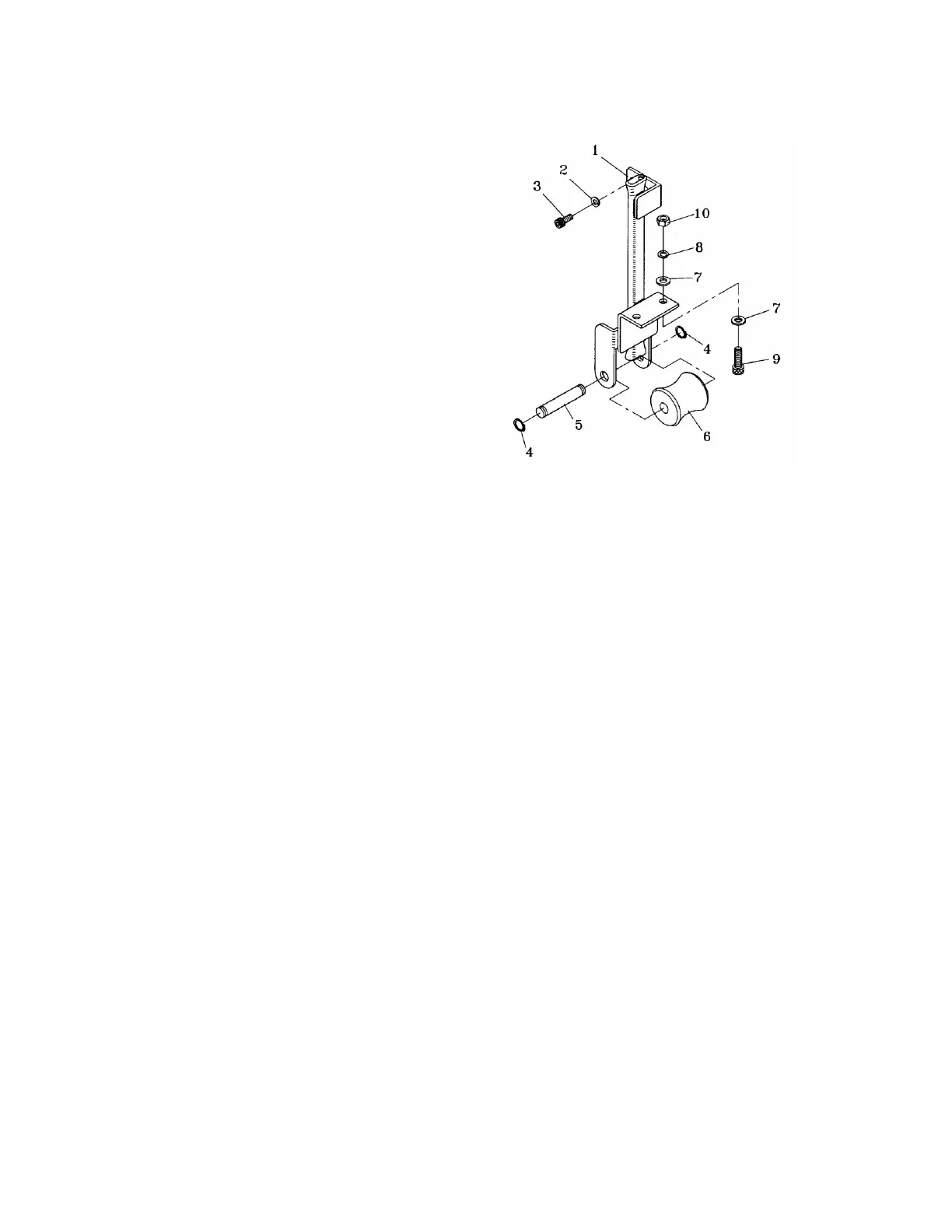

FEED SHOOTER ASSEMBLY
KEY
1
QTY
1
PART NO.
500628
DESCRIPTION
Feed Shooter
2
2
500500
SW,M5
3
2
500512
HBS, M5x16
4
2
500629
Ring, S10
5
1
500630
Shaft
6
1
500631
Roller
7
4
500632
PW,M6
8
2
500508
SW,M6
9
2
500495
HBS, M6x16
10
2
500633
HN,M6
25
