Signode TABLE-TYER - Top Plate Assembly; Package Guide and Shafts; Fasteners and Options

12/14/10

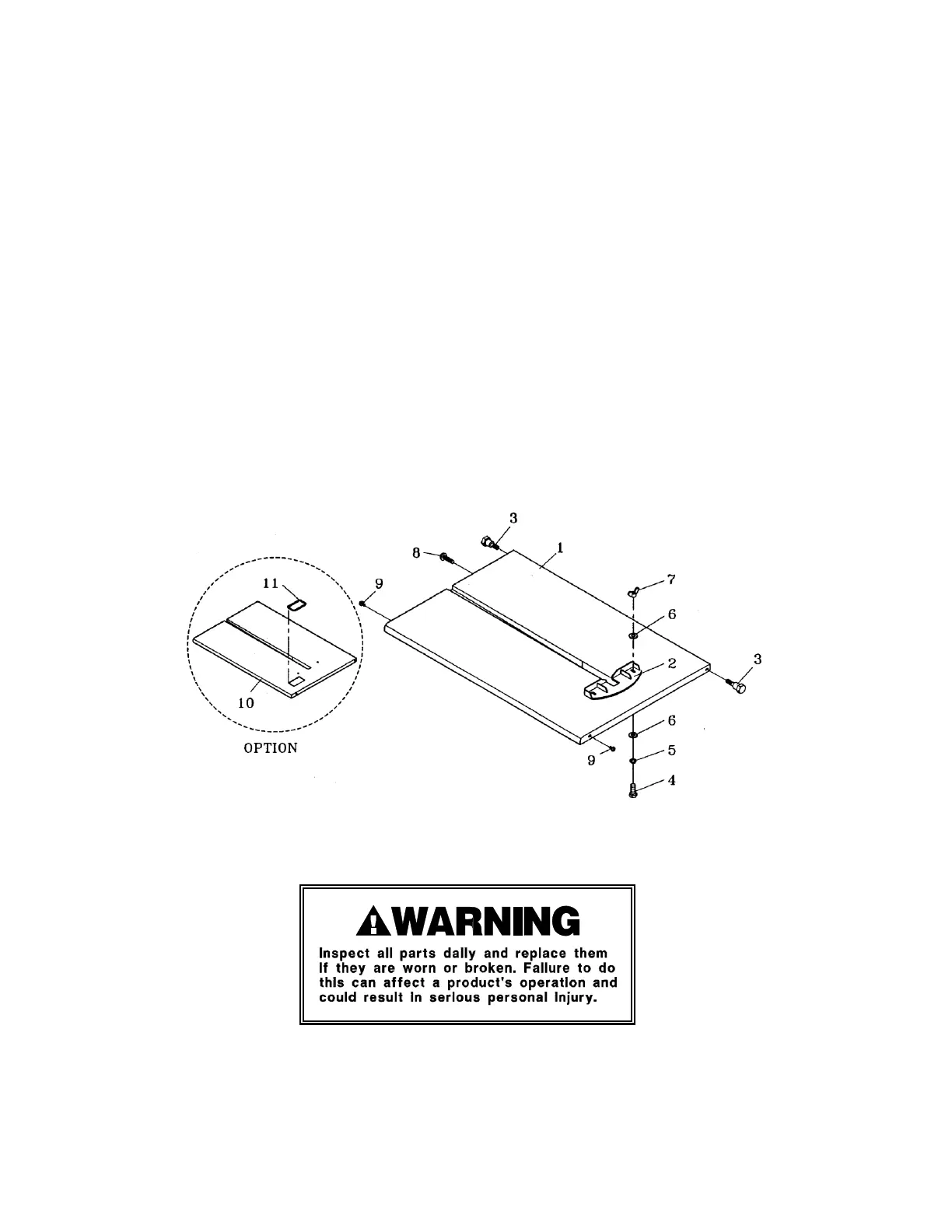

TOP PLATE ASSEMBLY
KEY
1
QTY
1
PART NO.
500685
DESCRIPTION
Top Plate
2
1
500686
Package Guide
3
2
500687
Shaft
4
2
500688
HBS M6x12
5
2
500508
SW,M6
6
4
500649
PW,M6
7
2
500689
WN, M6
8
1
500690
TMS, M6x8
9
2
500691
TMS, M5x8
10
1
500692
Top Plate (OPTION For with Readout)
11
1
500693
Grommet (OPTION For with Readout)
33
