Loss of type of connection/shielding
` If the torque of the mating connector is too low this will result in loss
of type of protection and/or shielding. Pay attention to the tightening
torque specified by the manufacturer.
` Using a torque wrench tighten the mating connector (see chapter 8.1,
8.2 and 8.3). Manufacturer's recommendation of a suitable torque can
be obtained on request. Tightening torque: 0.4Nm
` Tighten the mating connector using the torque-limiting wrench of the
relevant connector vendor.
If the use of the torque-limiting wrench is not possible due to the moun-
ting situation, execute electrical installation before mechanical installa-
tion.
4.1 Mechanical mounting
Position indicator failure
` When mounting pay attention to the IP type of protection (see chapter 9).
` Do not open the position indicator yourself (exception: see chapter 6).
` Avoid impact on the device.
` Do not modify the device in any way.
Mounting:
Fasten the device via the threaded holes on the rear on a level support.

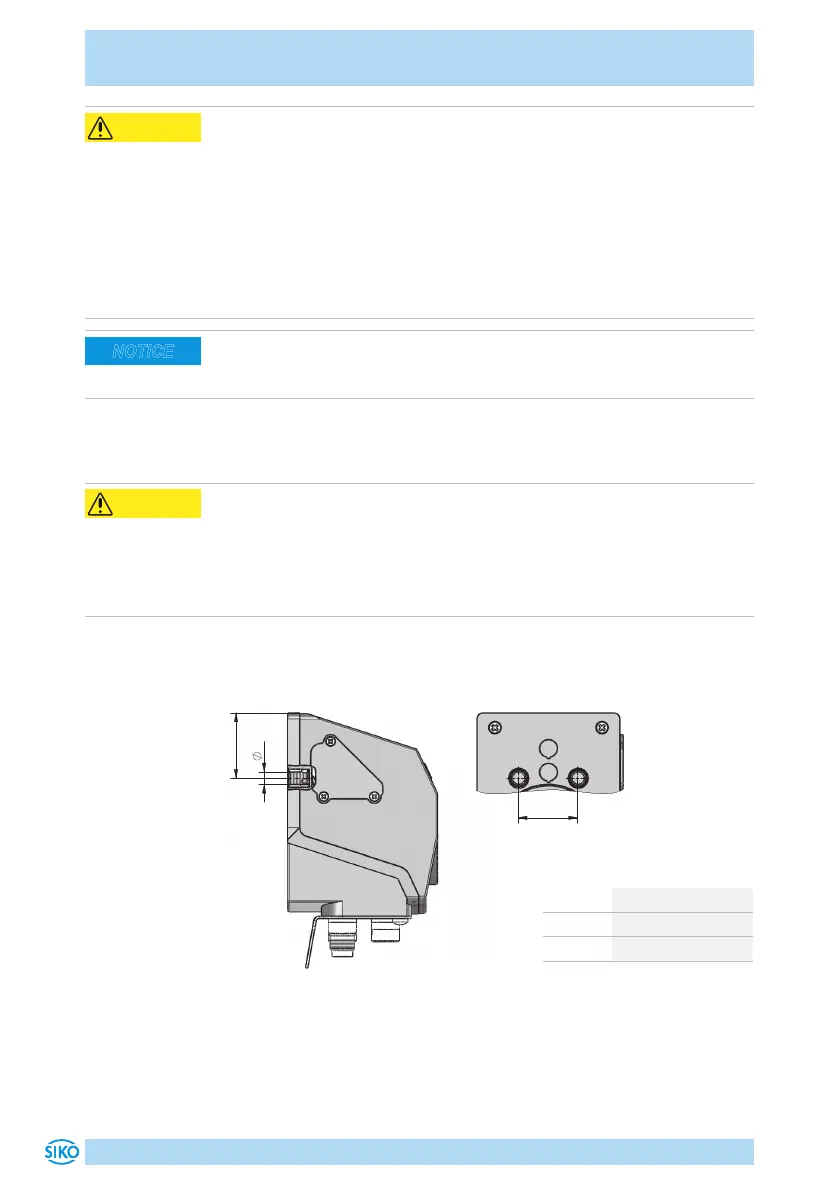

Fig. 1: Mounting dimensions
dim. ød 2x M5, 7mm deep
dim. L1 22
dim. L2 20 ±0.15
Tab. 1: Mounting dimensions
For mounting the sensor, please refer to the sensor documentation.
