Silca SBB - Working Parts; Device Components Identification

4 Copyright Silca 2006
SBB Operating Manual - English

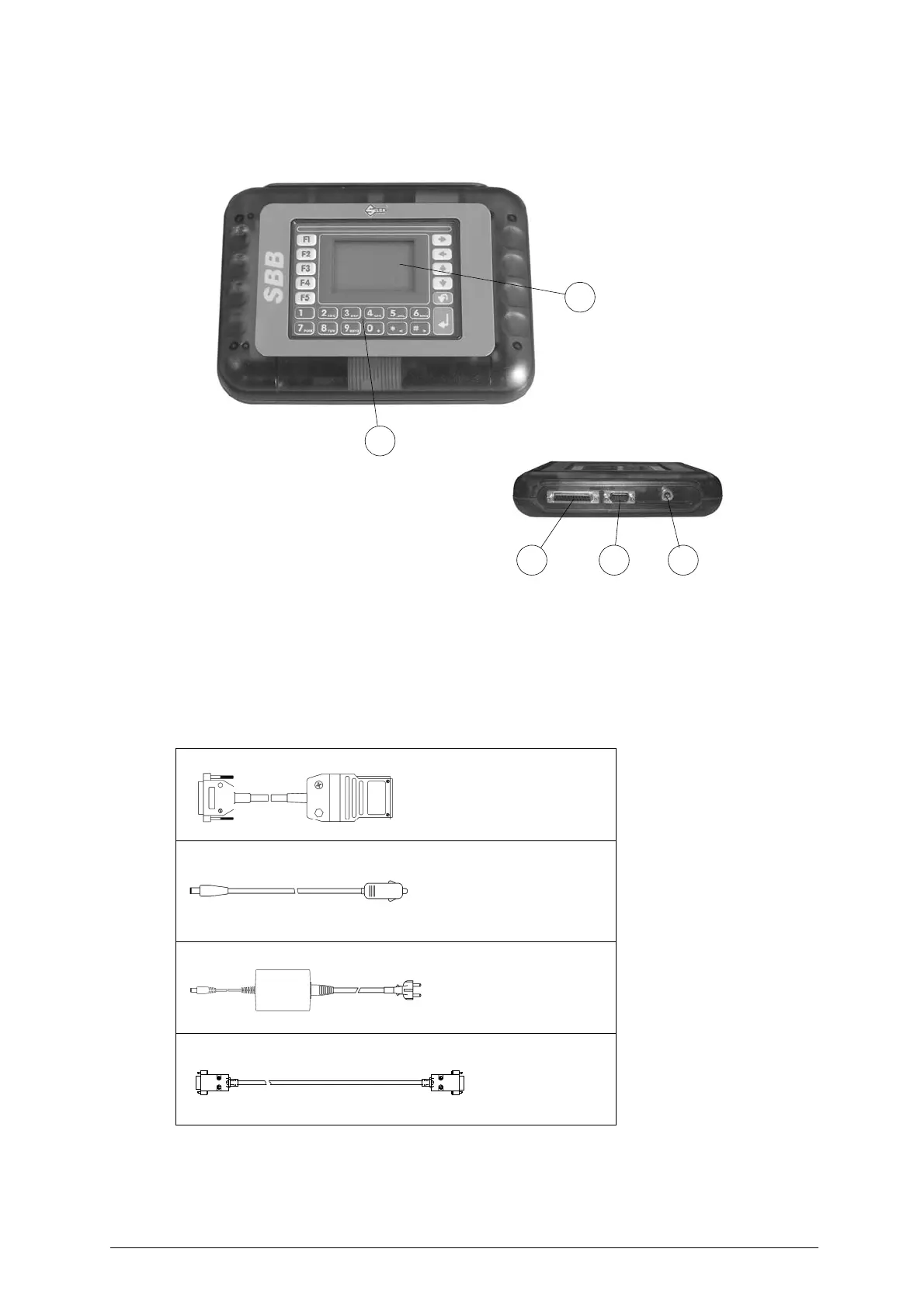

1.3 WORKING PARTS
Fig. 2
A - Retro illuminated LCD graphic display
B -
23-key keypad (numerical, functions, arrows, ESC, ENTER )
C - Parallel Port (25 Poles) to communicate with the vehicle
D - Serial Port RS232 (9 Poles) use only for Serial cable
E - Socket for cigarette lighter power cable or feeder
F - Standard OBD II cable
G - Cigarette lighter power
cable
H - Feeder
J - Serial cable
B
A
C D E
