5.6.2 SILENTWIND GENERATOR

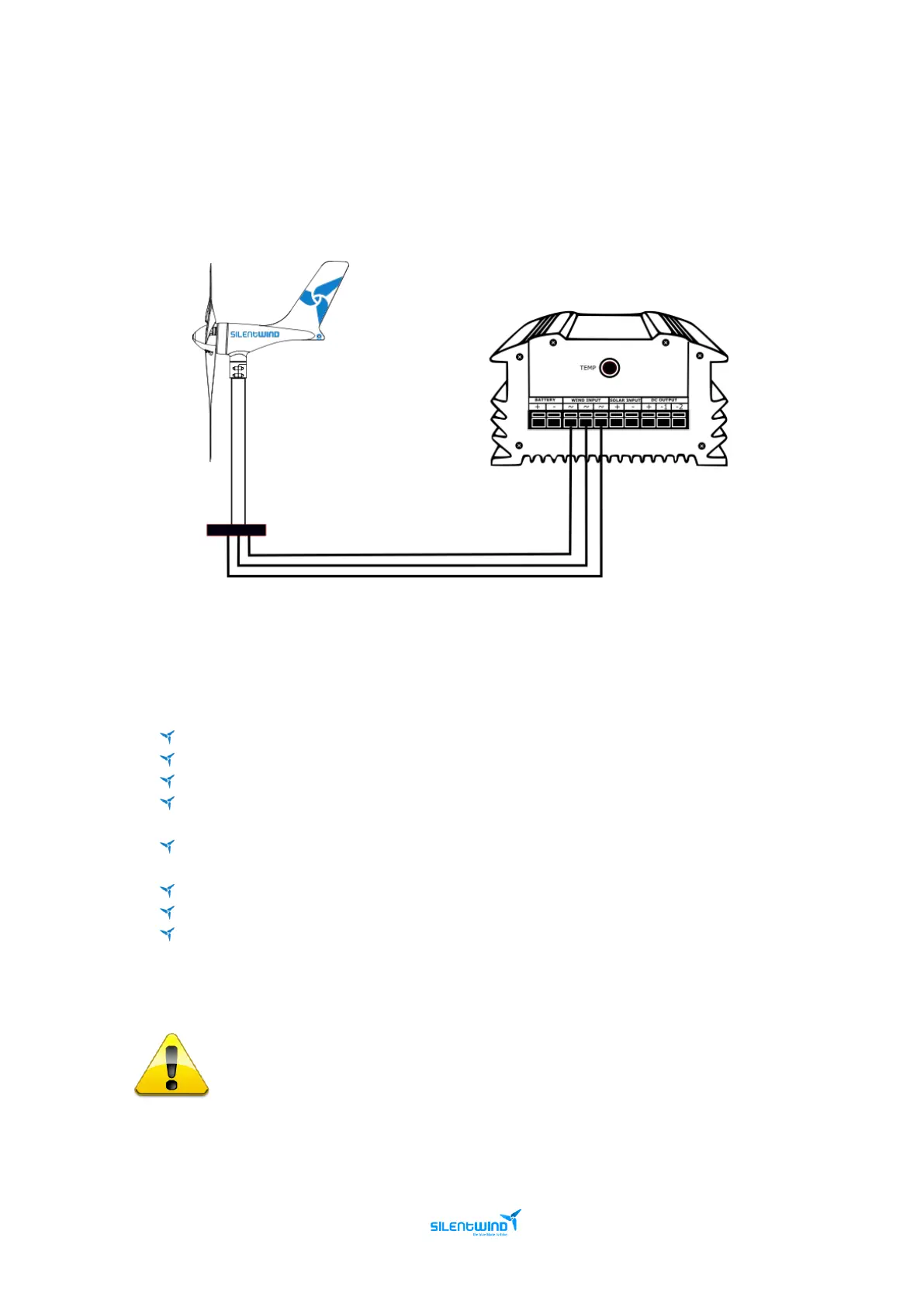

The 3 AC output wires must be connected to the 3-screw terminal on the back of the Hybrid Boost
Charge Controller. In a 3 phase AC system the connection order/polarity does not matter.
5.7 SETTINGS
The Hybrid Boost Charge Controller must be adjusted according the type of battery and according to
your individual requirements.
End of charge Voltage – Batteries maximum voltage.
Overvoltage – Load Output 1 and 2 Voltage protection.
Low Wind Boost – set the boost to achieve an earlier start of charging in to the batteries.
Storm Brake – Maximum amperage allowed. It will limit the maximum rpm speed and
prevents overheating.
Under Voltage Switch Off – To avoid fast discharging, below this value the Outputs are turned
Off.
Under Voltage Recovery On – Above this value, the Outputs are turned On.
Solar Switch Off – Above this value, it will turn the Outputs Off.
Solar Switch On – Below this value, it will turn the Outputs On.
The Break Adjustment of the Hybrid Boost Charge Controller generates internal rising
temperatures that are thermically detected. Therefore, the break time of the Silentwind
Generator will be increased in high wind speeds until the internal temperature is
reduced by dissipation. For this reason, the Hybrid Boost Charge Controller should be
installed on a place as cool as possible. Never install the controller at direct solar
radiation or sunlight.
