422348-Evolution ST350-Instruction manual-usa-rev01_AN
• Time is not editable in Blend mode for galvanic current. It was calculated judiciously in order
to produce the desired reaction of caustic soda production.
T => time / seconds: indicates the duration of the Thermolysis / Electrolysis wave
INT in %=> indicates the intensity of the HF energy wave.
UL => total energy of the electrolysis wave during the time period T / unit of caustic soda (CD).
INT in mA=> indicates the value of the galvanic current wave.

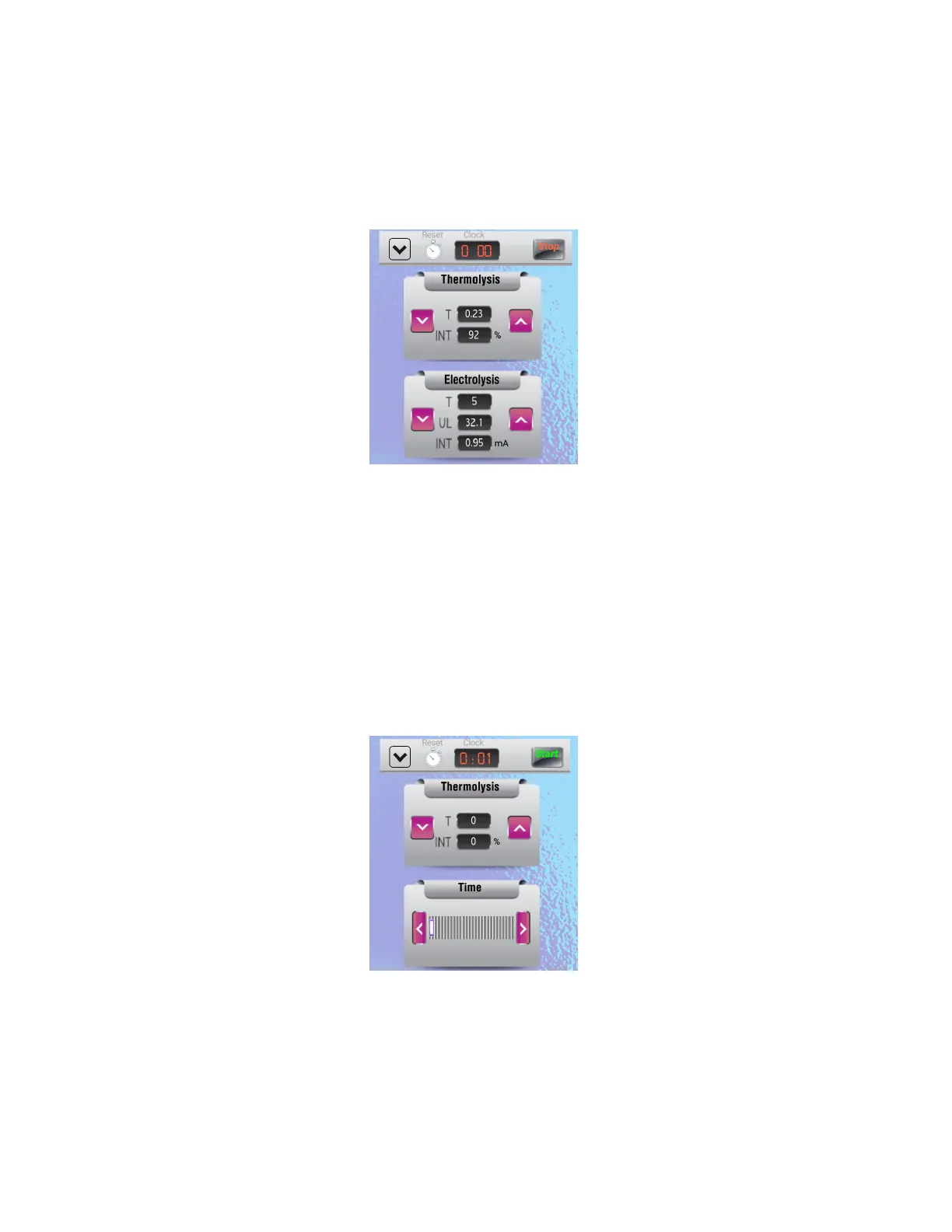

IN THERMOLYSE MODE
• The pink “Up / Down” arrows in the Thermolysis window are used to increase or decrease the intensity in%.
Changing processing parameters will affect the power
• The time is modifiable and allows to refine the settings to gain efficiency and adjust the parameters as closely as
possible for a personalized treatment.
T => time / seconds: indicates the duration of the Thermolysis / Electrolysis wave
INT in %=> indicates the intensity of the HF energy wave.
