04. Connecting accessories
CAUTION: Risk of electrical shock, do not remove back cover. Refer servicing to qualified service personnel.

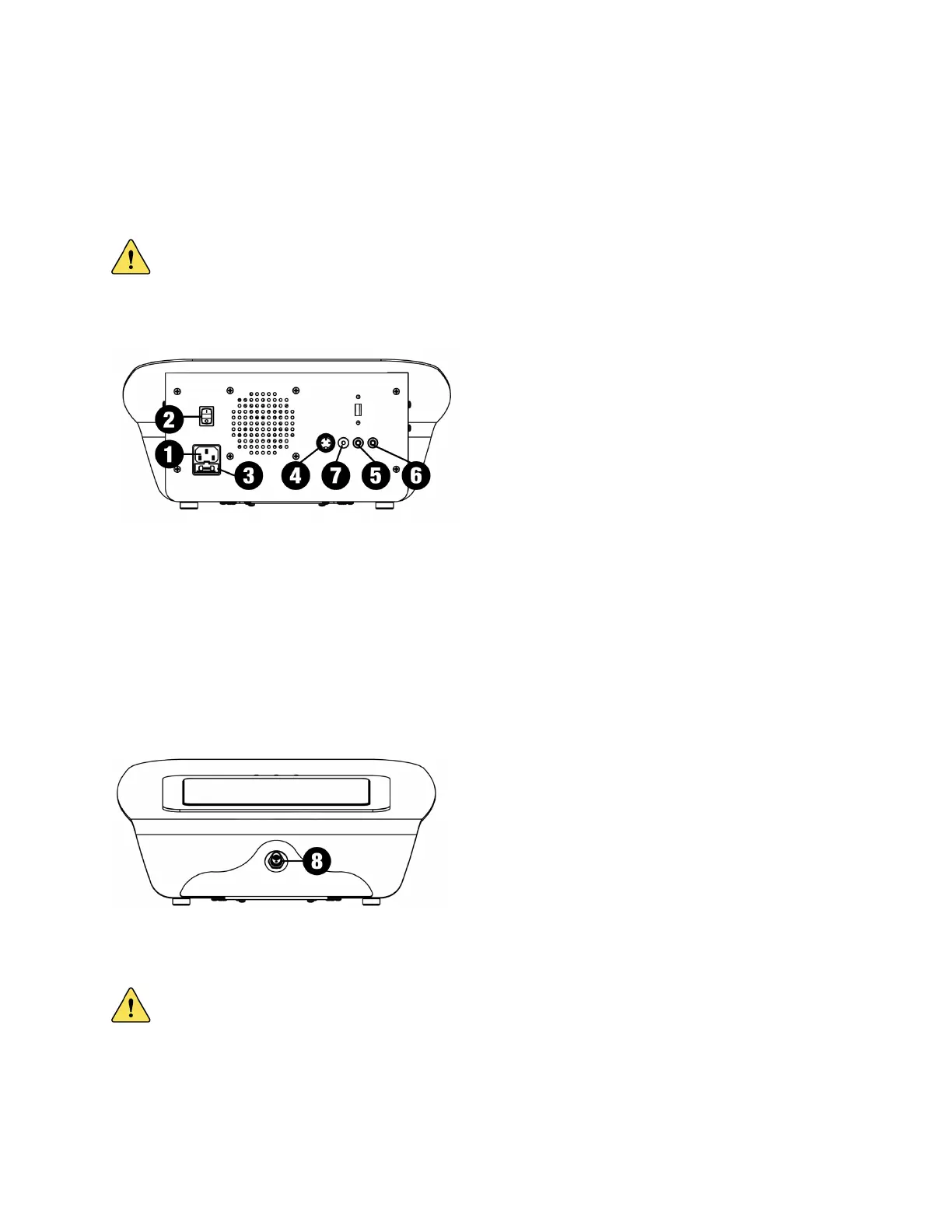

Back side:
1. Power outlet. 5. Soothing roller electrode (red)
2. ON / OFF switch. 6. Contact electrode outlet (small black outlet).
3. Fuse box. 7. Satellite 2 LEDs red & green (silver outlet).
4. Pedal outlet (big black outlet). 8. Probe Holder Connection
Front side:
8. Connexion des accessoires :
NOTE: Make sure that the ON / OFF switch is in the OFF position before connecting any
accessory.
