Silicon Graphics Octane III Component Replacement Guide

Disk Drive Replacement
007-5650-001 31
Disk Drive Replacement
Warning: Only personnel with extensive experience repairing server hardware should
attempt to replace or upgrade components inside an SGI Octane III deskside workstation
enclosure.
Up to eight disk drives can be mounted inside the tray; refer to Figure 1-10.

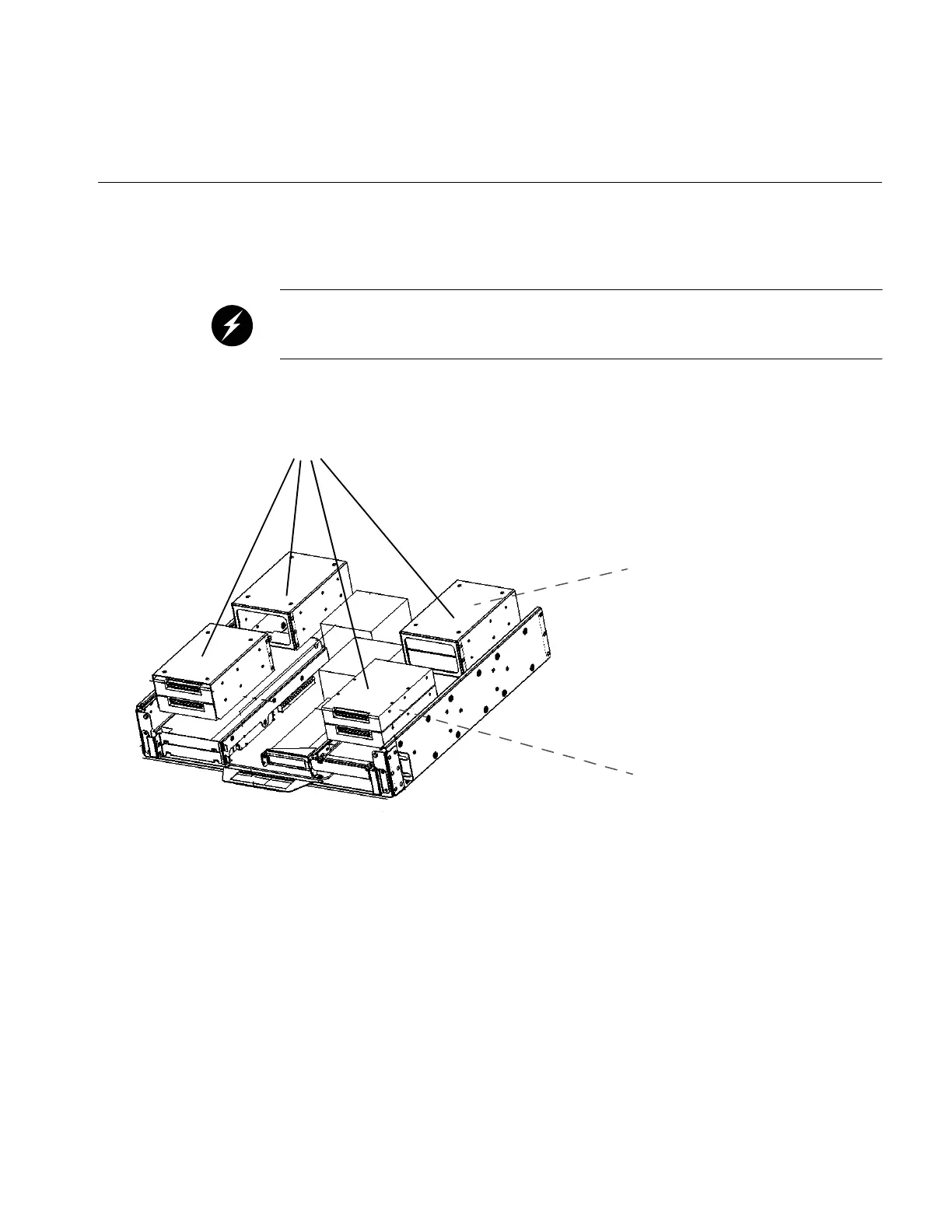

Figure 1-10 Disk Drive Locations and Mounting
Disk drive locations
Disk drives are mounted with up to
two drives in each bracket. If there is
only one drive installed in a bracket,
a filler panel is installed in the other
location to retain proper airflow.
Note: This bracket has been
removed from this illustration to show
how drives are positioned inside the
bracket.
